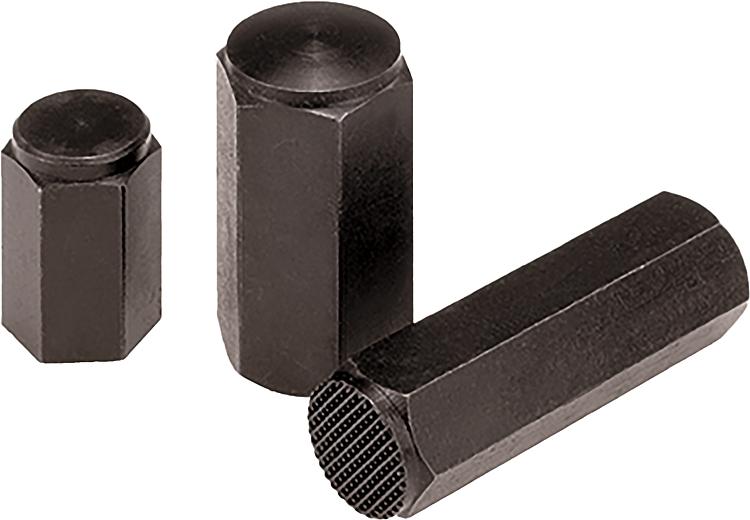

        Fixture feet with internal thread

Item description/product images

Show/filter all items

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:Fixture feet with internal thread are used as supports for fixtures or rough or machined workpieces. They can also be used as stops or thust pads in fixtures and toolmaking.Drawing reference:

Form A: Flat face hardened
Form B: Flat face hardened and ground
Form C: Spherical face hardened
Form D: Serrated face tempered

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02070 Fixture feet with internal thread

178 kB

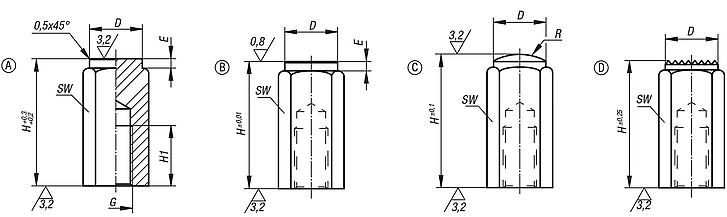

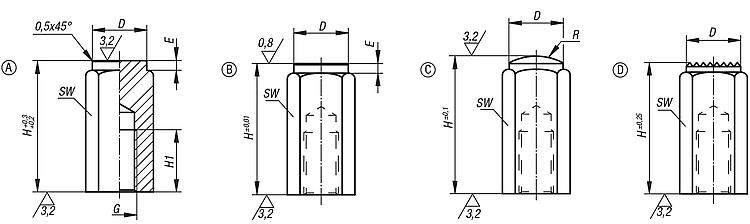

Drawings (total overview)

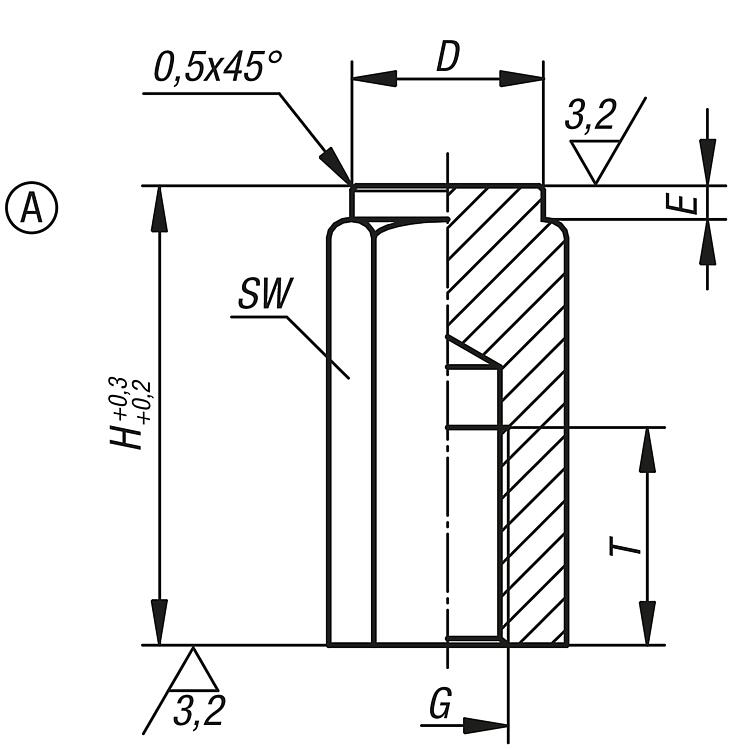

Fixture feet with internal thread, Form A hardened flat face

More information

Drawings

Fixture feet with internal thread, Form A hardened flat face

Item selection/filter

Order No.	Form	D	E	G	H	T	SW	Price
02070-106X20	A	9,5	2	M6	20	12	10	on request
02070-106X40	A	9,5	2	M6	40	12	10	on request
02070-110X32	A	16,5	3	M10	32	18	17	on request
02070-110X63	A	16,5	3	M10	63	18	17	on request
02070-112X32	A	18,5	3	M12	32	18	19	on request
02070-112X63	A	18,5	3	M12	63	18	19	on request
02070-116X50	A	23	4	M16	50	24	24	on request
02070-116X100	A	23	4	M16	100	24	24	on request

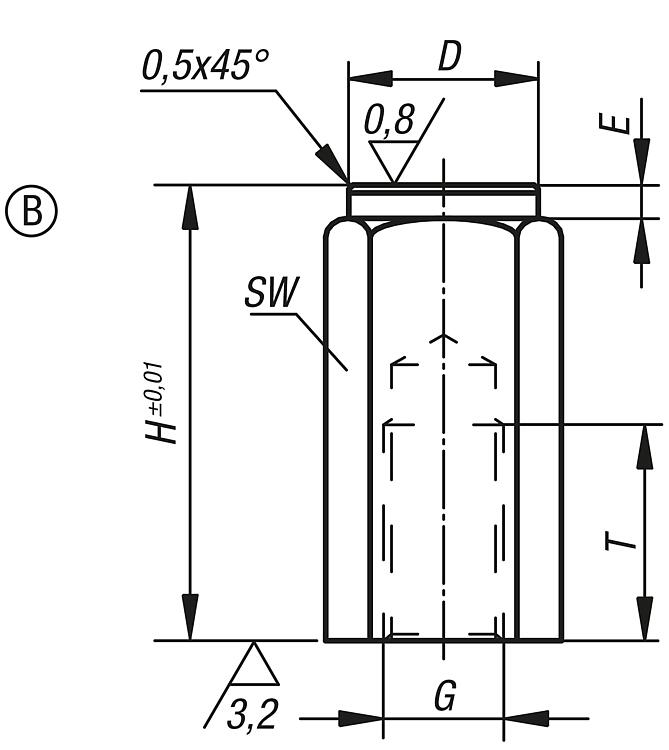

Fixture feet with internal thread, Form B flat face hardened and ground

More information

Drawings

Fixture feet with internal thread, Form B flat face hardened and ground

Item selection/filter

Order No.	Form	D	E	G	H	T	SW	Price
02070-206X20	B	9,5	2	M6	20	12	10	on request
02070-206X40	B	9,5	2	M6	40	12	10	on request
02070-210X32	B	16,5	3	M10	32	18	17	on request
02070-210X63	B	16,5	3	M10	63	18	17	on request
02070-212X32	B	18,5	3	M12	32	18	19	on request
02070-212X63	B	18,5	3	M12	63	18	19	on request
02070-216X50	B	23	4	M16	50	24	24	on request
02070-216X100	B	23	4	M16	100	24	24	on request

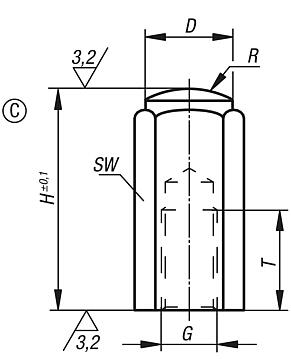

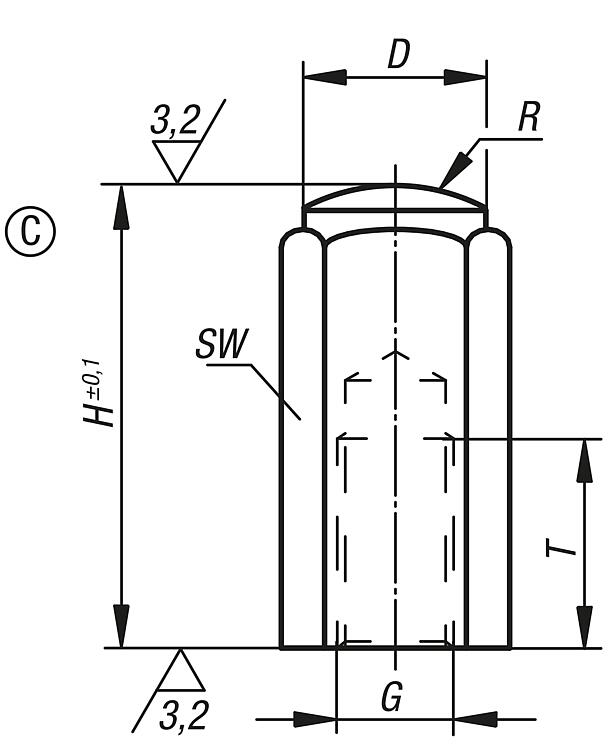

Fixture feet with internal thread, Form C hardened spherical face

More information

Drawings

Fixture feet with internal thread, Form C hardened spherical face

Item selection/filter

Order No.	Form	D	G	H	R	T	SW	Price
02070-306X20	C	9,5	M6	20	15	12	10	on request
02070-306X40	C	9,5	M6	40	15	12	10	on request
02070-310X32	C	16,5	M10	32	30	18	17	on request
02070-310X63	C	16,5	M10	63	30	18	17	on request
02070-312X32	C	18,5	M12	32	35	18	19	on request
02070-312X63	C	18,5	M12	63	35	18	19	on request
02070-316X50	C	23	M16	50	40	24	24	on request
02070-316X100	C	23	M16	100	40	24	24	on request

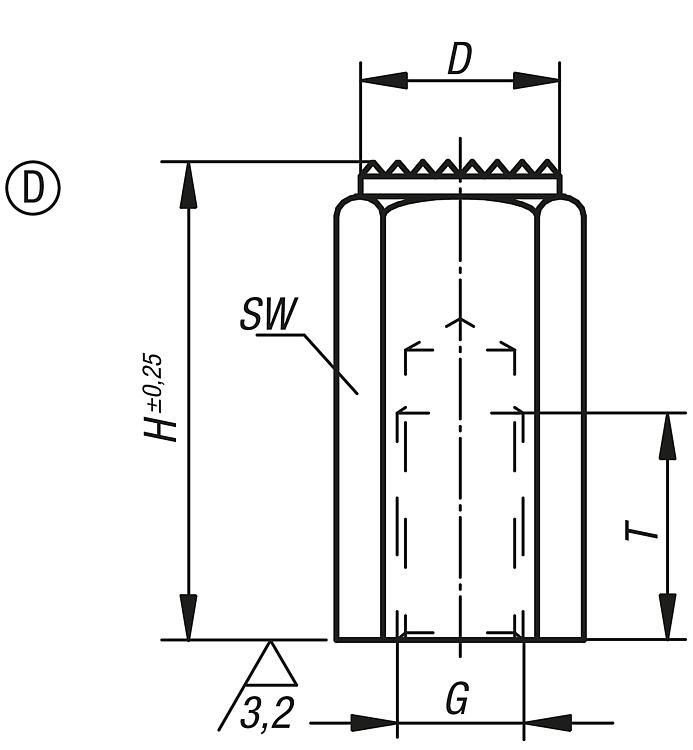

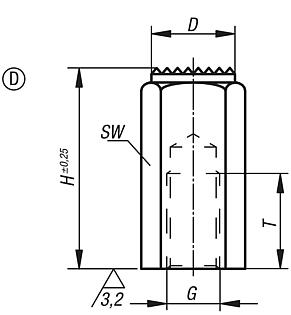

Fixture feet with internal thread, Form D serrated face tempered

More information

Drawings

Fixture feet with internal thread, Form D serrated face tempered

Item selection/filter

Order No.	Form	D	G	H	T	SW	Price
02070-406X20	D	9,5	M6	20	12	10	on request
02070-406X40	D	9,5	M6	40	12	10	on request
02070-410X32	D	16,5	M10	32	18	17	on request
02070-410X63	D	16,5	M10	63	18	17	on request
02070-412X32	D	18,5	M12	32	18	19	on request
02070-412X63	D	18,5	M12	63	18	19	on request
02070-416X50	D	23	M16	50	24	24	on request
02070-416X100	D	23	M16	100	24	24	on request
