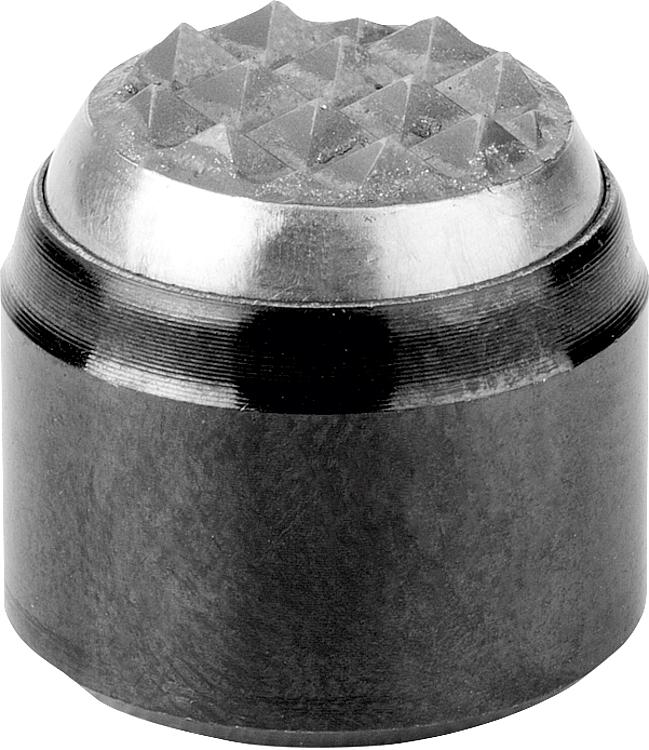

        Self-aligning pads, Form K, press fit, flattened ball, with carbide insert

Item description/product images

DescriptionMaterial:Body carbon steel,
ball 1.2067 ball-bearing steel,
insert carbide.Version:Body tempered and phosphated.
Ball hardened.Note:Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.

Ball secured against rotation.

* Valid only if the minimum bore depth is observed.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02000_K Self-aligning pads, Form K, press fit, flattened ball, with carbide insert

237 kB

Drawings

Item selection/filter

	K	12 18 28	M3 M4 M5	7,9 12,7 19,05	11 17 25	3 4 6	10 16 25	ø 12 H7X6 min. ø 18 H7X8 min. ø 28 H7X13 min.	10* 25* 90*				Reset
Order No.	Form	D1	D2	D3	H	T	Ball-Ø	Receiving hole	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
02000-803	K	12	M3	7,9	11	3	10	ø 12 H7X6 min.	10*			on request
02000-804	K	18	M4	12,7	17	4	16	ø 18 H7X8 min.	25*			on request
02000-805	K	28	M5	19,05	25	6	25	ø 28 H7X13 min.	90*			on request
