Self-aligning pads
 02000

Self-aligning pads

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Body carbon steel.
Ball, ball bearing steel 1.2067.
Form D: Ball with POM insert.
Form H: Ball with POM insert.
Form K: Ball with carbide insert.
Form M has a carbide ball.Version:Body tempered and phosphated.
Ball hardened.
Form M ball nickel plated.Note:Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.

Ball secured against rotation.

* Valid only if the minimum bore depth is observed.Drawing reference:

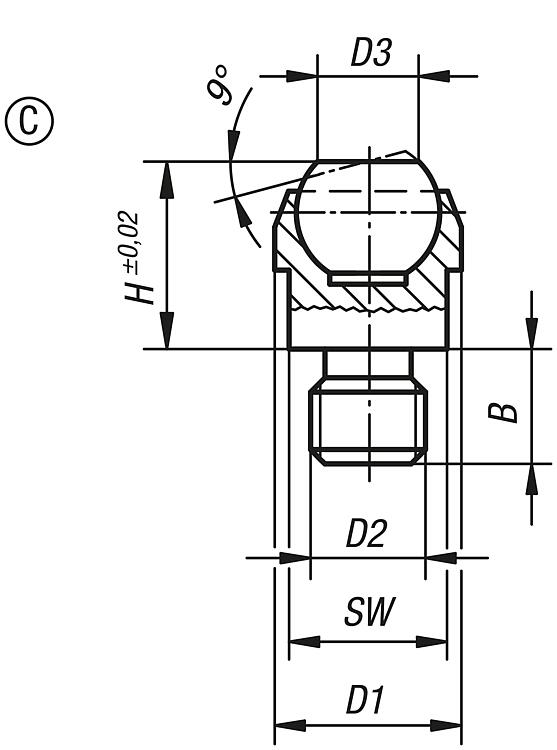

Form C: with external thread, flattened ball, smooth.

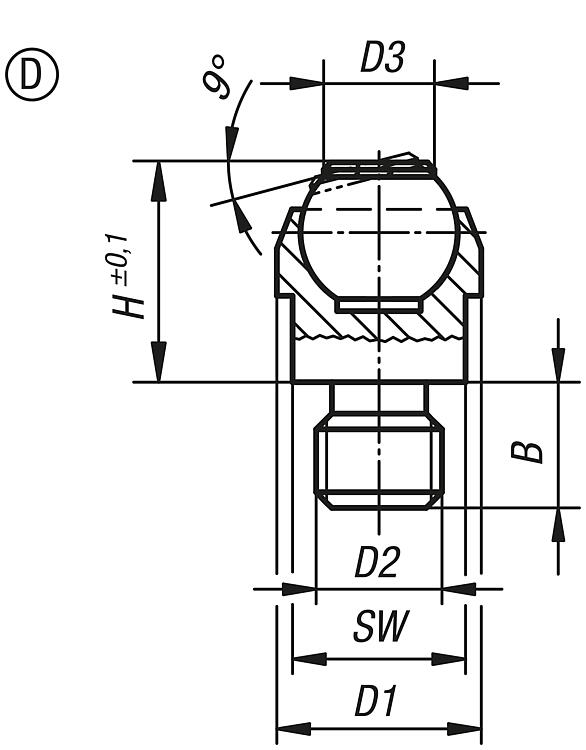

Form D: with external thread, flattened ball, with POM insert.

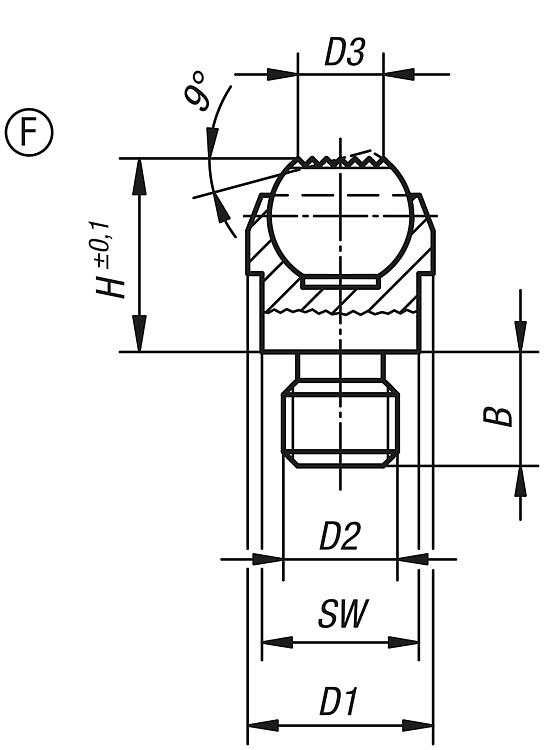

Form F: with external thread, flattened ball, diamond grip.

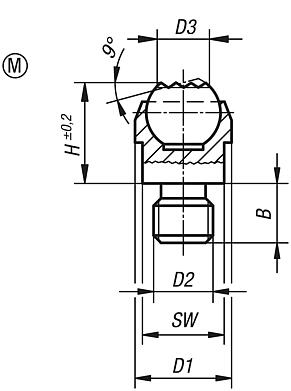

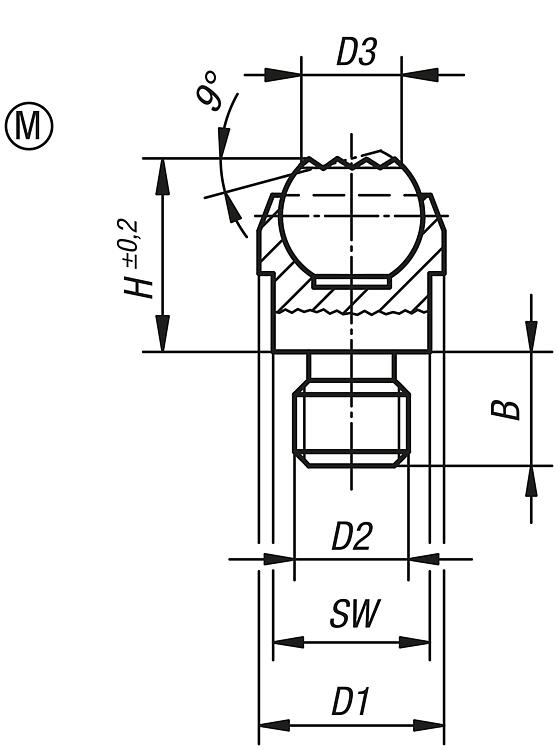

Form M: with external thread, flattened ball, with carbide insert.

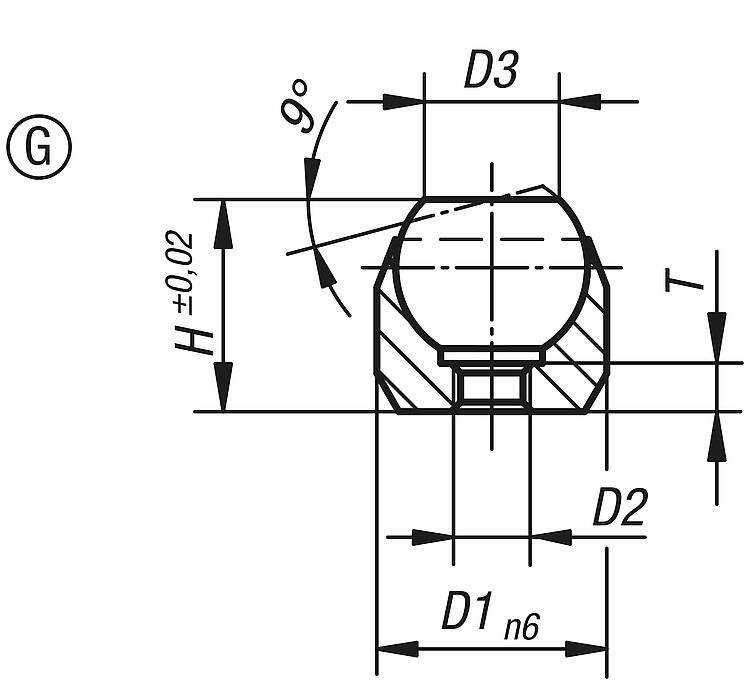

Form G: press fit, flattened ball, smooth.

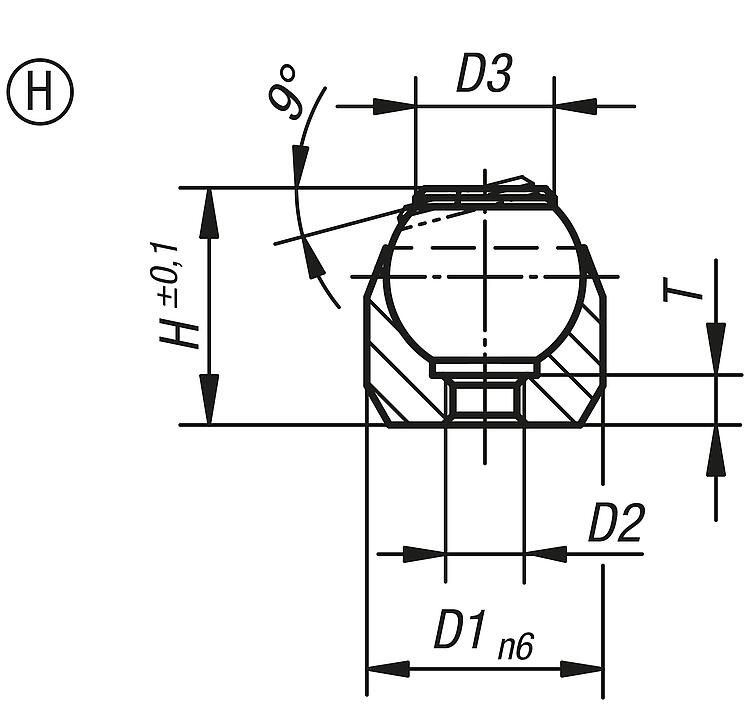

Form H: press fit, flattened ball, with POM insert.

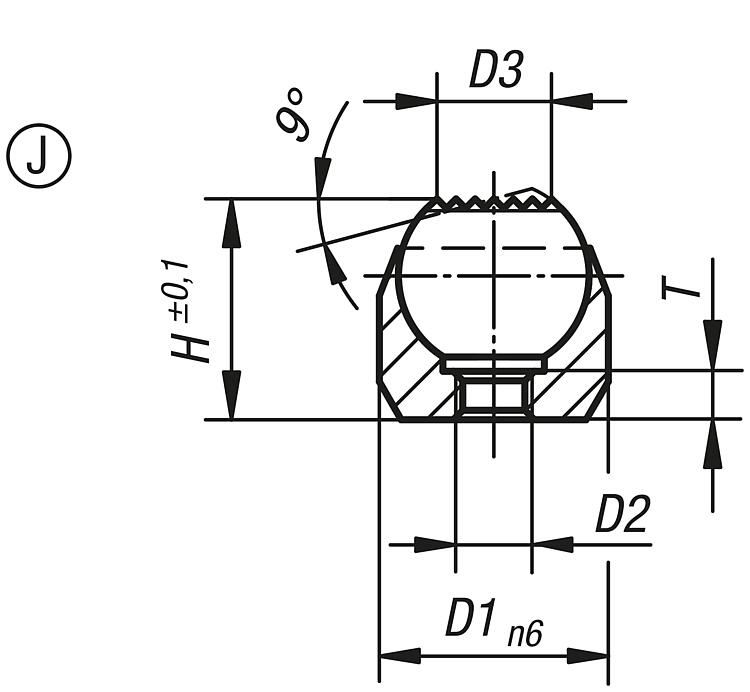

Form J: press fit, flattened ball, diamond grip.

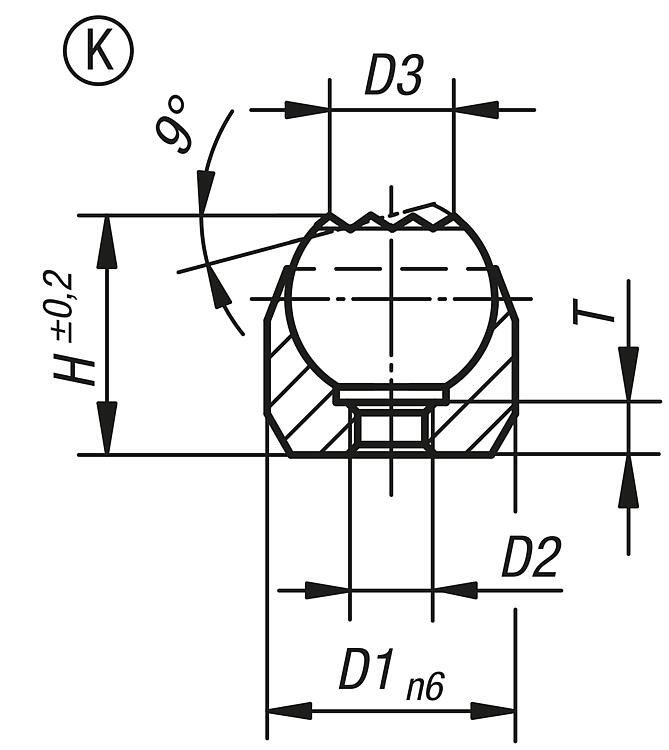

Form K: press fit, flattened ball, with carbide insert.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 02000 Self-aligning pads 328 kB

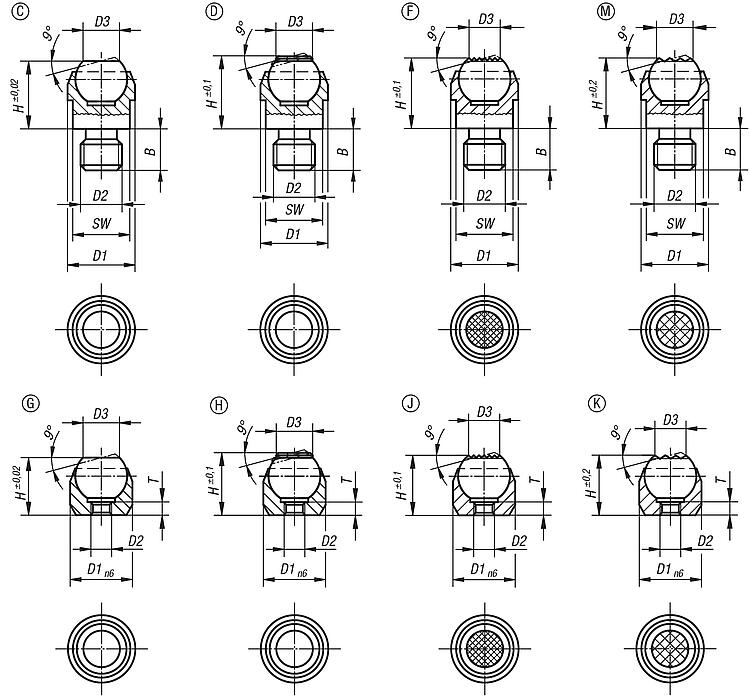

Drawings (total overview)

Self-aligning pads

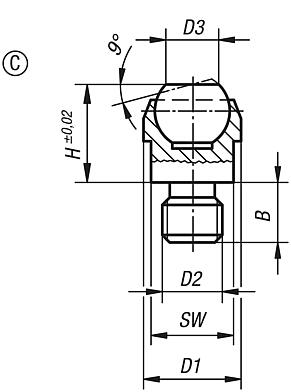

Self-aligning pads, Form C, with external thread, flattened ball, smooth

 More information

Drawings
Self-aligning pads, Form C, with external thread, flattened ball, smooth

Item selection/filter


  •
  • C

  •
  • 8
  • 10
  • 12
  • 16
  • 20

  •
  • 13
  • 20
  • 30
  • 50

  •
  • M8
  • M10
  • M12
  • M16
  • M20

  •
  • 7,2
  • 10,5
  • 20
  • 34,5

  •
  • 13
  • 18
  • 27
  • 35

  •
  • 10
  • 16
  • 25
  • 40

  •
  • 11
  • 17
  • 27
  • 41

  •
  • 10
  • 25
  • 90
  • 165

Reset
Order No.

FormBD1D2D3HBall-ØSWLoad rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-108C813M87,213101110  on request
02000-110C1020M1010,518161725  on request
02000-112C1220M1210,518161725  on request
02000-116C1630M162027252790  on request
02000-120C2050M2034,5354041165  on request

Self-aligning pads, Form D, with external thread, flattened ball, with POM insert

 More information

Drawings

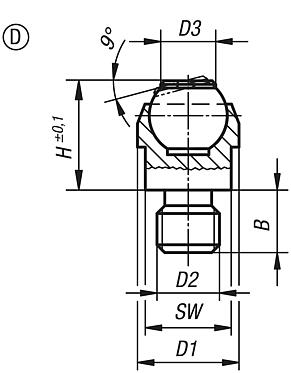

Self-aligning pads, Form D, with external thread, flattened ball, with POM insert

Item selection/filter


  •
  • D

  •
  • 8
  • 10
  • 12

  •
  • 13
  • 20

  •
  • M8
  • M10
  • M12

  •
  • 7,9
  • 12,7

  •
  • 13
  • 18

  •
  • 10
  • 16

  •
  • 11
  • 17

  •
  • 10
  • 25

Reset
Order No.

FormBD1D2D3HBall-ØSWLoad rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-208D813M87,913101110  on request
02000-210D1020M1012,718161725  on request
02000-212D1220M1212,718161725  on request

Self-aligning pads, Form F, with external thread, flattened ball, diamond grip

 More information

Drawings
Self-aligning pads, Form F, with external thread, flattened ball, diamond grip

Item selection/filter


  •
  • F

  •
  • 8
  • 10
  • 12
  • 16
  • 20

  •
  • 13
  • 20
  • 30
  • 50

  •
  • M8
  • M10
  • M12
  • M16
  • M20

  •
  • 7,2
  • 10,5
  • 20
  • 34,5

  •
  • 13
  • 18
  • 27
  • 35

  •
  • 10
  • 16
  • 25
  • 40

  •
  • 11
  • 17
  • 27
  • 41

  •
  • 10
  • 25
  • 90
  • 165

Reset
Order No.FormBD1D2D3HBall-ØSWLoad rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-308F813M87,213101110  on request
02000-310F1020M1010,518161725  on request
02000-312F1220M1210,518161725  on request
02000-316F1630M162027252790  on request
02000-320F2050M2034,5354041165  on request

Self-aligning pads, Form M, with external thread, flattened ball, diamond grip

 More information

Drawings
Self-aligning pads, Form M, with external thread, flattened ball, diamond grip

Item selection/filter


  •
  • M

  •
  • 8
  • 10
  • 12

  •
  • 13
  • 20

  •
  • M8
  • M10
  • M12

  •
  • 7,7
  • 12

  •
  • 13,3
  • 18

  •
  • 10
  • 16

  •
  • 11
  • 17

  •
  • 10
  • 25

Reset
Order No.FormBD1D2D3HBall-ØSWLoad rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-908M813M87,713,3101110  on request
02000-910M1020M101218161725  on request
02000-912M1220M121218161725  on request

Self-aligning pads, Form G, press fit, flattened ball, smooth face

 More information

Drawings
Self-aligning pads, Form G, press fit, flattened ball, smooth face

Item selection/filter


  •
  • G

  •
  • 12
  • 18
  • 28

  •
  • M3
  • M4
  • M5

  •
  • 7,2
  • 10,5
  • 20

  •
  • 11
  • 17
  • 25

  •
  • 3,5
  • 4,4
  • 6,3

  •
  • 10
  • 16
  • 25

  •
  • ø 12 H7X6 min.
  • ø 18 H7X8 min.
  • ø 28 H7X13 min.

  •
  • 10*
  • 25*
  • 90*

Reset
Order No.FormD1D2D3HTBall-ØReceiving
hole		Load rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-403G12M37,2113,510ø 12 H7X6 min.10*  on request
02000-404G18M410,5174,416ø 18 H7X8 min.25*  on request
02000-405G28M520256,325ø 28 H7X13 min.90*  on request

Self-aligning pads, Form H, press fit, flattened ball, with POM insert

 More information

Drawings
Self-aligning pads, Form H, press fit, flattened ball, with POM insert

Item selection/filter


  •
  • H

  •
  • 12
  • 18
  • 28

  •
  • M3
  • M4
  • M5

  •
  • 7,9
  • 12,7
  • 19,05

  •
  • 11
  • 17
  • 25

  •
  • 3
  • 4
  • 6

  •
  • 10
  • 16
  • 25

  •
  • ø 12 H7X6 min.
  • ø 18 H7X8 min.
  • ø 28 H7X13 min.

  •
  • 10*
  • 25*
  • 90*

Reset
Order No.FormD1D2D3HTBall-ØReceiving
hole		Load rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-503H12M37,911310ø 12 H7X6 min.10*  on request
02000-504H18M412,717416ø 18 H7X8 min.25*  on request
02000-505H28M519,0525625ø 28 H7X13 min.90*  on request

Self-aligning pads, Form J, press fit, flattened ball, diamond grip

 More information

Drawings
Self-aligning pads, Form J, press fit, flattened ball, diamond grip

Item selection/filter


  •
  • J

  •
  • 12
  • 18
  • 28

  •
  • M3
  • M4
  • M5

  •
  • 7,2
  • 10,5
  • 20

  •
  • 11
  • 17
  • 25

  •
  • 3,5
  • 4,4
  • 6,3

  •
  • 10
  • 16
  • 25

  •
  • ø 12 H7X6 min.
  • ø 18 H7X8 min.
  • ø 28 H7X13 min.

  •
  • 10*
  • 25*
  • 90*

Reset
Order No.FormD1D2D3HTBall-ØReceiving
hole		Load rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-603J12M37,2113,510ø 12 H7X6 min.10*  on request
02000-604J18M410,5174,416ø 18 H7X8 min.25*  on request
02000-605J28M520256,325ø 28 H7X13 min.90*  on request

Self-aligning pads, Form K, press fit, flattened ball, with carbide insert

 More information

Drawings
Self-aligning pads, Form K, press fit, flattened ball, with carbide insert

Item selection/filter


  •
  • K

  •
  • 12
  • 18
  • 28

  •
  • M3
  • M4
  • M5

  •
  • 7,9
  • 12,7
  • 19,05

  •
  • 11
  • 17
  • 25

  •
  • 3
  • 4
  • 6

  •
  • 10
  • 16
  • 25

  •
  • ø 12 H7X6 min.
  • ø 18 H7X8 min.
  • ø 28 H7X13 min.

  •
  • 10*
  • 25*
  • 90*

Reset
Order No.FormD1D2D3HTBall-ØReceiving
hole		Load rating
max. kN
(static load only)		CADAcc.PriceOrder
02000-803K12M37,911310ø 12 H7X6 min.10*  on request
02000-804K18M412,717416ø 18 H7X8 min.25*  on request
02000-805K28M519,0525625ø 28 H7X13 min.90*  on request
