02006Self-aligning pads adjustable with O-ring |
go back |
|
|
DescriptionMaterial:Body carbon steel.
Ball:
Form C, F, tool steel.
Form K POM.
Form O stainless steel diamond impregnated.
Form P stainless steel with polyurethane surface.Version:Body tempered, black oxidised.
Ball:
Form C, F hardened, black oxidised.
Form K POM ball, white.
Form O surface comparable to 100 grade abrasive grit.
Form P polyurethane, hardness 60 Shore.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.
Form O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.
Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolour.
It offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.Drawing reference:Form C: flattened steel ball, smooth
Form F: flattened steel ball, with serrations
Form K: POM ball, flattened, smooth
Form O: stainless steel ball diamond impregnated
Form P: stainless steel ball with polyurethane surface DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

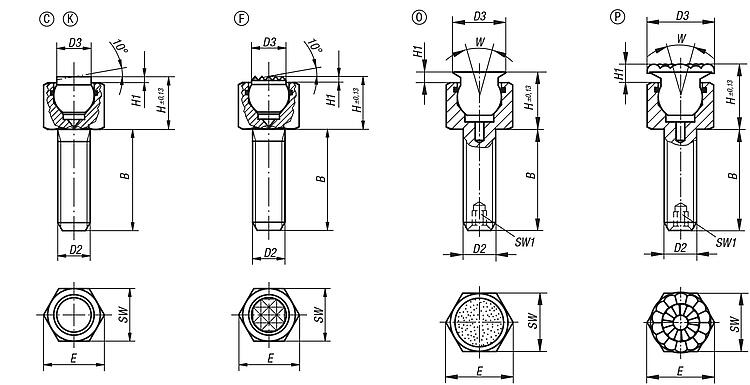

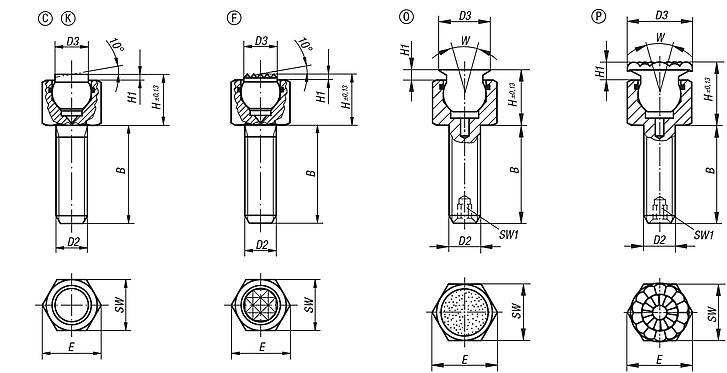

Drawings (total overview) |
Self-aligning pads, adjustable, with O-ring, Form C, flattened steel ball smooth |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 02006-106X012 | C | 12 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 |  | | on request | | | 02006-106X025 | C | 25 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | on request | | | 02006-106X040 | C | 40 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | on request | | | 02006-108X012 | C | 12 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | on request | | | 02006-108X025 | C | 25 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | on request | | | 02006-108X040 | C | 40 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | on request | |
|

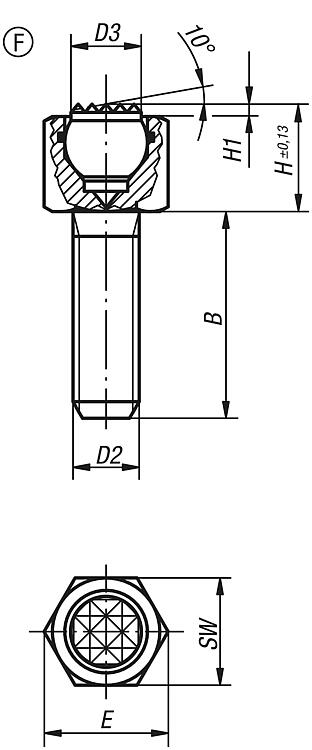

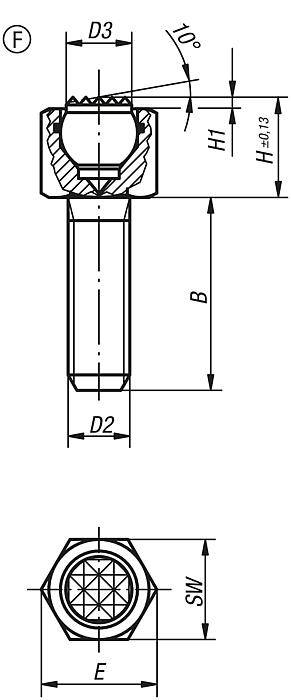

Self-aligning pads, adjustable, with O-ring, Form F, flattened steel ball with diamond grip |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 02006-306X012 | F | 12 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | on request | | | 02006-306X025 | F | 25 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | on request | | | 02006-306X040 | F | 40 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | on request | | | 02006-308X012 | F | 12 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | on request | | | 02006-308X025 | F | 25 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | on request | | | 02006-308X040 | F | 40 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | on request | |
|

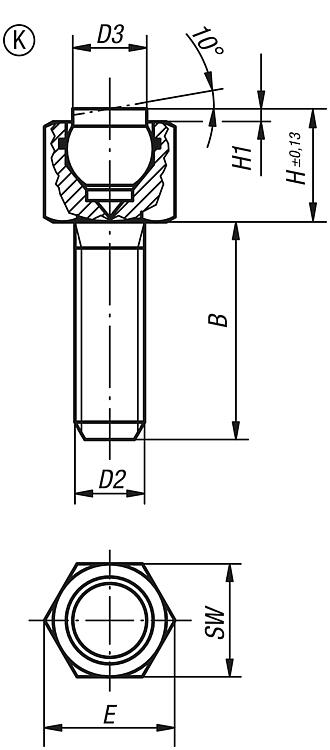

Self-aligning pads, adjustable, with O-ring, Form K, flattened POM ball smooth |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 02006-706X012 | K | 12 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 2 | | | on request | | | 02006-706X025 | K | 25 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 2 | | | on request | | | 02006-706X040 | K | 40 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 2 | | | on request | | | 02006-708X012 | K | 12 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 4 | | | on request | | | 02006-708X025 | K | 25 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 4 | | | on request | | | 02006-708X040 | K | 40 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 4 | | | on request | |
|

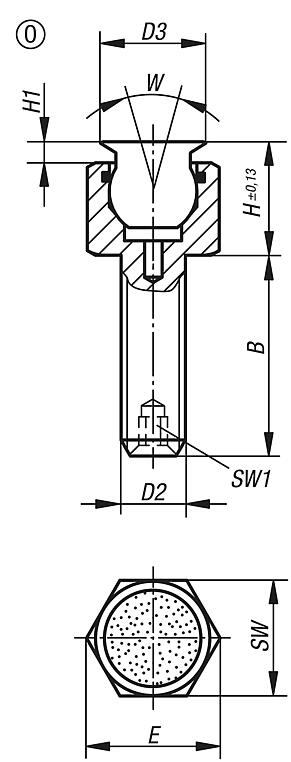

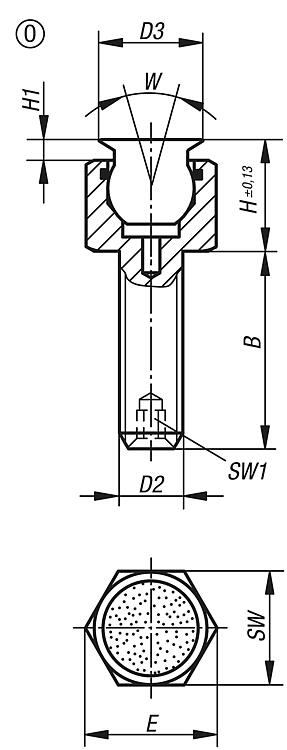

Self-aligning pads, adjustable with O-ring, Form O, stainless steel ball with diamond impregnated face |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 02006-506X012 | O | 12 | M6 | 8 | 10 | 2 | 11,5 | 10 | 7 | 9,2 | | | on request | | | 02006-506X025 | O | 25 | M6 | 8 | 10 | 2 | 11,5 | 10 | 7 | 9,2 | | | on request | | | 02006-506X040 | O | 40 | M6 | 8 | 10 | 2 | 11,5 | 10 | 7 | 9,2 | | | on request | | | 02006-508X012 | O | 12 | M8 | 11 | 14,5 | 3 | 15 | 13 | 10 | 15,5 | | | on request | | | 02006-508X025 | O | 25 | M8 | 11 | 14,5 | 3 | 15 | 13 | 10 | 15,5 | | | on request | | | 02006-508X040 | O | 40 | M8 | 11 | 14,5 | 3 | 15 | 13 | 10 | 15,5 | | | on request | | | 02006-510X015 | O | 15 | M10 | 14 | 16 | 3 | 19,6 | 17 | 13 | 18,8 | | | on request | | | 02006-510X030 | O | 30 | M10 | 14 | 16 | 3 | 19,6 | 17 | 13 | 18,8 | | | on request | | | 02006-510X050 | O | 50 | M10 | 14 | 16 | 3 | 19,6 | 17 | 13 | 18,8 | | | on request | | | 02006-512X020 | O | 20 | M12 | 19 | 19 | 4 | 21,9 | 19 | 15 | 29,8 | | | on request | | | 02006-512X040 | O | 40 | M12 | 19 | 19 | 4 | 21,9 | 19 | 15 | 29,8 | | | on request | | | 02006-512X060 | O | 60 | M12 | 19 | 19 | 4 | 21,9 | 19 | 15 | 29,8 | | | on request | | | 02006-516X025 | O | 25 | M16 | 21 | 23 | 4 | 27,7 | 24 | 20 | 50,3 | | | on request | | | 02006-516X050 | O | 50 | M16 | 21 | 23 | 4 | 27,7 | 24 | 20 | 50,3 | | | on request | | | 02006-516X080 | O | 80 | M16 | 21 | 23 | 4 | 27,7 | 24 | 20 | 50,3 | | | on request | |
|

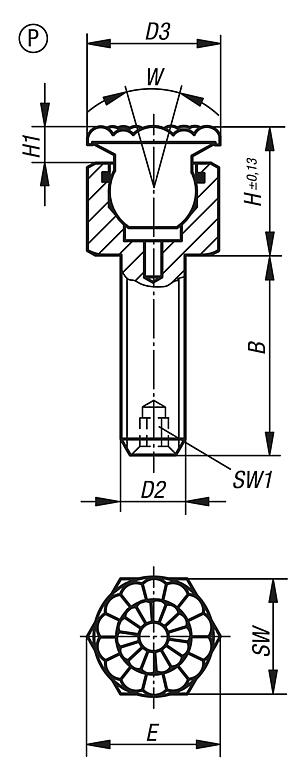

Self-aligning pads, adjustable, with O-ring, Form P, stainless steel ball with polyurethane face |
More information |
| Order No. | Form
| B | D2 | D3 | H | H1 | E | SW | SW1 | W | Ball-Ø | CAD | Acc. | Price | Order |
|---|
| 02006-606X012 | P | 12 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | on request | | | 02006-606X025 | P | 25 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | on request | | | 02006-606X040 | P | 40 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | on request | | | 02006-608X012 | P | 12 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | on request | | | 02006-608X025 | P | 25 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | on request | | | 02006-608X040 | P | 40 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | on request | | | 02006-610X015 | P | 15 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | on request | | | 02006-610X030 | P | 30 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | on request | | | 02006-610X050 | P | 50 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | on request | | | 02006-612X020 | P | 20 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | on request | | | 02006-612X040 | P | 40 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | on request | | | 02006-612X060 | P | 60 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | on request | | | 02006-616X025 | P | 25 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | on request | | | 02006-616X050 | P | 50 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | on request | | | 02006-616X080 | P | 80 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | on request | |
|
