Self-aligning pads with O-ring and exchangeable inserts

go back

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Self-aligning pads
        Self-aligning pads with O-ring and exchangeable inserts

Item description/product images

Show/filter all items

DescriptionMaterial:Body carbon steel.
Ball rust and acid resistant steel.
Inserts:
Form C, F, M tool steel
Form K POM
Form E stainless steel.
Form O stainless steel diamond impregnated.
Form P stainless steel with polyurethane surface.Version:Body tempered, black oxidised.
Ball hardened, bright.
Inserts:
Form C, F hardened, black oxidised.
Form M with carbide serrations, black oxidised.
Form K white.
Form E hardened, bright.
Form O diamond impregnated surface comparable to 100 grade abrasive grit.
Form P polyurethane surface, hardness 60 Shore.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
In addition, they serve as stops, supports and thrust pads in fixtures and toolmaking.
The ball can be removed from the housing by applying light pressure to the socket head screw.

Ball secured against rotation.Advantages:Highly cost-effective as inserts can be exchanged.
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.Drawing reference:

Form C: flattened steel insert, smooth
Form E: flattened stainless steel insert, smooth
Form F: gripper face
Form K: flattened POM insert, smooth
Form M: gripper face, with carbide serrations
Form O: stainless steel insert diamond impregnated
Form P: stainless steel insert with polyurethane surface

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02003 Self-aligning pads with O-ring and exchangeable inserts

701 kB

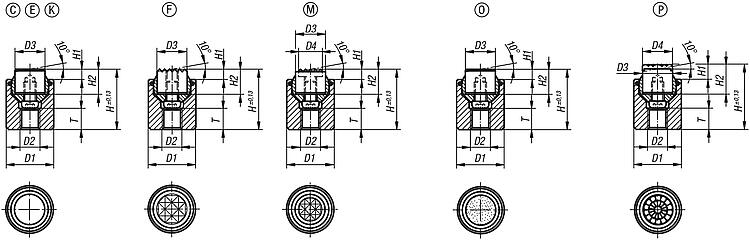

Drawings (total overview)

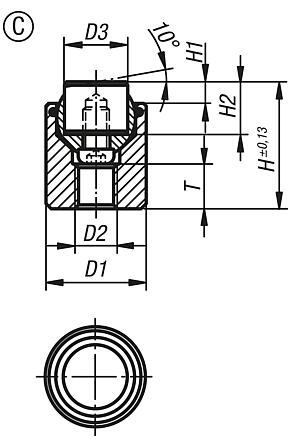

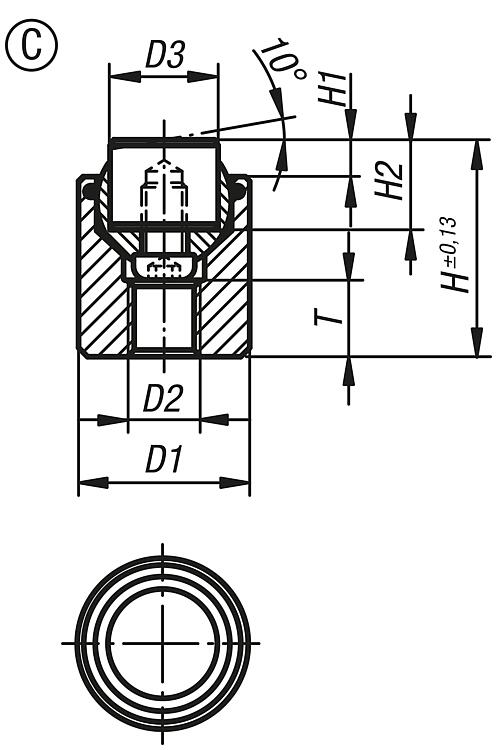

Self-aligning pads with O-ring and exchangeable inserts, Form C, flattened steel insert smooth

More information

Drawings

Self-aligning pads with O-ring and exchangeable inserts, Form C, flattened steel insert smooth

Item selection/filter

Order No.	Form	D1	D2	D3	H	H1	H2	T	Ball-Ø	Load rating max. kN (static load only)	Order No. steel insert	Price
02003-117X022	C	17	M6	10	22	4	10	7	13	28	07113-10108	on request
02003-119X024	C	19	M8	12	24	4	10	8	15	39	07113-12108	on request
02003-124X028	C	24	M10	16	28	4	10	8	20	58	07113-16108	on request
02003-130X030	C	30	M12	20	30	4	10	9	23	95	07113-20108	on request
02003-136X036	C	36	M12	25	36	4	10	11	28	136	07113-25108	on request

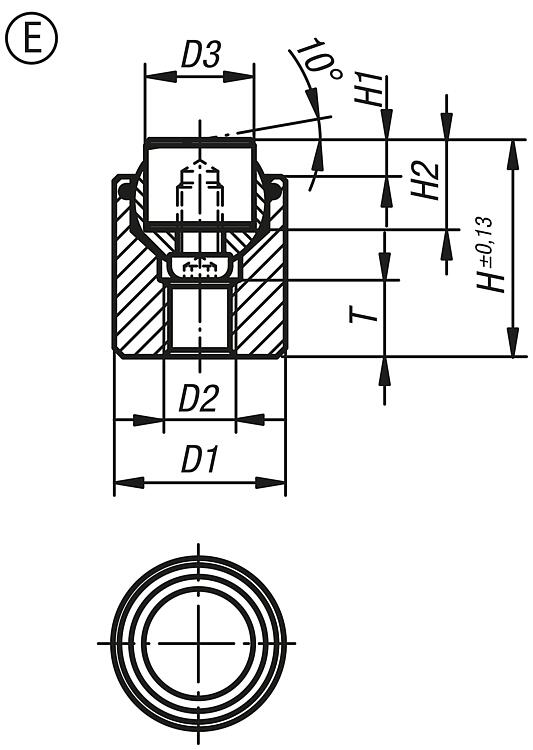

Self-aligning pads with O-ring and exchangeable inserts, Form E, flattened stainless steel insert smooth

More information

Drawings

Self-aligning pads with O-ring and exchangeable inserts, Form E, flattened stainless steel insert smooth

Item selection/filter

Order No.	Form	D1	D2	D3	H	H1	H2	T	Ball-Ø	Load rating max. kN (static load only)	Order No. stainless steel insert	Price
02003-217X022	E	17	M6	10	22	4	10	7	13	28	07113-10102	on request
02003-219X024	E	19	M8	12	24	4	10	8	15	39	07113-12102	on request
02003-224X028	E	24	M10	16	28	4	10	8	20	58	07113-16102	on request
02003-230X030	E	30	M12	20	30	4	10	9	23	95	07113-20102	on request
02003-236X036	E	36	M12	25	36	4	10	11	28	136	07113-25102	on request

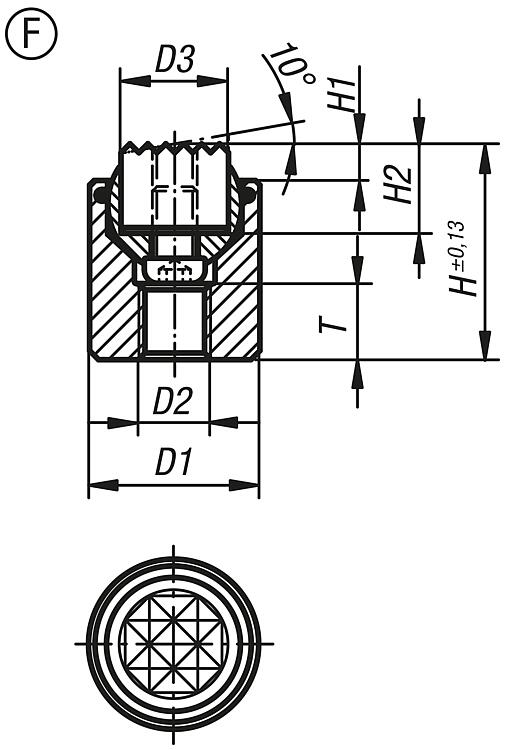

Self-aligning pads with O-ring and exchangeable inserts, Form F, flattened ball with diamond grip

More information

Drawings

Self-aligning pads with O-ring and exchangeable inserts, Form F, flattened ball with diamond grip

Item selection/filter

Order No.	Form	D1	D2	D3	H	H1	H2	T	Ball-Ø	Load rating max. kN (static load only)	Order No. gripper	Price
02003-317X022	F	17	M6	10	22	4	10	7	13	28	07113-1010	on request
02003-319X024	F	19	M8	12	24	4	10	8	15	39	07113-1210	on request
02003-324X028	F	24	M10	16	28	4	10	8	20	58	07113-1610	on request
02003-330X030	F	30	M12	20	30	4	10	9	23	95	07113-2010	on request
02003-336X036	F	36	M12	25	36	4	10	11	28	136	07113-2510	on request

Self-aligning pads with O-ring and exchangeable inserts, Form K, flattened POM insert smooth

More information

Drawings

Self-aligning pads with O-ring and exchangeable inserts, Form K, flattened POM insert smooth

Item selection/filter

Order No.	Form	D1	D2	D3	H	H1	H2	T	Ball-Ø	Load rating max. kN (static load only)	Order No. POM insert	Price
02003-717X022	K	17	M6	10	22	4	10	7	13	4	07113-10109	on request
02003-719X024	K	19	M8	12	24	4	10	8	15	7	07113-12109	on request
02003-724X028	K	24	M10	16	28	4	10	8	20	14	07113-16109	on request
02003-730X030	K	30	M12	20	30	4	10	9	23	27	07113-20109	on request
02003-736X036	K	36	M12	25	36	4	10	11	28	47	07113-25109	on request

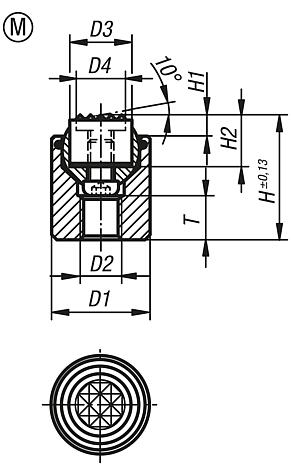

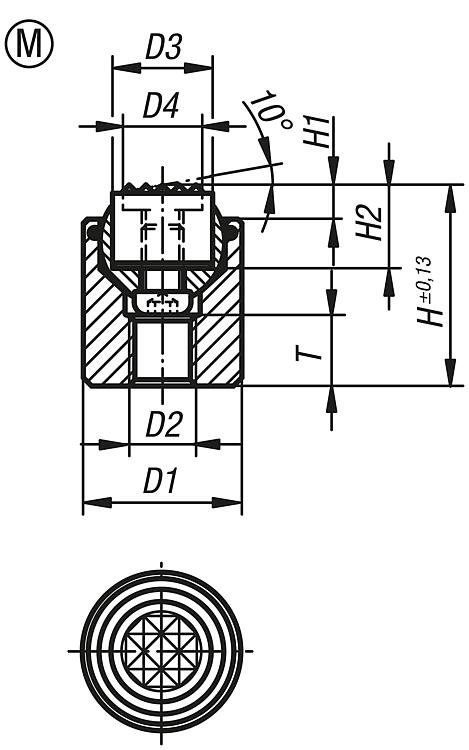

Self-aligning pads with O-ring and exchangeable inserts, Form M, flattened ball with carbide diamond grip

More information

Drawings

Self-aligning pads with O-ring and exchangeable inserts, Form M, flattened ball with carbide diamond grip

Item selection/filter

Order No.	Form	D1	D2	D3	D4	H	H1	H2	T	Ball-Ø	Load rating max. kN (static load only)	Order No. gripper	Price
02003-917X022	M	17	M6	10	7,9	22	4	10	7	13	28	07113-10107	on request
02003-919X024	M	19	M8	12	9,5	24	4	10	8	15	39	07113-12107	on request
02003-924X028	M	24	M10	16	12,7	28	4	10	8	20	58	07113-16107	on request
02003-930X030	M	30	M12	20	15,9	30	4	10	9	23	95	07113-20107	on request
02003-936X036	M	36	M12	25	19	36	4	10	11	28	136	07113-25107	on request

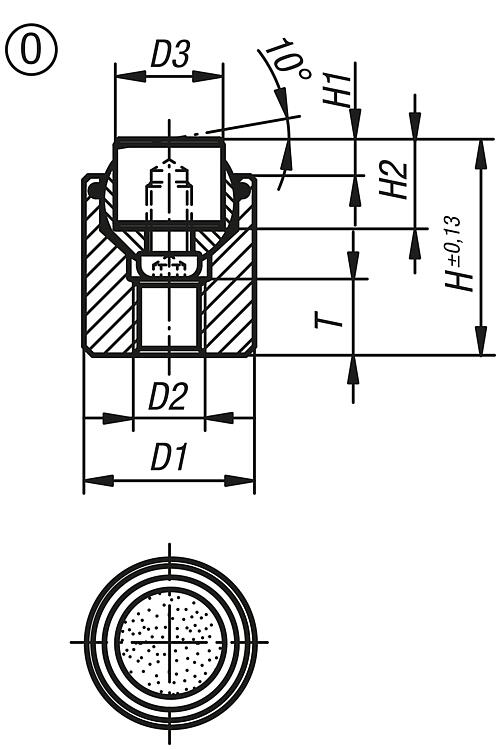

Self-aligning pads with O-ring and exchangeable inserts, Form O, stainless steel insert with diamond impregnated face

More information

Drawings

Self-aligning pads with O-ring and exchangeable inserts, Form O, stainless steel insert with diamond impregnated face

Item selection/filter

Order No.	Form	D1	D2	D3	H	H1	H2	T	Ball-Ø	Load rating max. kN (static load only)	Order No. stainless steel insert, diamond surface	Price
02003-517X022	O	17	M6	10	22	4	10	7	13	28	07113-10105	on request
02003-519X024	O	19	M8	12	24	4	10	8	15	39	07113-12105	on request
02003-524X028	O	24	M10	16	28	4	10	8	20	58	07113-16105	on request
02003-530X030	O	30	M12	20	30	4	10	9	23	95	07113-20105	on request
02003-536X036	O	36	M12	25	36	4	10	11	28	136	07113-25105	on request

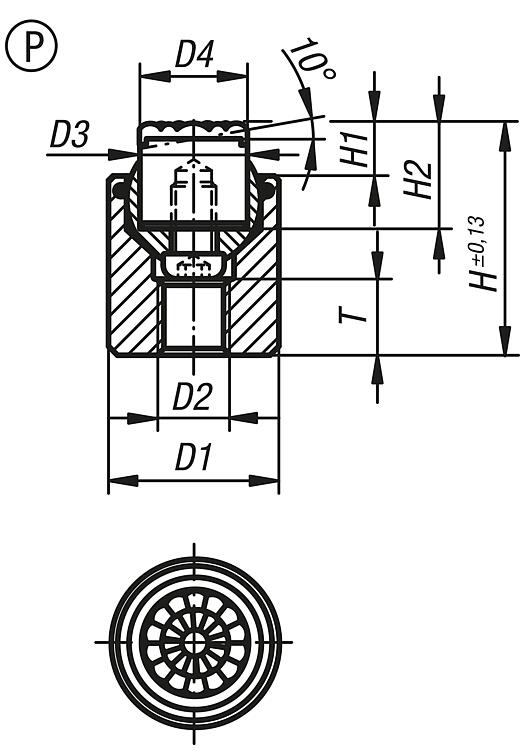

Self-aligning pads with O-ring and exchangeable inserts, Form P, stainless steel insert with polythene face

More information

Drawings

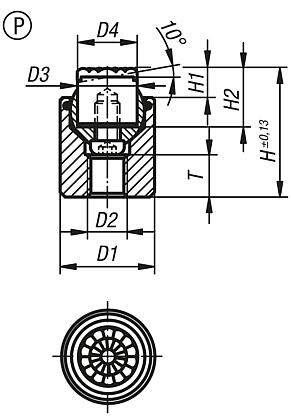

Self-aligning pads with O-ring and exchangeable inserts, Form P, stainless steel insert with polythene face

Item selection/filter

Order No.	Form	D1	D2	D3	D4	H	H1	H2	T	Ball-Ø	Order No. stainless steel insert, polyurethane surface	Price
02003-617X024	P	17	M6	10	10	24	6	12	7	13	07113-10126	on request
02003-619X026	P	19	M8	12	13	26	6	12	8	15	07113-12126	on request
02003-624X030	P	24	M10	16	16	30	6	12	8	20	07113-16126	on request
02003-630X032	P	30	M12	20	21	32	6	12	9	23	07113-20126	on request
02003-636X038	P	36	M12	25	27	38	6	12	11	28	07113-25126	on request
