Self-aligning pads swivel angle 14° and 20°

go back

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Self-aligning pads
        Self-aligning pads swivel angle 14° and 20°

Item description/product images

Show/filter all items

DescriptionMaterial:Body steel.
Ball rust and acid resistant steel.
Form M with carbide insert.Version:Body black oxidised.
Ball bright.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixture and toolmaking.
Grub screws or threaded studs can be screwed and glued into thread D2 making a self-aligning pad with external thread.

Ball secured against rotation.Advantages:- Self-aligning pads can be swiveled.
- High load forces can be absorbed.
- The built-in o-ring keeps dirt and foreign particles out, which in turn guarantees reliable operation.Drawing reference:

Form C: flattened ball, smooth
Form M: flattened ball, with carbide serrations

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02001 Self-aligning pads swivel angle 14° and 20°

221 kB

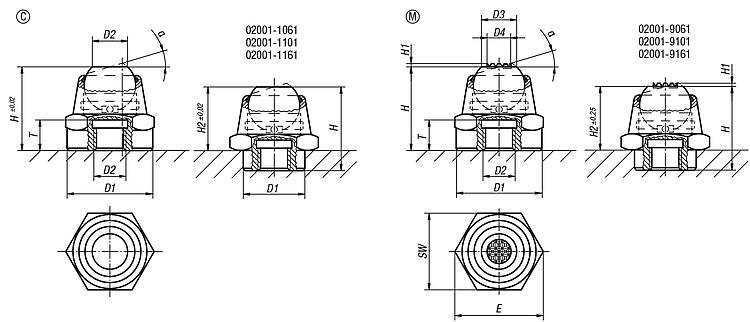

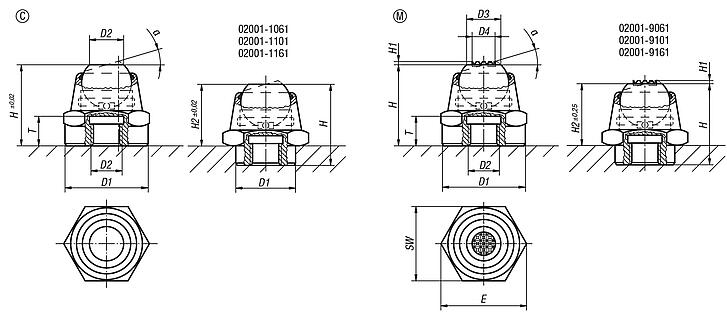

Drawings (total overview)

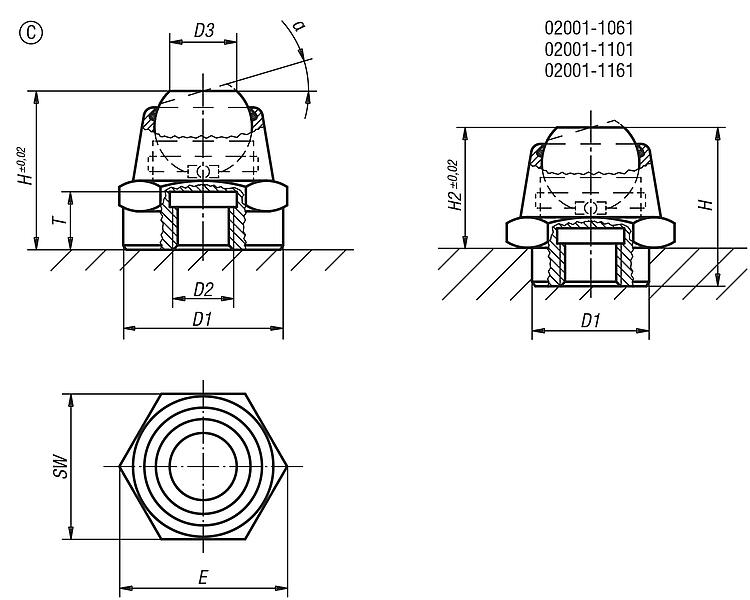

Self-aligning pads, swivel angle 14° and 20°, Form C, flattened ball, smooth face

More information

Drawings

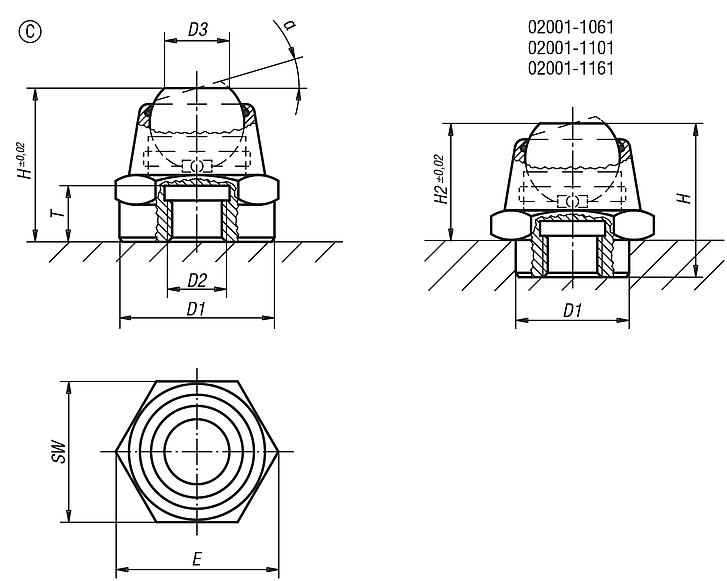

Self-aligning pads, swivel angle 14° and 20°, Form C, flattened ball, smooth face

Item selection/filter

Order No.	Form	α	D1	D2	D3	H	H2	T	E	SW	Ball-Ø	Load rating max. kN (static load only)	Price
02001-1061	C	14°	12	M6	7	17,5	12,5	6	19,6	17	10	14	on request
02001-106	C	14°	16	M6	7	17,5	-	6	19,6	17	10	14	on request
02001-108	C	20°	22	M8	11	26	-	9	27,7	24	16	34	on request
02001-1101	C	20°	18	M10	11	26	20	9	27,7	24	16	34	on request
02001-110	C	20°	22	M10	11	26	-	9	27,7	24	16	34	on request
02001-112	C	20°	22	M12	11	26	-	9	27,7	24	16	34	on request
02001-1161	C	20°	26	M16	18	40	30	15	41,6	36	25	90	on request
02001-116	C	20°	34	M16	18	40	-	15	41,6	36	25	90	on request
02001-120	C	20°	34	M20	18	40	-	15	41,6	36	25	90	on request

Self-aligning pads, swivel angle 14° and 20°, Form M, flattened ball with carbide diamond grips

More information

Drawings

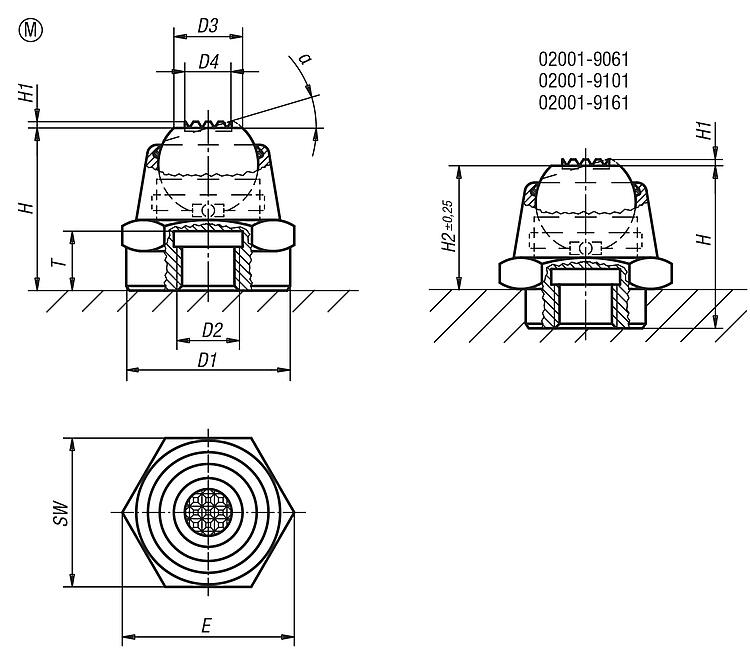

Self-aligning pads, swivel angle 14° and 20°, Form M, flattened ball with carbide diamond grips

Item selection/filter

Order No.	Form	α	D1	D2	D3	D4	H	H1	H2	E	T	Ball-Ø	SW	Load rating max. kN (static load only)	Price
02001-9061	M	14°	12	M6	7	6,35	17,5	0,6	12,5	19,6	6	10	17	14	on request
02001-906	M	14°	16	M6	7	6,35	17,5	0,6	-	19,6	6	10	17	14	on request
02001-908	M	20°	22	M8	11	7,5	26	0,8	-	27,7	9	16	24	34	on request
02001-9101	M	20°	18	M10	11	7,5	26	0,8	20	27,7	9	16	24	34	on request
02001-910	M	20°	22	M10	11	7,5	26	0,8	-	27,7	9	16	24	34	on request
02001-912	M	20°	22	M12	11	7,5	26	0,8	-	27,7	9	16	24	34	on request
02001-9161	M	20°	26	M16	18	12,7	40	0,9	30	41,6	15	25	36	90	on request
02001-916	M	20°	34	M16	18	12,7	40	0,9	-	41,6	15	25	36	90	on request
02001-920	M	20°	34	M20	18	12,7	40	0,9	-	41,6	15	25	36	90	on request
