        Self-aligning pads self-righting

Item description/product images

Show/filter all items

DescriptionMaterial:Carbon steel.Version:Hardened, black oxidised.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.

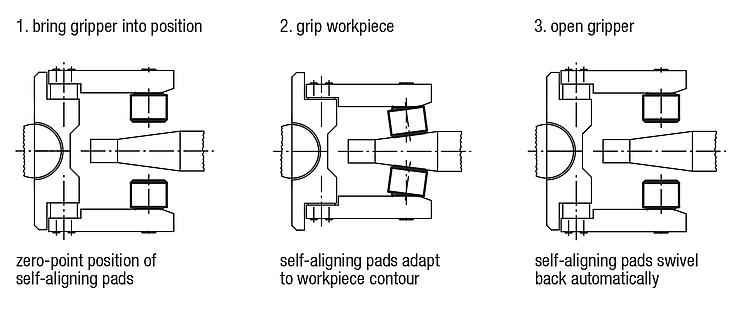

They also serve as stops, supports and thrust pads in fixtures and toolmaking.Advantages:– The built-in O-ring prevents dirt and foreign particles from entering.
– The clamping surface swivels back automatically after clamping.
– High load rating and small size.Drawing reference:

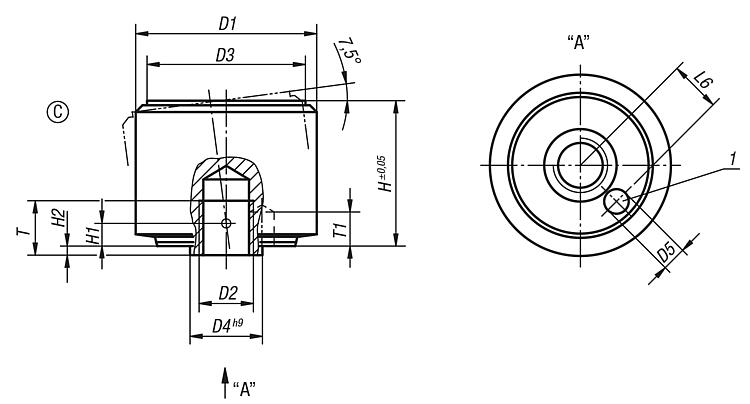

Form C: smooth face
Form F: serrated face

1) Hole for pin as a rotation lock

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02004 Self-aligning pads self-righting

250 kB

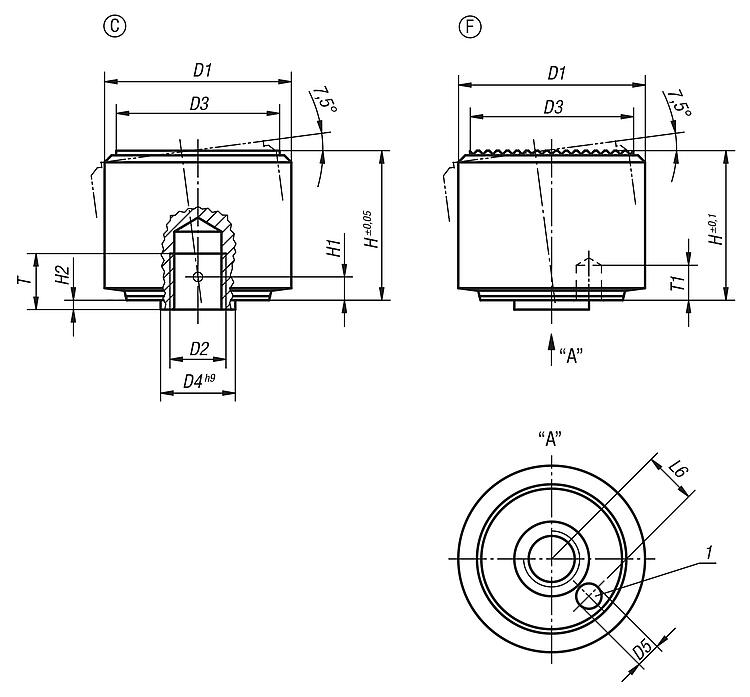

Drawings (total overview)

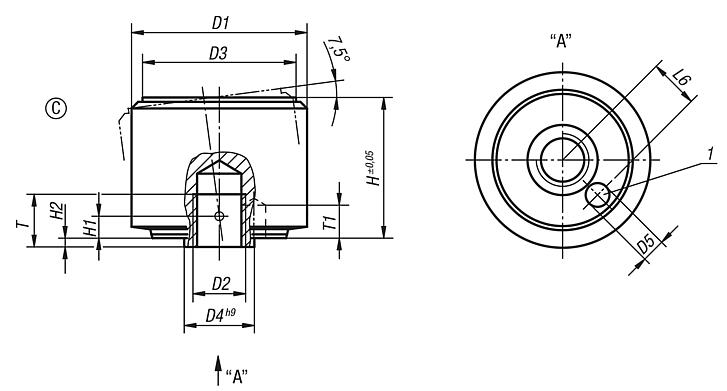

Self-aligning pads, auto-return, Form C, smooth face

More information

Drawings

Self-aligning pads, auto-return, Form C, smooth face

Item selection/filter

Order No.	Form	D1	D2	D3	D4	D5	H	H1	H2	T	T1	L6	Load rating max. kN (static load only)	Price
02004-105	C	18	M5	15	7	1,8	14	2,1	0,8	5	3	4,6	30	on request
02004-106	C	22	M6	18	8	2,8	16,5	2,5	1	6	4	5,6	50	on request
02004-108	C	28	M8	23	11	3,3	21,5	3,4	1,3	8	5	7,5	90	on request
02004-110	C	34	M10	29	13	4,4	27	4,2	1,6	10	6	9,2	140	on request
02004-112	C	40	M12	35	16	5,4	32	5	2	12	8	11,3	220	on request

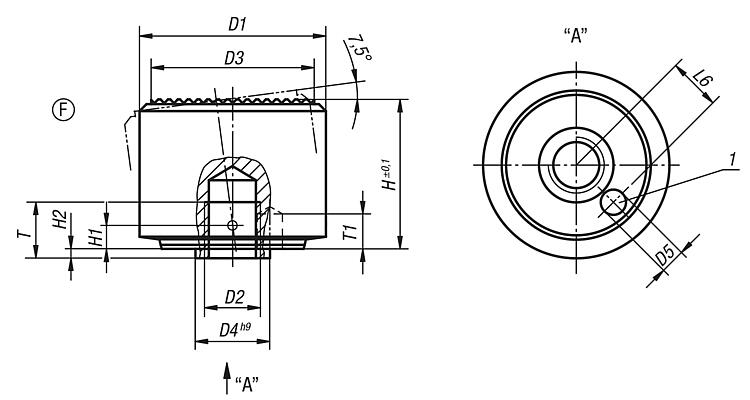

Self-aligning pads, auto-return, Form F, insert with diamond grip

More information

Drawings

Self-aligning pads, auto-return, Form F, insert with diamond grip

Item selection/filter

Order No.	Form	D1	D2	D3	D4	D5	H	H1	H2	T	T1	L6	Load rating max. kN (static load only)	Price
02004-305	F	18	M5	15	7	1,8	14	2,1	0,8	5	3	4,6	30	on request
02004-306	F	22	M6	18	8	2,8	16,5	2,5	1	6	4	5,6	50	on request
02004-308	F	28	M8	23	11	3,3	21,5	3,4	1,3	8	5	7,5	90	on request
02004-310	F	34	M10	29	13	4,4	27	4,2	1,6	10	6	9,2	140	on request
02004-312	F	40	M12	35	16	5,4	32	5	2	12	8	11,3	220	on request
