02005Self-aligning pads adjustable |
go back |
|
|
DescriptionMaterial:Steel or stainless steel.Version:Steel version:
Housing tempered and manganese phosphated.
Nut black oxidised.
Stainless steel version:
Housing tempered and electropolished.

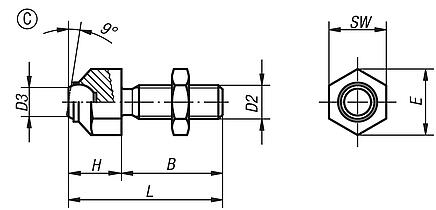

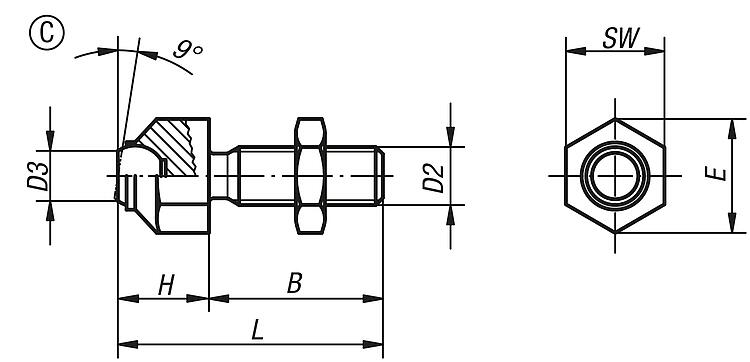

Nut bright.Note:Ball secured against rotation.Drawing reference:Form C: flattened ball, smooth
Form M: flattened ball, with serrations DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

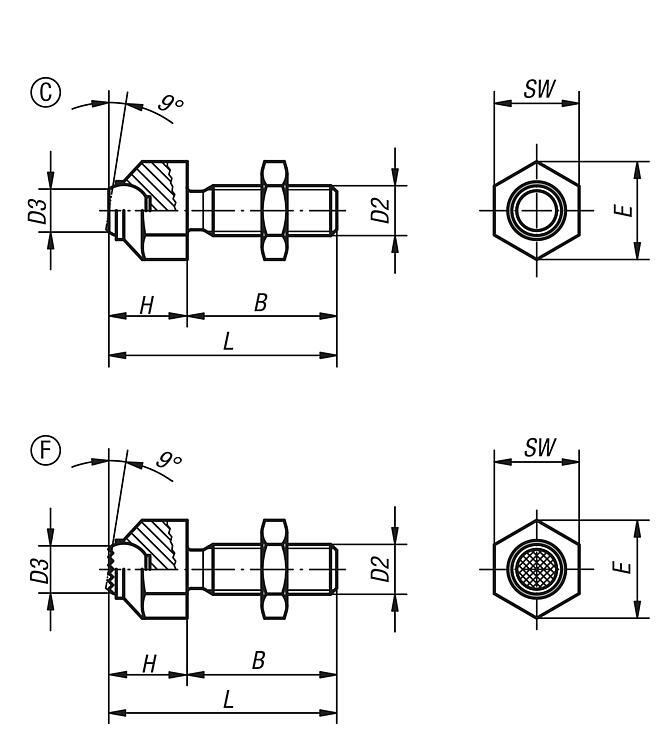

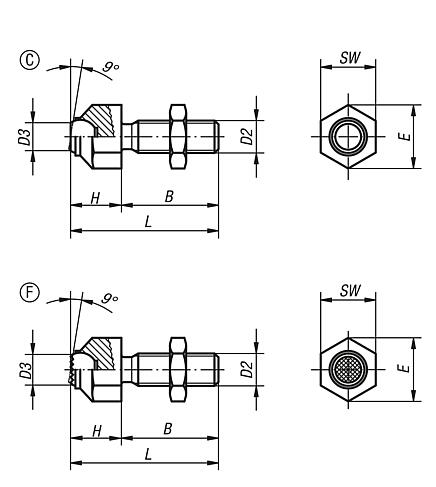

Drawings (total overview) |
| Order No. | Form | Main
material | B | D2 | D3 | H | L | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 02005-108 | C | steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 |  | | on request | | | 02005-110 | C | steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | on request | | | 02005-112 | C | steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | on request | | | 02005-116 | C | steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | on request | | | 02005-120 | C | steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | on request | | | 02005-1081 | C | stainless steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 | | | on request | | | 02005-1101 | C | stainless steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | on request | | | 02005-1121 | C | stainless steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | on request | | | 02005-1161 | C | stainless steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | on request | | | 02005-1201 | C | stainless steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | on request | |
|

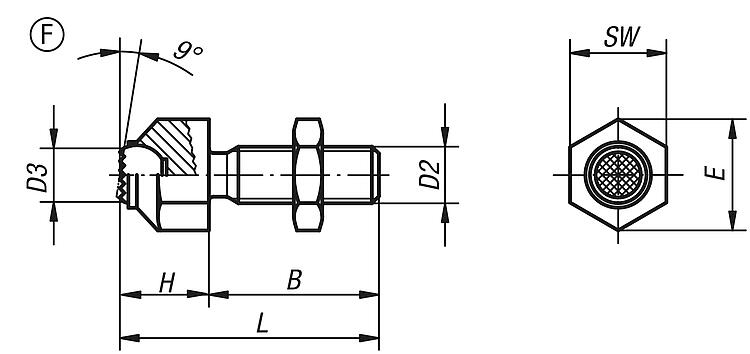

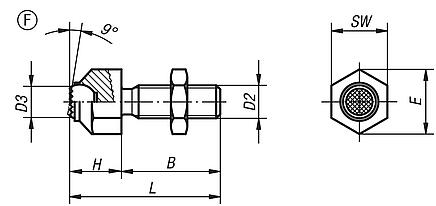

Self-aligning pads, adjustable, Form F, flattened ball with diamond grip |
More information |
| Order No. | Form | Main
material | B | D2 | D3 | H | L | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 02005-308 | F | steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 | | | on request | | | 02005-310 | F | steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | on request | | | 02005-312 | F | steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | on request | | | 02005-316 | F | steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | on request | | | 02005-320 | F | steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | on request | | | 02005-3081 | F | stainless steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 | | | on request | | | 02005-3101 | F | stainless steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | on request | | | 02005-3121 | F | stainless steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | on request | | | 02005-3161 | F | stainless steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | on request | | | 02005-3201 | F | stainless steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | on request | |
|
