        Self-aligning pads adjustable with O-ring and exchangeable inserts

Item description/product images

Show/filter all items

DescriptionMaterial:Body carbon steel.
Ball rust and acid resistant steel.
Inserts:
Form C, F, M tool steel
Form K POM
Form E stainless steel.
Form O stainless steel diamond impregnated.
Form P stainless steel with polyurethane surface.Version:Body tempered, black oxidised.
Ball hardened, bright.
Inserts:
Form C, F hardened, black oxidised.
Form M with carbide serrations, black oxidised.
Form K white.
Form E hardened, bright.
Form O diamond impregnated surface comparable to 100 grade abrasive grit.
Form P polyurethane surface, hardness 60 Shore.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
The ball can be removed from the housing by applying light pressure to the socket head screw.

Ball secured against rotation.Advantages:Highly cost-effective as inserts can be exchanged.
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.Drawing reference:

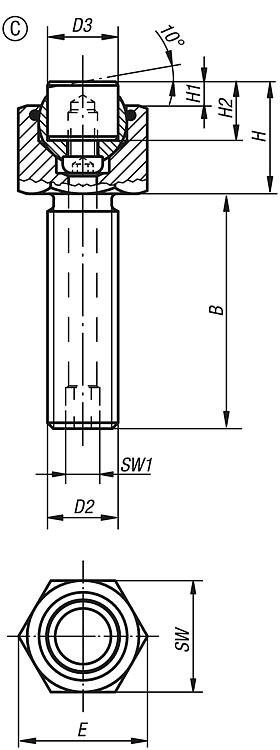

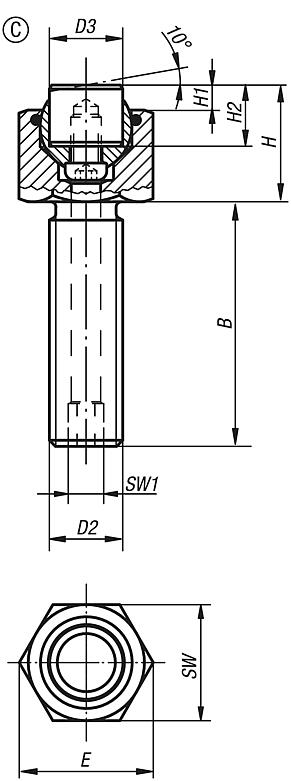

Form C: flattened steel insert, smooth
Form E: flattened stainless steel insert, smooth
Form F: gripper face

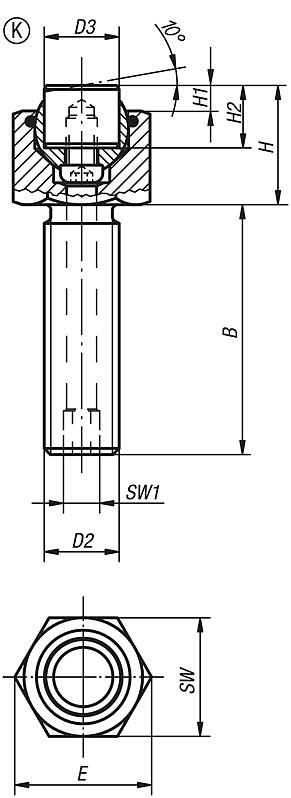

Form K: flattened POM insert, smooth
Form M: gripper, with carbide serrations

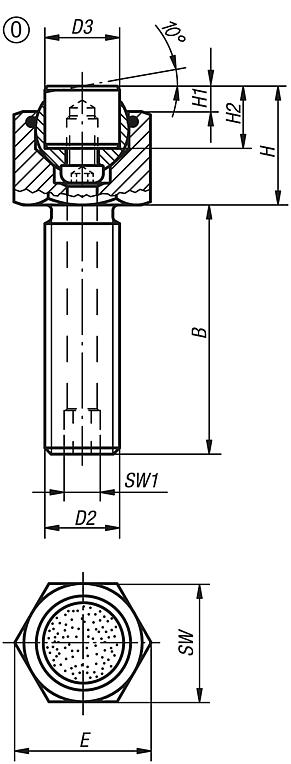

Form O: stainless steel insert diamond impregnated

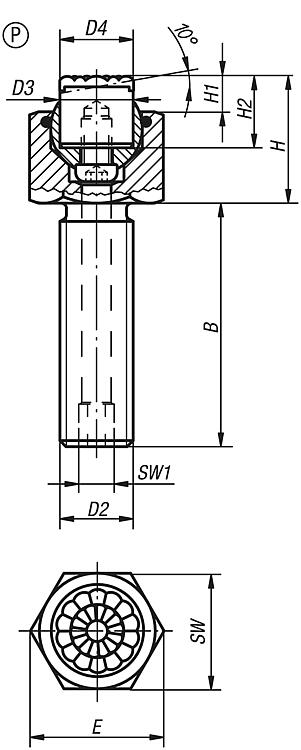

Form P: stainless steel insert with polyurethane surface

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02007 Self-aligning pads adjustable with O-ring and exchangeable inserts

196 kB

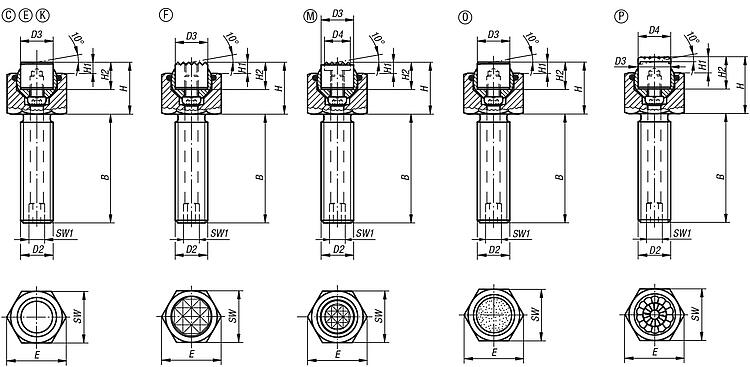

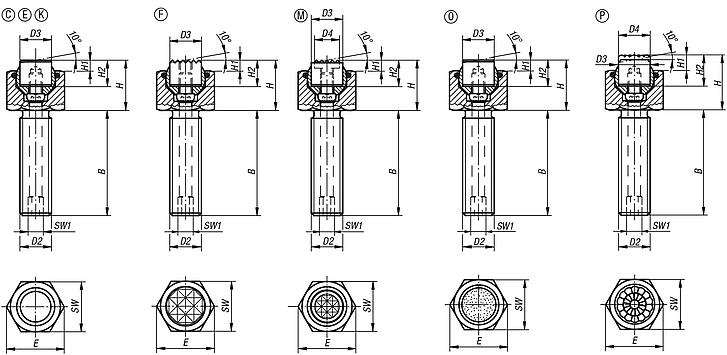

Drawings (total overview)

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form C, flattened steel insert smooth

More information

Drawings

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form C, flattened steel insert smooth

Item selection/filter

Order No.	Form	B	D2	D3	H	H1	H2	E	SW	SW1	Ball-Ø	Load rating max. kN (static load only)	Order No. steel insert	Price
02007-110X015	C	15	M10	10	17	4	10	19,6	17	3	13	19	07113-10108	on request
02007-110X030	C	30	M10	10	17	4	10	19,6	17	3	13	19	07113-10108	on request
02007-110X050	C	50	M10	10	17	4	10	19,6	17	3	13	19	07113-10108	on request
02007-112X020	C	20	M12	12	19	4	10	21,9	19	5	15	30	07113-12108	on request
02007-112X040	C	40	M12	12	19	4	10	21,9	19	5	15	30	07113-12108	on request
02007-112X060	C	60	M12	12	19	4	10	21,9	19	5	15	30	07113-12108	on request
02007-116X025	C	25	M16	16	23	4	10	27,7	24	6	20	50	07113-16108	on request
02007-116X050	C	50	M16	16	23	4	10	27,7	24	6	20	50	07113-16108	on request
02007-116X080	C	80	M16	16	23	4	10	27,7	24	6	20	50	07113-16108	on request
02007-120X030	C	30	M20	20	24	4	10	34,6	30	8	23	85	07113-20108	on request
02007-120X060	C	60	M20	20	24	4	10	34,6	30	8	23	85	07113-20108	on request
02007-120X100	C	100	M20	20	24	4	10	34,6	30	8	23	85	07113-20108	on request
02007-124X040	C	40	M24	25	30	4	10	41,6	36	10	28	121	07113-25108	on request
02007-124X100	C	100	M24	25	30	4	10	41,6	36	10	28	121	07113-25108	on request

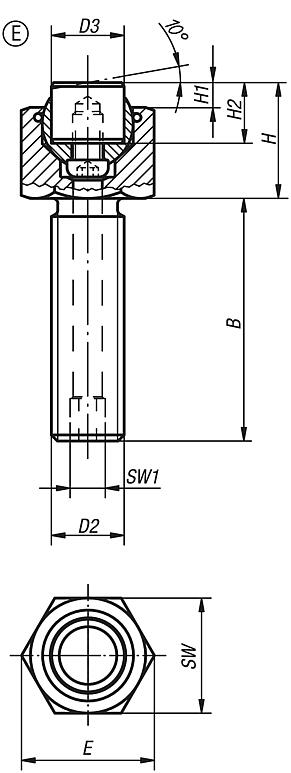

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form E, flattened stainless steel insert smooth

More information

Drawings

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form E, flattened stainless steel insert smooth

Item selection/filter

Order No.	Form	B	D2	D3	H	H1	H2	E	SW	SW1	Ball-Ø	Load rating max. kN (static load only)	Order No. stainless steel insert	Price
02007-210X015	E	15	M10	10	17	4	10	19,6	17	3	13	19	07113-10102	on request
02007-210X030	E	30	M10	10	17	4	10	19,6	17	3	13	19	07113-10102	on request
02007-210X050	E	50	M10	10	17	4	10	19,6	17	3	13	19	07113-10102	on request
02007-212X020	E	20	M12	12	19	4	10	21,9	19	5	15	30	07113-12102	on request
02007-212X040	E	40	M12	12	19	4	10	21,9	19	5	15	30	07113-12102	on request
02007-212X060	E	60	M12	12	19	4	10	21,9	19	5	15	30	07113-12102	on request
02007-216X025	E	25	M16	16	23	4	10	27,7	24	6	20	50	07113-16102	on request
02007-216X050	E	50	M16	16	23	4	10	27,7	24	6	20	50	07113-16102	on request
02007-216X080	E	80	M16	16	23	4	10	27,7	24	6	20	50	07113-16102	on request
02007-220X030	E	30	M20	20	24	4	10	34,6	30	8	23	85	07113-20102	on request
02007-220X060	E	60	M20	20	24	4	10	34,6	30	8	23	85	07113-20102	on request
02007-220X100	E	100	M20	20	24	4	10	34,6	30	8	23	85	07113-20102	on request
02007-224X040	E	40	M24	25	30	4	10	41,6	36	10	28	121	07113-25102	on request
02007-224X100	E	100	M24	25	30	4	10	41,6	36	10	28	121	07113-25102	on request

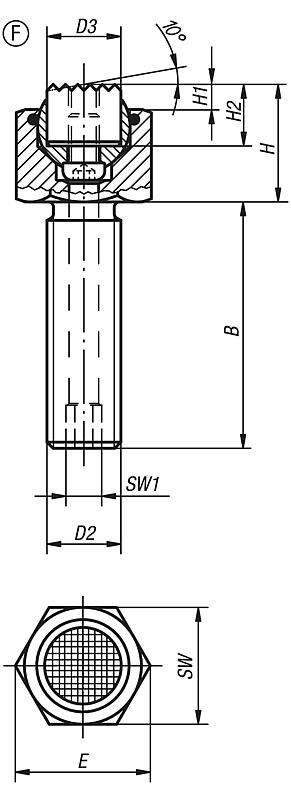

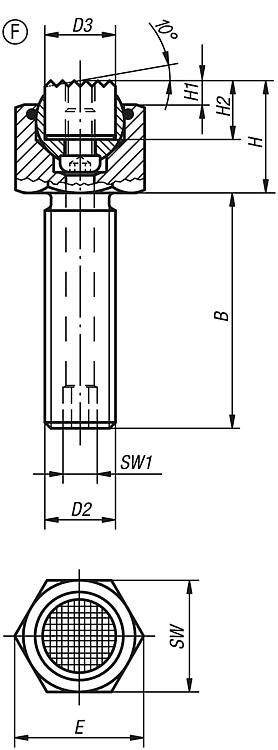

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form F, flattened ball with diamond grip

More information

Drawings

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form F, flattened ball with diamond grip

Item selection/filter

Order No.	Form	B	D2	D3	H	H1	H2	E	SW	SW1	Ball-Ø	Load rating max. kN (static load only)	Order No. gripper	Price
02007-310X015	F	15	M10	10	17	4	10	19,6	17	3	13	19	07113-1010	on request
02007-310X030	F	30	M10	10	17	4	10	19,6	17	3	13	19	07113-1010	on request
02007-310X050	F	50	M10	10	17	4	10	19,6	17	3	13	19	07113-1010	on request
02007-312X020	F	20	M12	12	19	4	10	21,9	19	5	15	30	07113-1210	on request
02007-312X040	F	40	M12	12	19	4	10	21,9	19	5	15	30	07113-1210	on request
02007-312X060	F	60	M12	12	19	4	10	21,9	19	5	15	30	07113-1210	on request
02007-316X025	F	25	M16	16	23	4	10	27,7	24	6	20	50	07113-1610	on request
02007-316X050	F	50	M16	16	23	4	10	27,7	24	6	20	50	07113-1610	on request
02007-316X080	F	80	M16	16	23	4	10	27,7	24	6	20	50	07113-1610	on request
02007-320X030	F	30	M20	20	24	4	10	34,6	30	8	23	85	07113-2010	on request
02007-320X060	F	60	M20	20	24	4	10	34,6	30	8	23	85	07113-2010	on request
02007-320X100	F	100	M20	20	24	4	10	34,6	30	8	23	85	07113-2010	on request
02007-324X040	F	40	M24	25	30	4	10	41,6	36	10	28	121	07113-2510	on request
02007-324X100	F	100	M24	25	30	4	10	41,6	36	10	28	121	07113-2510	on request

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form K, flattened POM insert smooth

More information

Drawings

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form K, flattened POM insert smooth

Item selection/filter

Order No.	Form	B	D2	D3	H	H1	H2	E	SW	SW1	Ball-Ø	Load rating max. kN (static load only)	Order No. POM insert	Price
02007-710X015	K	15	M10	10	17	4	10	19,6	17	3	13	4	07113-10109	on request
02007-710X030	K	30	M10	10	17	4	10	19,6	17	3	13	4	07113-10109	on request
02007-710X050	K	50	M10	10	17	4	10	19,6	17	3	13	4	07113-10109	on request
02007-712X020	K	20	M12	12	19	4	10	21,9	19	5	15	7	07113-12109	on request
02007-712X040	K	40	M12	12	19	4	10	21,9	19	5	15	7	07113-12109	on request
02007-712X060	K	60	M12	12	19	4	10	21,9	19	5	15	7	07113-12109	on request
02007-716X025	K	25	M16	16	23	4	10	27,7	24	6	20	14	07113-16109	on request
02007-716X050	K	50	M16	16	23	4	10	27,7	24	6	20	14	07113-16109	on request
02007-716X080	K	80	M16	16	23	4	10	27,7	24	6	20	14	07113-16109	on request
02007-720X030	K	30	M20	20	24	4	10	34,6	30	8	23	27	07113-20109	on request
02007-720X060	K	60	M20	20	24	4	10	34,6	30	8	23	27	07113-20109	on request
02007-720X100	K	100	M20	20	24	4	10	34,6	30	8	23	27	07113-20109	on request
02007-724X040	K	40	M24	25	30	4	10	41,6	36	10	28	47	07113-25109	on request
02007-724X100	K	100	M24	25	30	4	10	41,6	36	10	28	47	07113-25109	on request

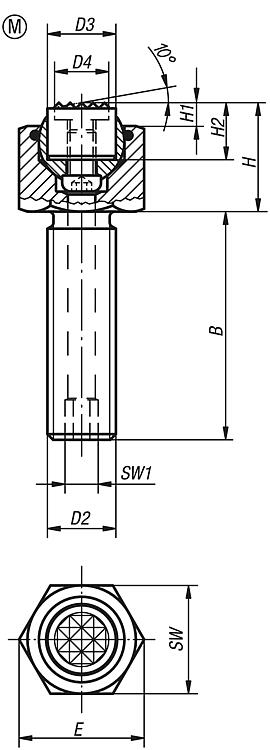

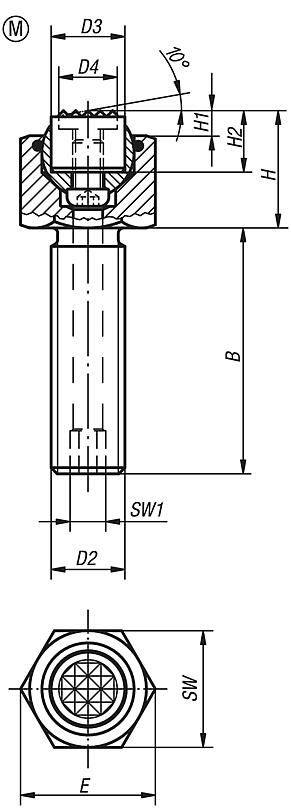

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form M, flattened ball with carbide diamond grip

More information

Drawings

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form M, flattened ball with carbide diamond grip

Item selection/filter

Order No.	Form	B	D2	D3	D4	H	H1	H2	E	SW	SW1	Ball-Ø	Load rating max. kN (static load only)	Order No. gripper	Price
02007-910X015	M	15	M10	10	7,9	17	4	10	19,6	17	3	13	19	07113-10107	on request
02007-910X030	M	30	M10	10	7,9	17	4	10	19,6	17	3	13	19	07113-10107	on request
02007-910X050	M	50	M10	10	7,9	17	4	10	19,6	17	3	13	19	07113-10107	on request
02007-912X020	M	20	M12	12	9,5	19	4	10	21,9	19	5	15	30	07113-12107	on request
02007-912X040	M	40	M12	12	9,5	19	4	10	21,9	19	5	15	30	07113-12107	on request
02007-912X060	M	60	M12	12	9,5	19	4	10	21,9	19	5	15	30	07113-12107	on request
02007-916X025	M	25	M16	16	12,7	23	4	10	27,7	24	6	20	50	07113-16107	on request
02007-916X050	M	50	M16	16	12,7	23	4	10	27,7	24	6	20	50	07113-16107	on request
02007-916X080	M	80	M16	16	12,7	23	4	10	27,7	24	6	20	50	07113-16107	on request
02007-920X030	M	30	M20	20	15,9	24	4	10	34,6	30	8	23	85	07113-20107	on request
02007-920X060	M	60	M20	20	15,9	24	4	10	34,6	30	8	23	85	07113-20107	on request
02007-920X100	M	100	M20	20	15,9	24	4	10	34,6	30	8	23	85	07113-20107	on request
02007-924X040	M	40	M24	25	19	30	4	10	41,6	36	10	28	121	07113-25107	on request
02007-924X100	M	100	M24	25	19	30	4	10	41,6	36	10	28	121	07113-25107	on request

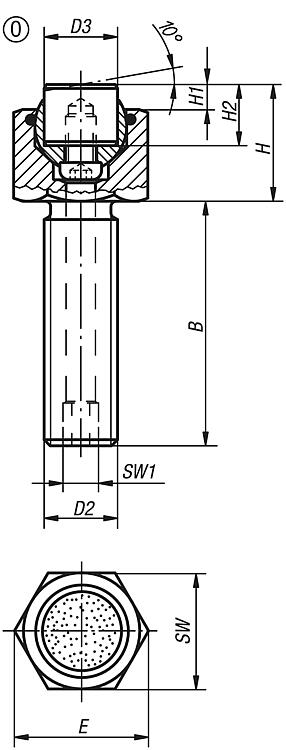

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form O, stainless steel insert with diamond impregnated face

More information

Drawings

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form O, stainless steel insert with diamond impregnated face

Item selection/filter

Order No.	Form	B	D2	D3	H	H1	H2	E	SW	SW1	Ball-Ø	Load rating max. kN (static load only)	Order No. stainless steel insert, diamond surface	Price
02007-510X015	O	15	M10	10	17	4	10	19,6	17	3	13	19	07113-10105	on request
02007-510X030	O	30	M10	10	17	4	10	19,6	17	3	13	19	07113-10105	on request
02007-510X050	O	50	M10	10	17	4	10	19,6	17	3	13	19	07113-10105	on request
02007-512X020	O	20	M12	12	19	4	10	21,9	19	5	15	30	07113-12105	on request
02007-512X040	O	40	M12	12	19	4	10	21,9	19	5	15	30	07113-12105	on request
02007-512X060	O	60	M12	12	19	4	10	21,9	19	5	15	30	07113-12105	on request
02007-516X025	O	25	M16	16	23	4	10	27,7	24	6	20	50	07113-16105	on request
02007-516X050	O	50	M16	16	23	4	10	27,7	24	6	20	50	07113-16105	on request
02007-516X080	O	80	M16	16	23	4	10	27,7	24	6	20	50	07113-16105	on request
02007-520X030	O	30	M20	20	24	4	10	34,6	30	8	23	85	07113-20105	on request
02007-520X060	O	60	M20	20	24	4	10	34,6	30	8	23	85	07113-20105	on request
02007-520X100	O	100	M20	20	24	4	10	34,6	30	8	23	85	07113-20105	on request
02007-524X040	O	40	M24	25	30	4	10	41,6	36	10	28	121	07113-25105	on request
02007-524X100	O	100	M24	25	30	4	10	41,6	36	10	28	121	07113-25105	on request

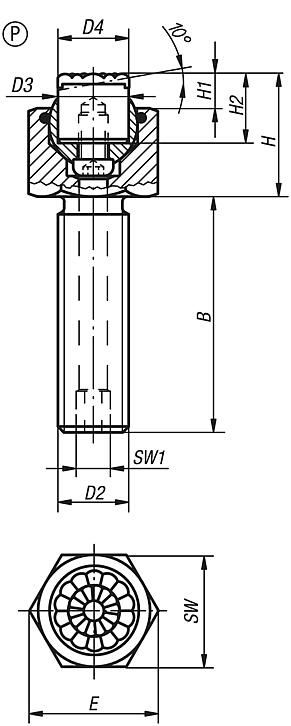

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form P, stainless steel insert with polyurethane face

More information

Drawings

Self-aligning pads, adjustable, with O-ring and exchangeable inserts, Form P, stainless steel insert with polyurethane face

Item selection/filter

Order No.	Form	B	D2	D3	D4	H	H1	H2	E	SW	SW1	Ball-Ø	Order No. stainless steel insert, polyurethane surface	Price
02007-620X030	P	30	M20	20	21	26	6	12	34,6	30	8	23	07113-20126	on request
02007-620X060	P	60	M20	20	21	26	6	12	34,6	30	8	23	07113-20126	on request
02007-616X080	P	80	M16	16	16	25	6	12	27,7	24	6	20	07113-16126	on request
02007-610X030	P	30	M10	10	10	19	6	12	19,6	17	3	13	07113-10126	on request
02007-624X100	P	100	M24	25	27	32	6	12	41,6	36	10	28	07113-25126	on request
02007-610X050	P	50	M10	10	10	19	6	12	19,6	17	3	13	07113-10126	on request
02007-616X050	P	50	M16	16	16	25	6	12	27,7	24	6	20	07113-16126	on request
02007-612X040	P	40	M12	12	13	21	6	12	21,9	19	5	15	07113-12126	on request
02007-616X025	P	25	M16	16	16	25	6	12	27,7	24	6	20	07113-16126	on request
02007-612X060	P	60	M12	12	13	21	6	12	21,9	19	5	15	07113-12126	on request
02007-624X040	P	40	M24	25	27	32	6	12	41,6	36	10	28	07113-25126	on request
02007-610X015	P	15	M10	10	10	19	6	12	19,6	17	3	13	07113-10126	on request
02007-620X100	P	100	M20	20	21	26	6	12	34,6	30	8	23	07113-20126	on request
02007-612X020	P	20	M12	12	13	21	6	12	21,9	19	5	15	07113-12126	on request
