        Self-aligning pads adjustable with O-ring

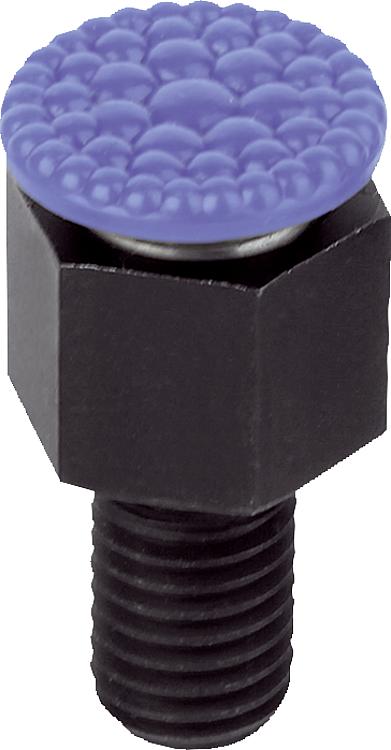

        Self-aligning pads, adjustable, with O-ring, Form P, stainless steel ball with polyurethane face

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball:
Form P stainless steel with polyurethane surface.Version:Body tempered, black oxidised.
Ball:
Form P polyurethane, Shore hardness 60°.Note:The self-aligning pads are used to support and clamp unmachined and machined workpieces.
In addition, they serve as stops, supports and pressure pieces in fixtures and toolmaking.

Ball secured against rotation.

Form O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02006_P Self-aligning pads, adjustable, with O-ring, Form P, stainless steel ball with polyurethane face

137 kB

Drawings

Item selection/filter

Order No.	Form	B	D2	D3	H	H1	E	SW	SW1	W	Ball-Ø	Price
02006-606X012	P	12	M6	10	12	4	11,5	10	-	28	7	on request
02006-606X025	P	25	M6	10	12	4	11,5	10	-	28	7	on request
02006-606X040	P	40	M6	10	12	4	11,5	10	-	28	7	on request
02006-608X012	P	12	M8	13	16,5	5	15	13	-	28	10	on request
02006-608X025	P	25	M8	13	16,5	5	15	13	-	28	10	on request
02006-608X040	P	40	M8	13	16,5	5	15	13	-	28	10	on request
02006-610X015	P	15	M10	16	18	5	19,6	17	3	28	13	on request
02006-610X030	P	30	M10	16	18	5	19,6	17	3	28	13	on request
02006-610X050	P	50	M10	16	18	5	19,6	17	3	28	13	on request
02006-612X020	P	20	M12	21	21	6	21,9	19	5	24	15	on request
02006-612X040	P	40	M12	21	21	6	21,9	19	5	24	15	on request
02006-612X060	P	60	M12	21	21	6	21,9	19	5	24	15	on request
02006-616X025	P	25	M16	23	25	6	27,7	24	6	24	20	on request
02006-616X050	P	50	M16	23	25	6	27,7	24	6	24	20	on request
02006-616X080	P	80	M16	23	25	6	27,7	24	6	24	20	on request
