02388-05_RAPrism stands right-hand version |
go back |
|
Item description/product images |
|
|

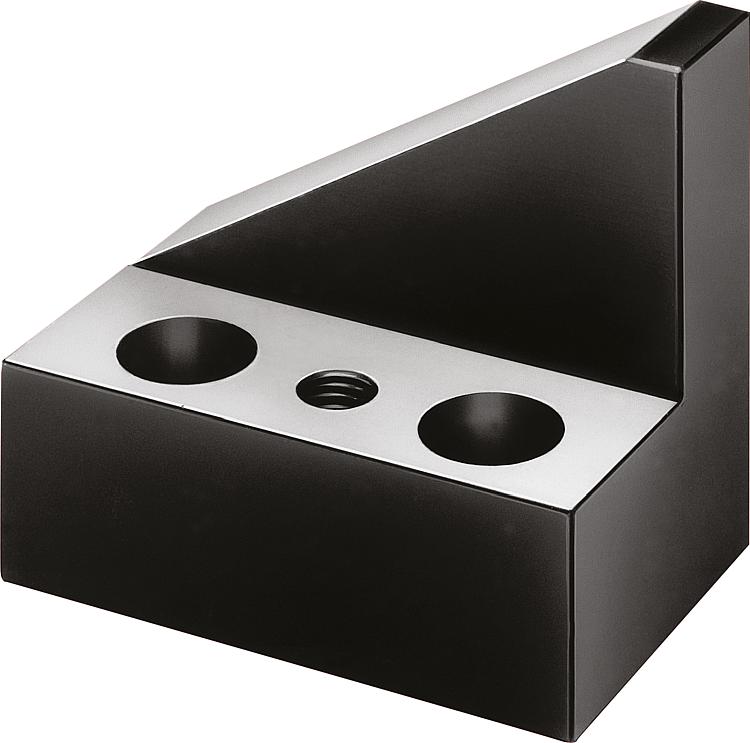

DescriptionMaterial:Carbon steel.Version:Black oxidised.
Half prism (30°) and contact faces ground.Note:Right-Hand Split V-Blocks are used for positioning round parts. Split V-Blocks permit adjustment to the respective workpiece diameter.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 1 | A | B | C | D
min. | D
max. | Suitable
shoulder screw
| CAD | Acc. | Price | Order |
|---|
| 02388-05-6301230 | right | 12 F7 | M12 | 23 | 50 | 600 | 07533-112055 |  | | on request | | | 02388-05-6301630 | right | 16 F7 | M16 | 20 | 50 | 600 | 07533-116055 | | | on request | |
