        Split V-blocks

Item description/product images

Show/filter all items

DescriptionMaterial:Carbon steel.Version:Black oxidised.
Half prism (30°) and contact faces ground.Note:Right-hand and left-hand split V-blocks are used for positioning round parts. Split V-blocks permit adjustment to the respective workpiece diameter.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02388-05 Split V-blocks

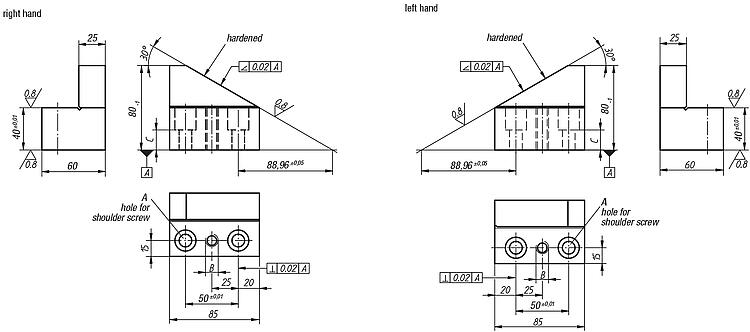

Drawings (total overview)

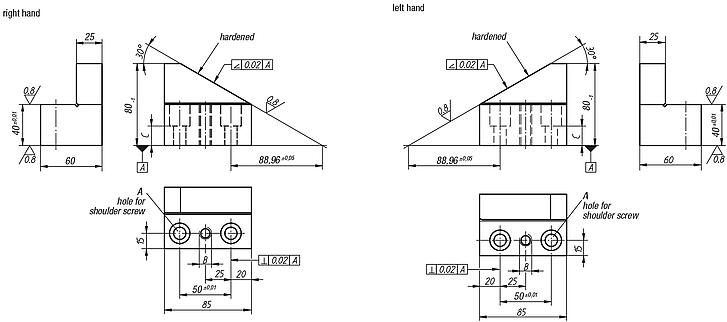

Split V-blocks

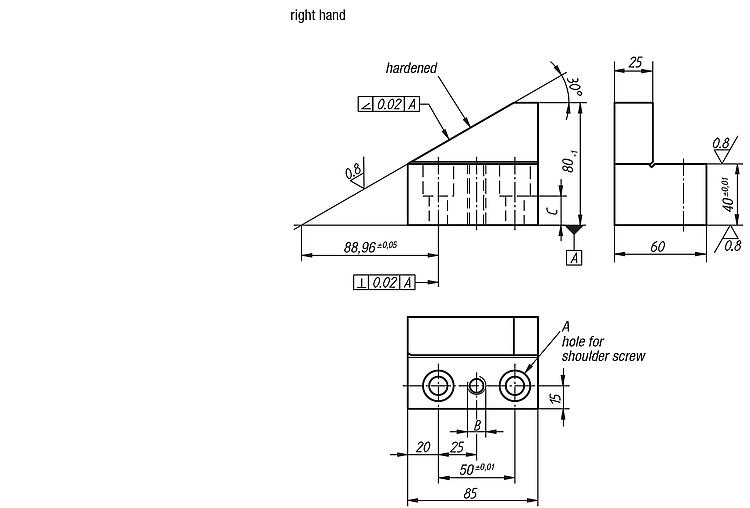

Prism stands right-hand version

More information

Drawings

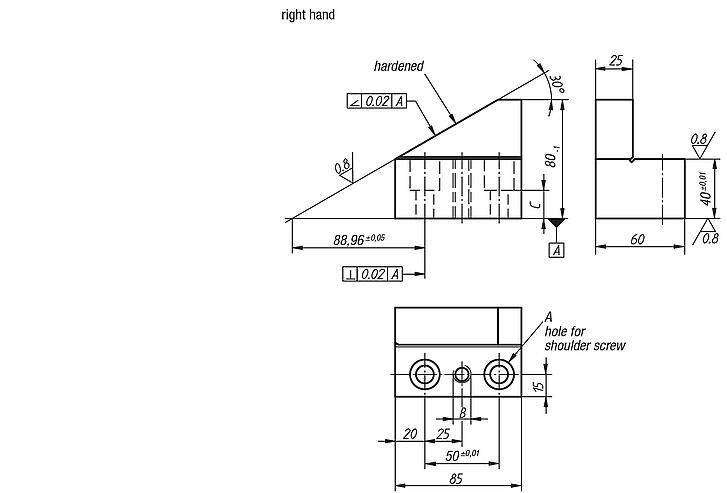

Prism stands right-hand version

Item selection/filter

Order No.	Version 1	A	B	C	D min.	D max.	Suitable shoulder screw	CAD	Acc.	Price	Order
02388-05-6301230	right	12 F7	M12	23	50	600	07533-112055			on request
02388-05-6301630	right	16 F7	M16	20	50	600	07533-116055			on request

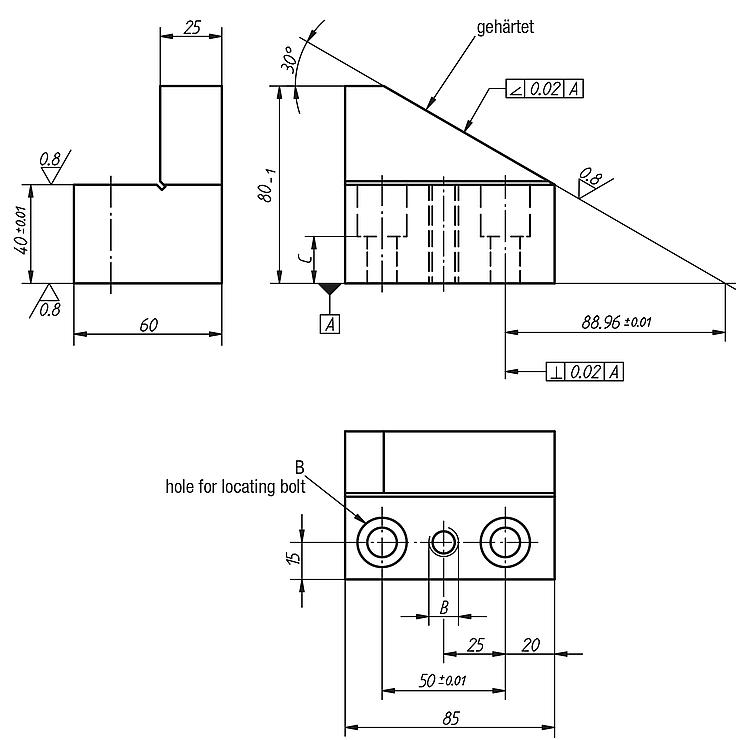

Prism stands left-hand version

More information

Drawings

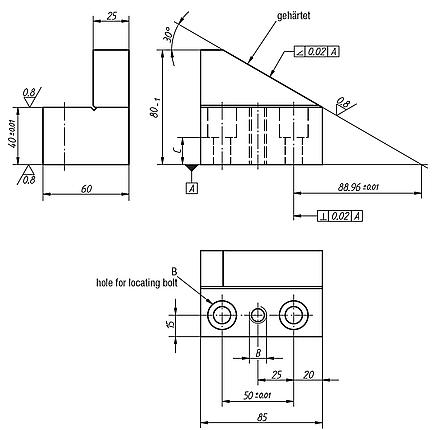

Prism stands left-hand version

Item selection/filter

Order No.	Version 1	A	B	C	D min.	D max.	Suitable shoulder screw	CAD	Acc.	Price	Order
02388-05-6311230	left	12 F7	M12	23	50	600	07533-112055			on request
02388-05-6311630	left	16 F7	M16	20	50	600	07533-116055			on request
