        Jack screws

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.Note:Various rests can be mounted on this jack screw.Drawing reference:

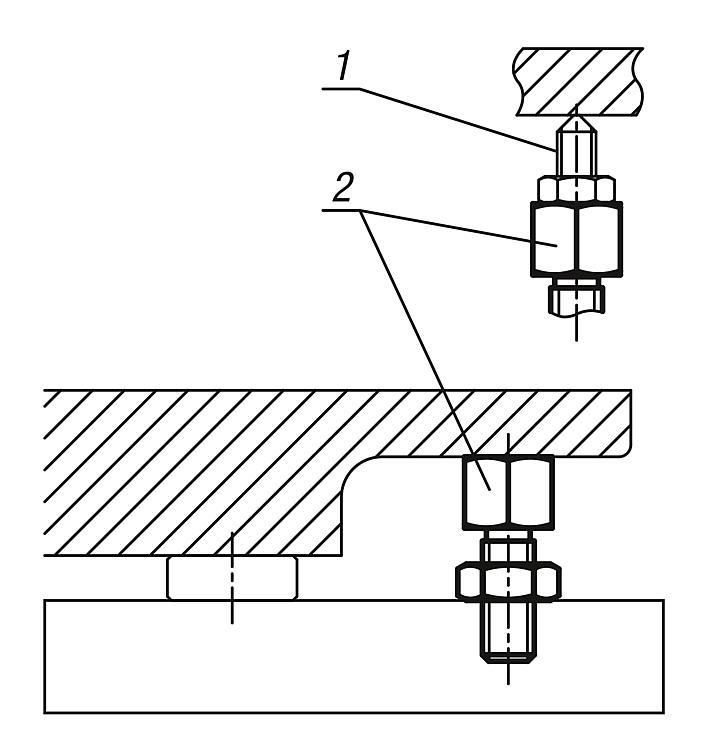

1) screw rest
2) jack screw

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02155 Jack screws

Drawings

Jack screws

Item selection/filter

Order No.	A	B	C	D	E	F	G	CAD	Acc.	Price	Order
02155-0803006	30	20	13	5	14,4	M8	M6 x 6			on request
02155-0804006	40	30	13	5	14,4	M8	M6 x 6			on request
02155-1003808	38	24	17	6	18,9	M10	M8 x 8			on request
02155-1004808	48	34	17	6	18,9	M10	M8 x 8			on request
02155-1205110	51	33	22	7	24,5	M12	M10 x 10			on request
02155-1206610	66	48	22	7	24,5	M12	M10 x 10			on request
02155-1606212	62	40	27	10	30,1	M16	M12 x 12			on request
02155-1607712	77	55	27	10	30,1	M16	M12 x 12			on request
