        Screw rest with flat face, stainless steel

Item description/product images

DescriptionMaterial:

Stainless steel 1.4305.

Version:Self-locking trapezoidal thread, spindle has end lock.Note:The through hole allows easy clamping and positioning of the workpiece.Drawing reference:

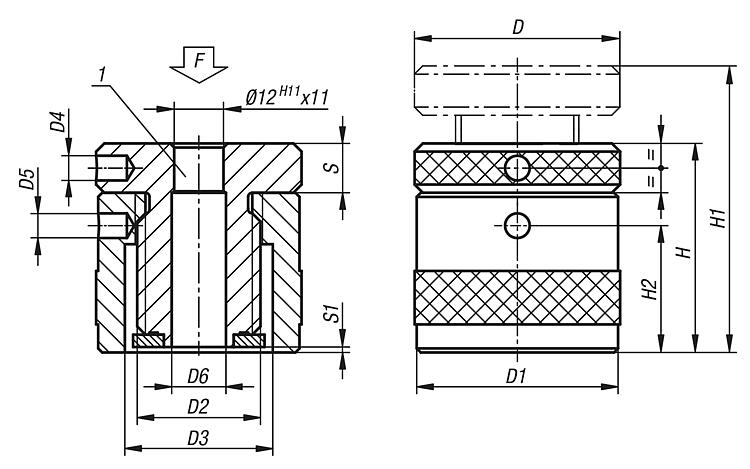

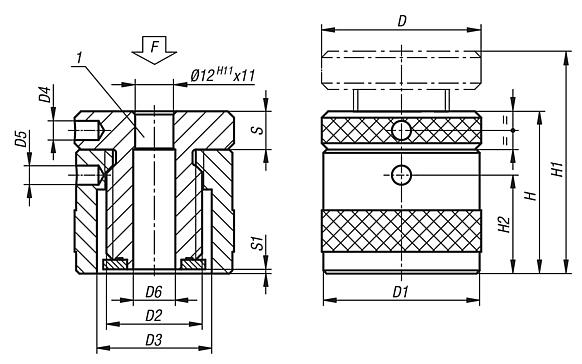

1) centring hole for 02210

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02171 Screw rest with flat face, stainless steel

233 kB

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	D4	D5	D6	H	H1	H2	S	S1	F max. kN	Price
02171-015	50	49	Tr 30X4	36	6	6	13	42	52	24	12	2	50	on request
02171-02	50	49	Tr 30X4	36	6	6	13	50	72	30	12	0,5	50	on request
02171-03	50	49	Tr 30X4	36	6	6	13	71	102	43	16	1,5	50	on request
