Screw rest with flat face and magnetic foot, aluminium

02182

Screw rest with flat face and magnetic foot, aluminium

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Support elements
        Screw rest with flat face and magnetic foot, aluminium

Item description/product images

DescriptionMaterial:Aluminium (400 N/mm² tensile strength).

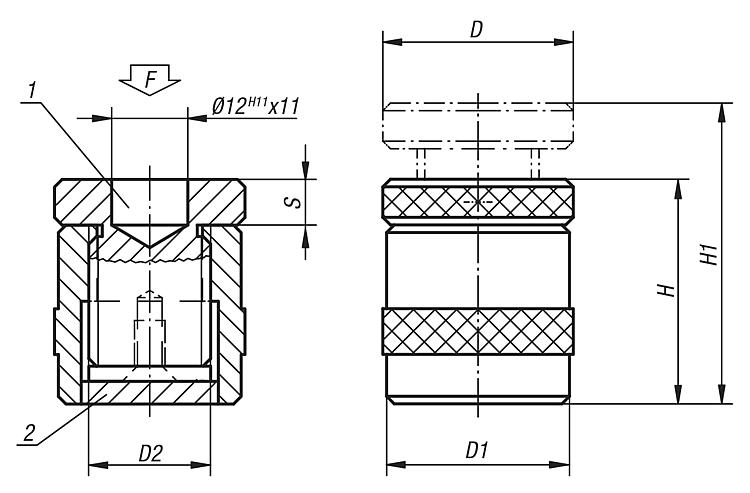

Spindle carbon steel.Version:Self-locking trapezoidal thread, spindle has end lock.Note:Suitable for horizontal and vertical applications. The magnetic foot allows durable and accurate vertical positioning of the workpiece.Drawing reference:

1) centring hole for 02210
2) magnetic foot

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02182 Screw rest with flat face and magnetic foot, aluminium

Drawings

Screw rest with flat face and magnetic foot, aluminium

Screw rest with flat face and magnetic foot, aluminium

Item selection/filter

Order No.	D	D1	D2	H	H1	S	F max. kN	CAD	Acc.	Price	Order
02182-01	50	50	Tr 30X4	52	62	12	30			on request
02182-02	50	50	Tr 30X4	60	80	12	30			on request
02182-03	50	50	Tr 30X4	80	110	12	30			on request
