Screw rest with flat face, steel

02170

Screw rest with flat face, steel

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Support elements
        Screw rest with flat face, steel

Item description/product images

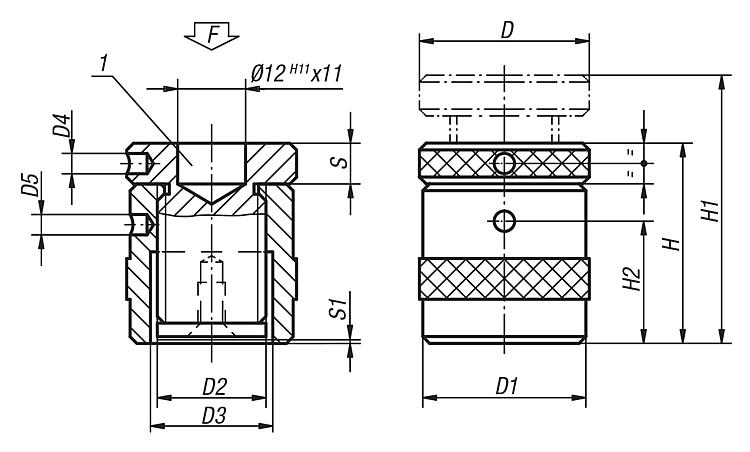

DescriptionMaterial:Carbon steel.Version:Painted, trapezoidal thread - self-locking, spindle has end lockNote:The version 02170-01 has no Ø 12 centring hole.Drawing reference:

1) centring hole for 02210

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02170 Screw rest with flat face, steel

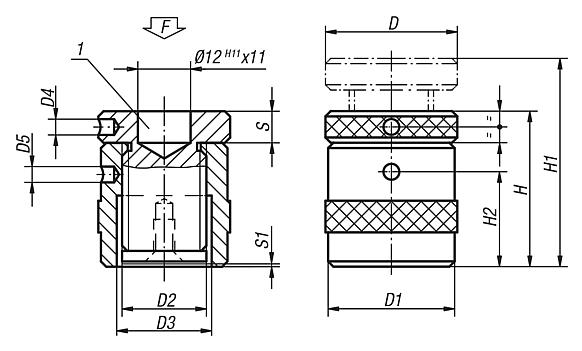

Drawings

Screw rest with flat face, steel

Item selection/filter

Order No.	D	D1	D2	D3	D4	D5	H	H1	H2	S	S1	F max. kN	CAD	Acc.	Price	Order
02170-01	31	31	Tr 20X4	23	4	4	38	52	23	8	2	15			on request
02170-015	50	49	Tr 30X4	36	6	6	42	52	24	12	2	60			on request
02170-02	50	49	Tr 30X4	36	6	6	50	72	30	12	0,5	60			on request
02170-03	50	49	Tr 30X4	36	6	6	71	102	43	16	1,5	60			on request
02170-04	65	70	Tr 40X7	43	6	6	100	140	58	25	2,5	100			on request
02170-05	70	80	Tr 50X8	55	6	6	140	212	90	30	4	170			on request
02170-06	80	100	Tr 65X10	70	6	8	190	300	126	34	5	350			on request
