03166Mounting plates for clamping collets |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Carbon steel 1.7262.

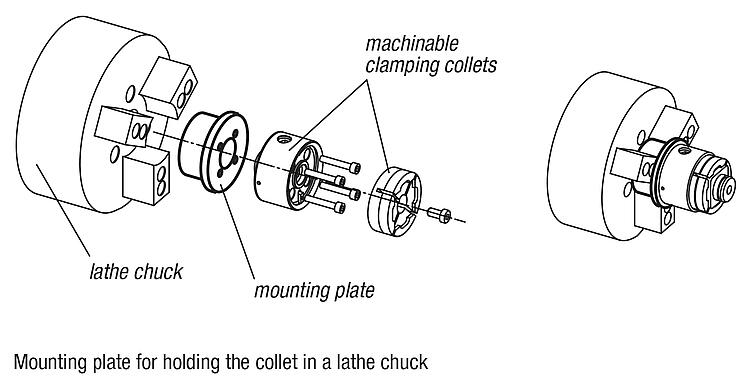

Version:Black oxidised and case-hardened.Note:Suitable for clamping collets
03166-065057 and 03166-090072. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | | | | | | | | | | | | Reset |
|---|
Order No.
| D | D1 | D2 | D4 | D5 | H | H1 | H3 | CAD | Acc. | Price | Order |
|---|
| 03166-065038 | 63 | 80 | 28 | M6x12 | 42 | 38 | 8 | 13 |  | | on request | | | 03166-090043 | 80 | 100 | 42 | M8x16 | 60 | 43 | 8 | 15 | | | on request | |
