Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock
03089

Indexing plungers, steel or stainless steel, short version with...

go back

Item description/product images

Show/filter all items
DescriptionMaterial:

Steel version:
Indexing pin hardened:
Threaded sleeve and indexing pin steel.

Stainless steel version:
Indexing pin not hardened:
Threaded sleeve and indexing pin 1.4305.

Mushroom knob black grey thermoplastic.
Thread lock blue polyamide.

Version:Steel version:
Indexing pin hardened, ground, black oxidised.

Stainless steel version:
Indexing pin not hardened, ground, bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form CP is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.
The thread lock enables the plunger to be screwed in to the exact depth required, no spacer ring is required.
The thread lock is a gripping polyamide coating that is applied punctiform (spot).
On request:Special versions.Accessory:Spacer rings 03089.
fastening sets for thin-walled parts 03094-10.

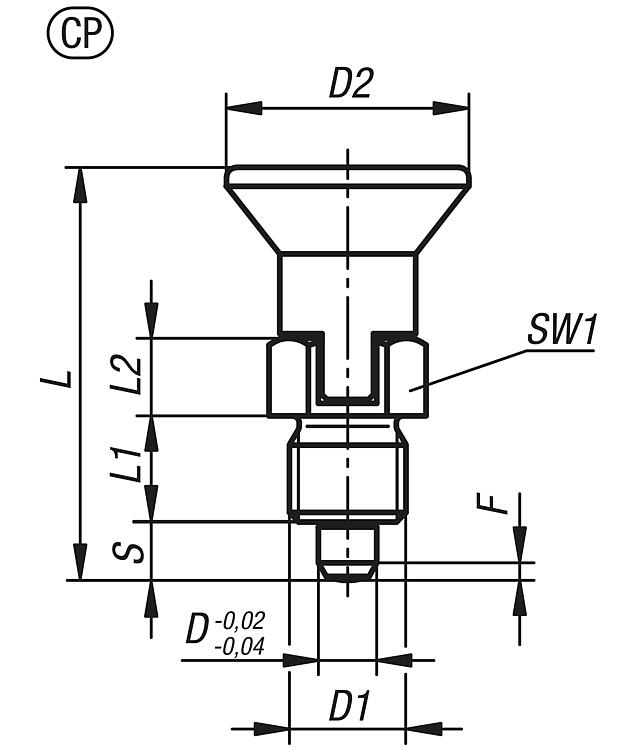

Drawing reference:
Form AP: non-lockout type, without locknut
Form CP: lockout type, without locknut
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 03089 Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock 207 kB

Drawings (total overview)

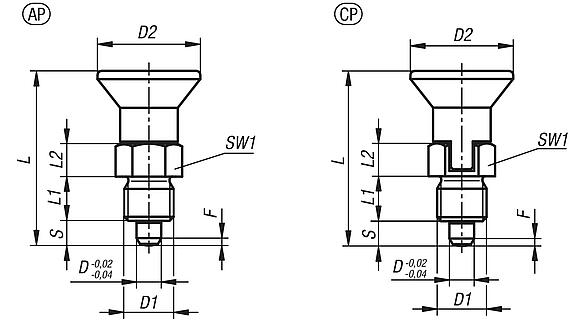

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock

More information

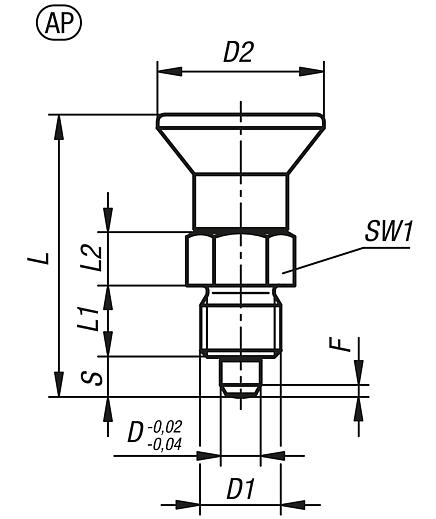

Drawings

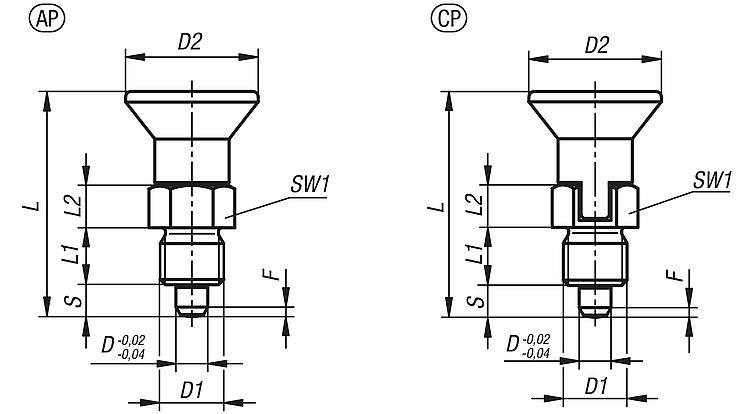

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock

Overview of items (compressed)

Item selection/filter
Order No.
steel
Order No.
stainless steel
FormDD1D2LL1L2Travel
S
SW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Filter
03089-9590303089-195903AP3M6x0,751425,5653,580,8410
03089-9500403089-195004AP4M8x11829,5664101412
03089-9510503089-195105AP5M10x12134,5875131,3512
03089-9520603089-195206AP6M12x1,52541,71086141,8614
03089-9530803089-195308AP8M16x1,5335412108192,31428
03089-9541003089-195410AP10M20x1,53361151210222,81532
