Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

03089

Indexing plungers, steel or stainless steel, short version with...

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Indexing plungers
        Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

Item description/product images

Show/filter all items

DescriptionMaterial:

Steel version
Indexing pin hardened:
grade 5.8

Stainless steel version
Indexing pin not hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4305.

Mushroom grip thermoplastic, black-grey or traffic red RAL 3020.

Version:Steel version:
Indexing pin hardened, ground, black oxidised.

Stainless steel version:
Indexing pin not hardened, ground, bright.Note:Indexing plungers are used to prevent any change in position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.On request:Special versions.Accessory:Spacer rings 03089Drawing reference:

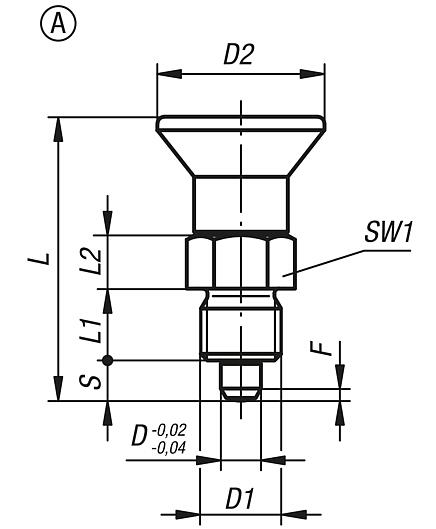

Form A: non-lockout type, without locknut

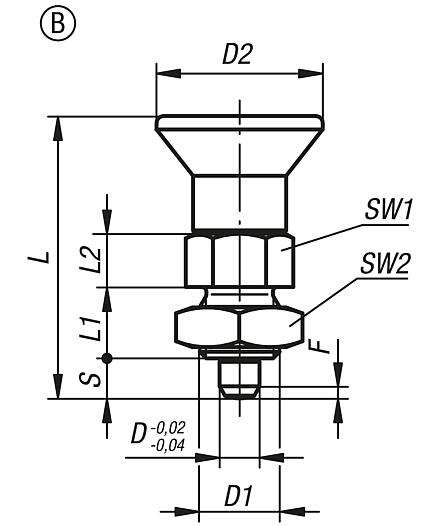

Form B: non-lockout type, with locknut

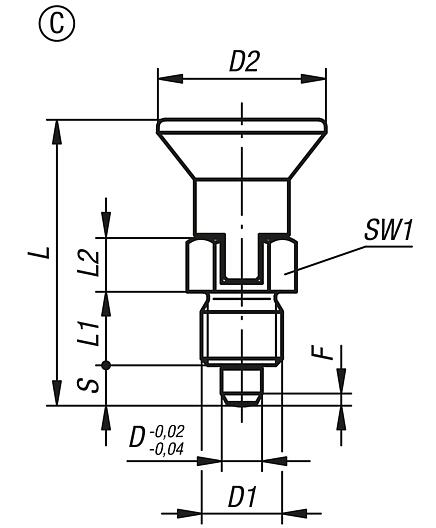

Form C: lockout type, without locknut

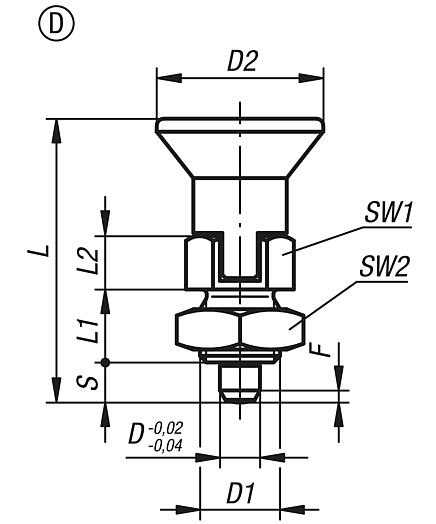

Form D: lockout type, with locknut

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03089 Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

Drawings (total overview)

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

More information

Drawings

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

Item selection/filter

Order No.	Form	Main material	Surface finish body	Component colour	D	D1	D2	L	L1	L2	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-5903	A	steel	hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-5004	A	steel	hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-5105	A	steel	hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-5206	A	steel	hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-5308	A	steel	hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-5410	A	steel	hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request
03089-590384	A	steel	hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-500484	A	steel	hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-510584	A	steel	hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-520684	A	steel	hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-530884	A	steel	hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-541084	A	steel	hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request
03089-15903	A	stainless steel	not hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-15004	A	stainless steel	not hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-15105	A	stainless steel	not hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-15206	A	stainless steel	not hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-15308	A	stainless steel	not hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-15410	A	stainless steel	not hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request
03089-1590384	A	stainless steel	not hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-1500484	A	stainless steel	not hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-1510584	A	stainless steel	not hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-1520684	A	stainless steel	not hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-1530884	A	stainless steel	not hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-1541084	A	stainless steel	not hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and locknut

More information

Drawings

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and locknut

Item selection/filter

Order No.	Form	Main material	Surface finish body	Component colour	D	D1	D2	L	L1	L2	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-6903	B	steel	hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-6004	B	steel	hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-6105	B	steel	hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-6206	B	steel	hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-6308	B	steel	hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-6410	B	steel	hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request
03089-690384	B	steel	hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-600484	B	steel	hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-610584	B	steel	hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-620684	B	steel	hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-630884	B	steel	hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-641084	B	steel	hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request
03089-16903	B	stainless steel	not hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-16004	B	stainless steel	not hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-16105	B	stainless steel	not hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-16206	B	stainless steel	not hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-16308	B	stainless steel	not hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-16410	B	stainless steel	not hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request
03089-1690384	B	stainless steel	not hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-1600484	B	stainless steel	not hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-1610584	B	stainless steel	not hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-1620684	B	stainless steel	not hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-1630884	B	stainless steel	not hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-1641084	B	stainless steel	not hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and locking slot

More information

Drawings

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and locking slot

Item selection/filter

Order No.	Form	Main material	Surface finish body	Component colour	D	D1	D2	L	L1	L2	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-7903	C	steel	hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-7004	C	steel	hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-7105	C	steel	hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-7206	C	steel	hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-7308	C	steel	hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-7410	C	steel	hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request
03089-790384	C	steel	hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-700484	C	steel	hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-710584	C	steel	hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-720684	C	steel	hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-730884	C	steel	hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-741084	C	steel	hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request
03089-17903	C	stainless steel	not hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-17004	C	stainless steel	not hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-17105	C	stainless steel	not hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-17206	C	stainless steel	not hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-17308	C	stainless steel	not hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-17410	C	stainless steel	not hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request
03089-1790384	C	stainless steel	not hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	0,8	4	10			on request
03089-1700484	C	stainless steel	not hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	1	4	12			on request
03089-1710584	C	stainless steel	not hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	1,3	5	12			on request
03089-1720684	C	stainless steel	not hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	1,8	6	14			on request
03089-1730884	C	stainless steel	not hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	2,3	14	28			on request
03089-1741084	C	stainless steel	not hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	2,8	15	32			on request

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip, locking slot and locknut

More information

Drawings

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip, locking slot and locknut

Item selection/filter

Order No.	Form	Main material	Surface finish body	Component colour	D	D1	D2	L	L1	L2	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-8903	D	steel	hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-8004	D	steel	hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-8105	D	steel	hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-8206	D	steel	hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-8308	D	steel	hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-8410	D	steel	hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request
03089-890384	D	steel	hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-800484	D	steel	hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-810584	D	steel	hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-820684	D	steel	hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-830884	D	steel	hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-841084	D	steel	hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request
03089-18903	D	stainless steel	not hardened	black grey RAL 7021	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-18004	D	stainless steel	not hardened	black grey RAL 7021	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-18105	D	stainless steel	not hardened	black grey RAL 7021	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-18206	D	stainless steel	not hardened	black grey RAL 7021	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-18308	D	stainless steel	not hardened	black grey RAL 7021	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-18410	D	stainless steel	not hardened	black grey RAL 7021	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request
03089-1890384	D	stainless steel	not hardened	traffic red RAL 3020	3	M6x0,75	14	25,5	6	5	3,5	8	10	0,8	4	10			on request
03089-1800484	D	stainless steel	not hardened	traffic red RAL 3020	4	M8x1	18	29,5	6	6	4	10	13	1	4	12			on request
03089-1810584	D	stainless steel	not hardened	traffic red RAL 3020	5	M10x1	21	34,5	8	7	5	13	17	1,3	5	12			on request
03089-1820684	D	stainless steel	not hardened	traffic red RAL 3020	6	M12x1,5	25	41,7	10	8	6	14	19	1,8	6	14			on request
03089-1830884	D	stainless steel	not hardened	traffic red RAL 3020	8	M16x1,5	33	54	12	10	8	19	24	2,3	14	28			on request
03089-1841084	D	stainless steel	not hardened	traffic red RAL 3020	10	M20x1,5	33	61	15	12	10	22	30	2,8	15	32			on request
