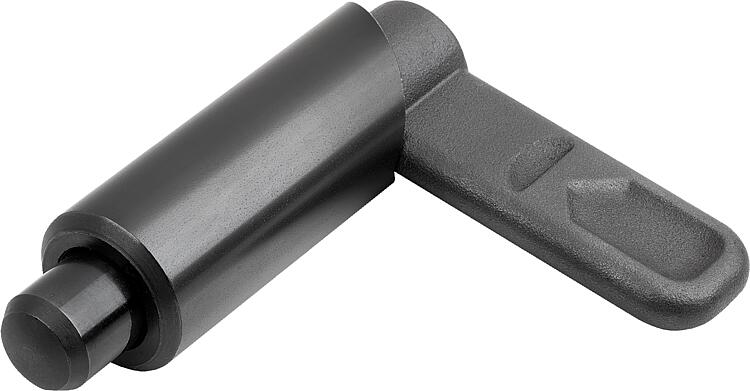

        Cam-action indexing plungers, Form E, without grip cap

Item description/product images

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Sleeve 1.0403.
Indexing pin free-cutting steel.
Spring 1.4310.Version:Sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.Note:If the cam-action indexing plunger is to be welded on, the sleeve should be tack welded so that the spring is not thermally damaged from the high temperatures.Advantages:Turning the grip through 180° retracts the pin.
Smooth sleeve, Connecting option via adapter sleeveOn request:Special versions.
Accessory:Positioning bushes 03099-50, 03099-60, 03099-61.
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-10_E Cam-action indexing plungers, Form E, without grip cap

148 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	L	L1	B	B1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-10-080410	E	4	10	38,5	25	9	3	6	1	8	14	on request
03099-10-080510	E	5	10	38,5	25	9	3	6	1,3	8	14	on request
03099-10-080610	E	6	10	38,5	25	9	3	6	1,8	8	14	on request
03099-10-080512	E	5	12	47,4	30	10,8	3,6	8	1,3	8	14	on request
03099-10-080612	E	6	12	47,4	30	10,8	3,6	8	1,8	8	14	on request
03099-10-080812	E	8	12	47,4	30	10,8	3,6	8	2,3	8	14	on request
03099-10-080616	E	6	16	61,2	40	14,4	4,8	10	1,8	15	35	on request
03099-10-080816	E	8	16	61,2	40	14,4	4,8	10	2,3	15	35	on request
03099-10-081016	E	10	16	61,2	40	14,4	4,8	10	2,8	15	35	on request
03099-10-080820	E	8	20	71	50	18	6	12	2,3	20	60	on request
03099-10-081020	E	10	20	71	50	18	6	12	2,8	20	60	on request
03099-10-081220	E	12	20	71	50	18	6	12	3	20	60	on request
