Cam-action indexing plungers

03099-10

Cam-action indexing plungers

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Indexing plungers
        Cam-action indexing plungers

Item description/product images

Show/filter all items

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Sleeve 1.0403.
Indexing pin free-cutting steel.
Spring 1.4310.
Grip cap thermoplastic PAVersion:Sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.

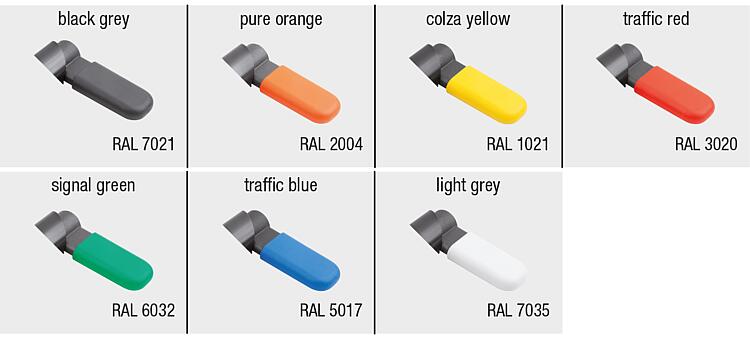

Grip cap in various colours:
-black grey RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-light grey RAL 7035.Note:If the cam-action indexing plunger is to be welded on, the sleeve should be tack welded so that the spring is not thermally damaged from the high temperatures.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Smooth sleeve, Connecting option via adapter sleeveOn request:Special versions.
Accessory:Positioning bushes 03099-50, 03099-60, 03099-61.

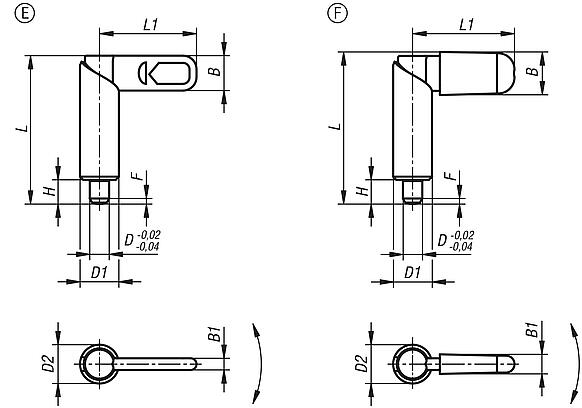

Drawing reference:

Form E: without grip cap
Form F: with grip cap

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-10 Cam-action indexing plungers

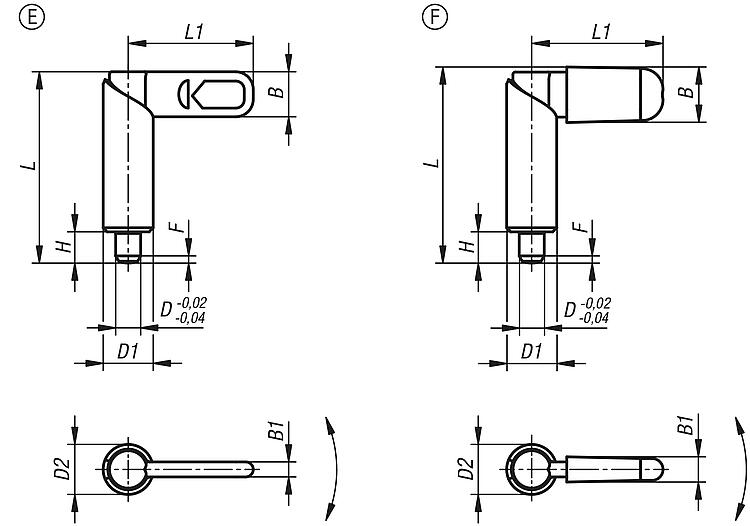

Drawings (total overview)

Cam-action indexing plungers

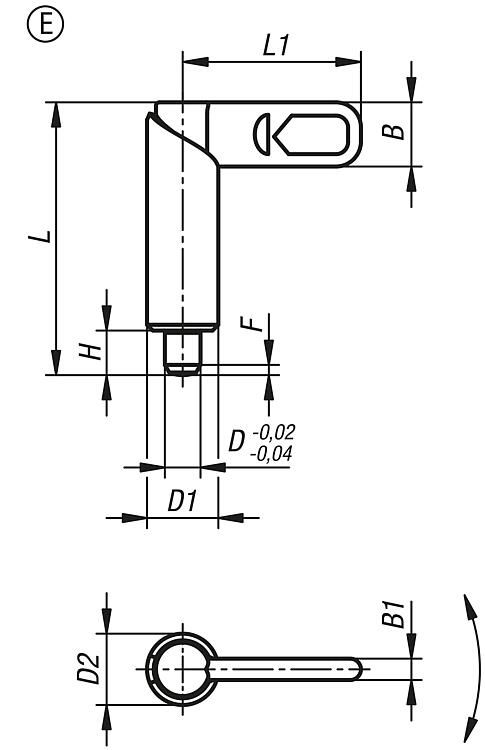

Cam-action indexing plungers, Form E, without grip cap

More information

Drawings

Cam-action indexing plungers, Form E, without grip cap

Item selection/filter

	E	4 5 6 8 10 12	10 12 16 20	38,5 47,4 61,2 71	25 30 40 50	9 10,8 14,4 18	3 3,6 4,8 6	6 8 10 12	1 1,3 1,8 2,3 2,8 3	8 15 20	14 35 60				Reset
Order No.	Form	D	D1	L	L1	B	B1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03099-10-080410	E	4	10	38,5	25	9	3	6	1	8	14			on request
03099-10-080510	E	5	10	38,5	25	9	3	6	1,3	8	14			on request
03099-10-080610	E	6	10	38,5	25	9	3	6	1,8	8	14			on request
03099-10-080512	E	5	12	47,4	30	10,8	3,6	8	1,3	8	14			on request
03099-10-080612	E	6	12	47,4	30	10,8	3,6	8	1,8	8	14			on request
03099-10-080812	E	8	12	47,4	30	10,8	3,6	8	2,3	8	14			on request
03099-10-080616	E	6	16	61,2	40	14,4	4,8	10	1,8	15	35			on request
03099-10-080816	E	8	16	61,2	40	14,4	4,8	10	2,3	15	35			on request
03099-10-081016	E	10	16	61,2	40	14,4	4,8	10	2,8	15	35			on request
03099-10-080820	E	8	20	71	50	18	6	12	2,3	20	60			on request
03099-10-081020	E	10	20	71	50	18	6	12	2,8	20	60			on request
03099-10-081220	E	12	20	71	50	18	6	12	3	20	60			on request

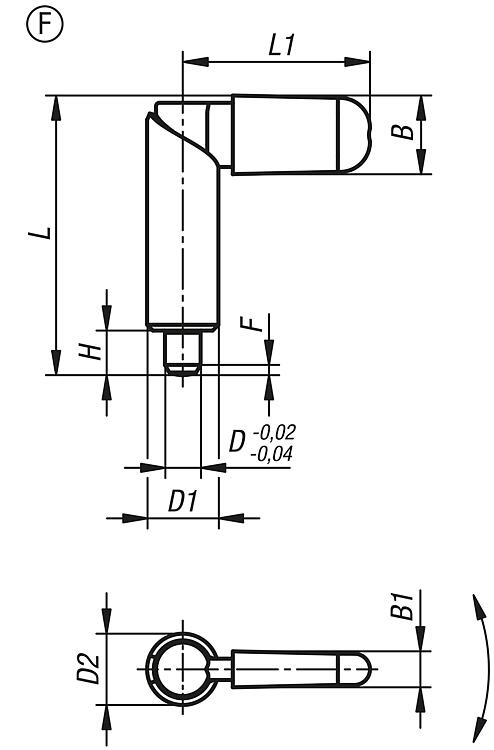

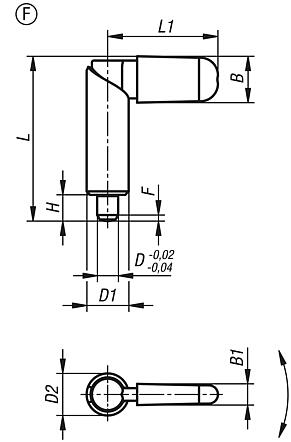

Cam-action indexing plungers, Form F, with grip cap

More information

Drawings

Cam-action indexing plungers, Form F, with grip cap

Item selection/filter

	F	black grey RAL 7021 orange RAL 2004 colza yellow RAL 1021 traffic red RAL 3020 signal green RAL 6032 traffic blue RAL 5017 light grey RAL 7035	4 5 6 8 10 12	10 12 16 20	39,5 48,4 62,3 62,8 72,3	26,3 31,1 41,5 51,3	10,9 12,9 16,6 20,5	4,9 5,7 7 8,5	6 8 10 12	1 1,3 1,8 2,3 2,8 3	8 15 20	14 35 60				Reset
Order No.	Form	Component colour	D	D1	L	L1	B	B1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03099-10-090410	F	black grey RAL 7021	4	10	39,5	26,3	10,9	4,9	6	1	8	14			on request
03099-10-090510	F	black grey RAL 7021	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14			on request
03099-10-090610	F	black grey RAL 7021	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14			on request
03099-10-090512	F	black grey RAL 7021	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14			on request
03099-10-090612	F	black grey RAL 7021	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14			on request
03099-10-090812	F	black grey RAL 7021	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14			on request
03099-10-090616	F	black grey RAL 7021	6	16	62,3	41,5	16,6	7	10	1,8	15	35			on request
03099-10-090816	F	black grey RAL 7021	8	16	62,3	41,5	16,6	7	10	2,3	15	35			on request
03099-10-091016	F	black grey RAL 7021	10	16	62,8	41,5	16,6	7	10	2,8	15	35			on request
03099-10-090820	F	black grey RAL 7021	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60			on request
03099-10-091020	F	black grey RAL 7021	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60			on request
03099-10-091220	F	black grey RAL 7021	12	20	72,3	51,3	20,5	8,5	12	3	20	60			on request
03099-10-0904102	F	orange RAL 2004	4	10	39,5	26,3	10,9	4,9	6	1	8	14			on request
03099-10-0905102	F	orange RAL 2004	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14			on request
03099-10-0906102	F	orange RAL 2004	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14			on request
03099-10-0905122	F	orange RAL 2004	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14			on request
03099-10-0906122	F	orange RAL 2004	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14			on request
03099-10-0908122	F	orange RAL 2004	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14			on request
03099-10-0906162	F	orange RAL 2004	6	16	62,3	41,5	16,6	7	10	1,8	15	35			on request
03099-10-0908162	F	orange RAL 2004	8	16	62,3	41,5	16,6	7	10	2,3	15	35			on request
03099-10-0910162	F	orange RAL 2004	10	16	62,8	41,5	16,6	7	10	2,8	15	35			on request
03099-10-0908202	F	orange RAL 2004	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60			on request
03099-10-0910202	F	orange RAL 2004	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60			on request
03099-10-0912202	F	orange RAL 2004	12	20	72,3	51,3	20,5	8,5	12	3	20	60			on request
03099-10-09041016	F	colza yellow RAL 1021	4	10	39,5	26,3	10,9	4,9	6	1	8	14			on request
03099-10-09051016	F	colza yellow RAL 1021	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14			on request
03099-10-09061016	F	colza yellow RAL 1021	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14			on request
03099-10-09051216	F	colza yellow RAL 1021	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14			on request
03099-10-09061216	F	colza yellow RAL 1021	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14			on request
03099-10-09081216	F	colza yellow RAL 1021	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14			on request
03099-10-09061616	F	colza yellow RAL 1021	6	16	62,3	41,5	16,6	7	10	1,8	15	35			on request
03099-10-09081616	F	colza yellow RAL 1021	8	16	62,3	41,5	16,6	7	10	2,3	15	35			on request
03099-10-09101616	F	colza yellow RAL 1021	10	16	62,8	41,5	16,6	7	10	2,8	15	35			on request
03099-10-09082016	F	colza yellow RAL 1021	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60			on request
03099-10-09102016	F	colza yellow RAL 1021	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60			on request
03099-10-09122016	F	colza yellow RAL 1021	12	20	72,3	51,3	20,5	8,5	12	3	20	60			on request
03099-10-09041084	F	traffic red RAL 3020	4	10	39,5	26,3	10,9	4,9	6	1	8	14			on request
03099-10-09051084	F	traffic red RAL 3020	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14			on request
03099-10-09061084	F	traffic red RAL 3020	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14			on request
03099-10-09051284	F	traffic red RAL 3020	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14			on request
03099-10-09061284	F	traffic red RAL 3020	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14			on request
03099-10-09081284	F	traffic red RAL 3020	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14			on request
03099-10-09061684	F	traffic red RAL 3020	6	16	62,3	41,5	16,6	7	10	1,8	15	35			on request
03099-10-09081684	F	traffic red RAL 3020	8	16	62,3	41,5	16,6	7	10	2,3	15	35			on request
03099-10-09101684	F	traffic red RAL 3020	10	16	62,8	41,5	16,6	7	10	2,8	15	35			on request
03099-10-09082084	F	traffic red RAL 3020	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60			on request
03099-10-09102084	F	traffic red RAL 3020	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60			on request
03099-10-09122084	F	traffic red RAL 3020	12	20	72,3	51,3	20,5	8,5	12	3	20	60			on request
03099-10-09041086	F	signal green RAL 6032	4	10	39,5	26,3	10,9	4,9	6	1	8	14			on request
03099-10-09051086	F	signal green RAL 6032	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14			on request
03099-10-09061086	F	signal green RAL 6032	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14			on request
03099-10-09051286	F	signal green RAL 6032	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14			on request
03099-10-09061286	F	signal green RAL 6032	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14			on request
03099-10-09081286	F	signal green RAL 6032	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14			on request
03099-10-09061686	F	signal green RAL 6032	6	16	62,3	41,5	16,6	7	10	1,8	15	35			on request
03099-10-09081686	F	signal green RAL 6032	8	16	62,3	41,5	16,6	7	10	2,3	15	35			on request
03099-10-09101686	F	signal green RAL 6032	10	16	62,8	41,5	16,6	7	10	2,8	15	35			on request
03099-10-09082086	F	signal green RAL 6032	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60			on request
03099-10-09102086	F	signal green RAL 6032	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60			on request
03099-10-09122086	F	signal green RAL 6032	12	20	72,3	51,3	20,5	8,5	12	3	20	60			on request
03099-10-09041087	F	traffic blue RAL 5017	4	10	39,5	26,3	10,9	4,9	6	1	8	14			on request
03099-10-09051087	F	traffic blue RAL 5017	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14			on request
03099-10-09061087	F	traffic blue RAL 5017	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14			on request
03099-10-09051287	F	traffic blue RAL 5017	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14			on request
03099-10-09061287	F	traffic blue RAL 5017	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14			on request
03099-10-09081287	F	traffic blue RAL 5017	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14			on request
03099-10-09061687	F	traffic blue RAL 5017	6	16	62,3	41,5	16,6	7	10	1,8	15	35			on request
03099-10-09081687	F	traffic blue RAL 5017	8	16	62,3	41,5	16,6	7	10	2,3	15	35			on request
03099-10-09101687	F	traffic blue RAL 5017	10	16	62,8	41,5	16,6	7	10	2,8	15	35			on request
03099-10-09082087	F	traffic blue RAL 5017	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60			on request
03099-10-09102087	F	traffic blue RAL 5017	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60			on request
03099-10-09122087	F	traffic blue RAL 5017	12	20	72,3	51,3	20,5	8,5	12	3	20	60			on request
03099-10-09041088	F	light grey RAL 7035	4	10	39,5	26,3	10,9	4,9	6	1	8	14			on request
03099-10-09051088	F	light grey RAL 7035	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14			on request
03099-10-09061088	F	light grey RAL 7035	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14			on request
03099-10-09051288	F	light grey RAL 7035	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14			on request
03099-10-09061288	F	light grey RAL 7035	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14			on request
03099-10-09081288	F	light grey RAL 7035	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14			on request
03099-10-09061688	F	light grey RAL 7035	6	16	62,3	41,5	16,6	7	10	1,8	15	35			on request
03099-10-09081688	F	light grey RAL 7035	8	16	62,3	41,5	16,6	7	10	2,3	15	35			on request
03099-10-09101688	F	light grey RAL 7035	10	16	62,8	41,5	16,6	7	10	2,8	15	35			on request
03099-10-09082088	F	light grey RAL 7035	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60			on request
03099-10-09102088	F	light grey RAL 7035	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60			on request
03099-10-09122088	F	light grey RAL 7035	12	20	72,3	51,3	20,5	8,5	12	3	20	60			on request
