        Locating pins, removable, Form A and C
        Locating pins, removable, Form C

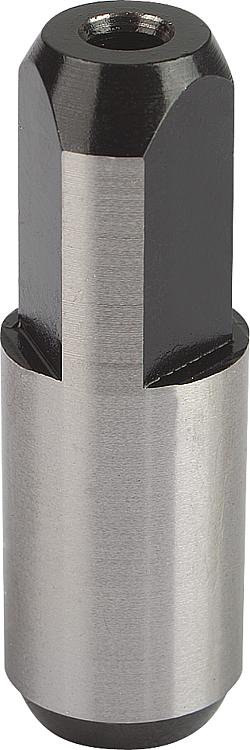

Item description/product images

DescriptionMaterial:Tool steel.Version:Hardened and ground (HRC 56 +2).Note:The locating pins can be easily removed with an extractor.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03105_C Locating pins, removable, Form C

135 kB

Drawings

Item selection/filter

Order No.	Form	D	D3	L	L1	B	Price
03105-082	C	8	M3	25	14	2,2	on request
03105-102	C	10	M3	30	17	3	on request
03105-122	C	12	M5	34	20	3,5	on request
03105-162	C	16	M5	42	26	5	on request
03105-202	C	20	M5	47	30	6	on request
03105-252	C	25	M5	49	30	8	on request
