        Locating pins, removable, Form A and C

Item description/product images

DescriptionMaterial:Tool steel.Version:Hardened and ground (HRC 56 +2).Note:The locating pins can be easily removed with an extractor.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03105 Locating pins removable Form A and C

136 kB

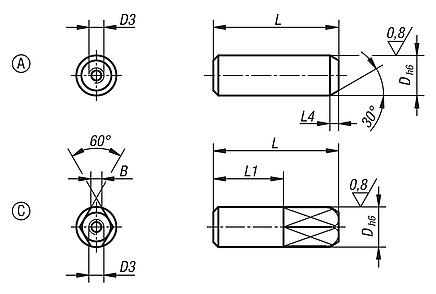

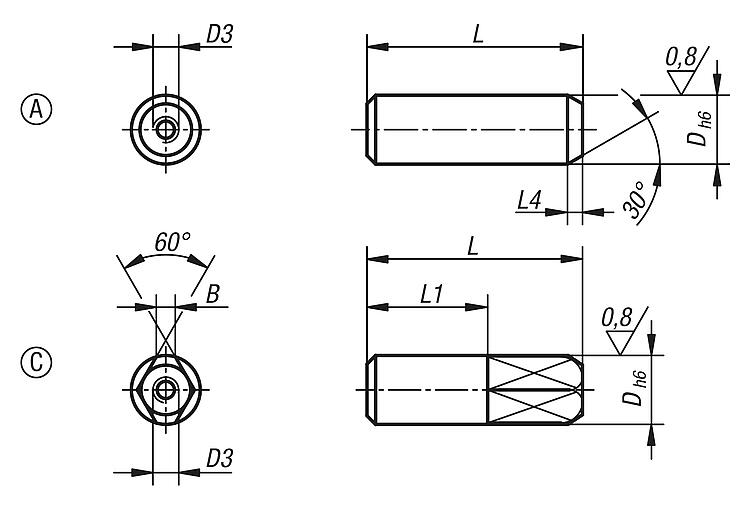

Drawings (total overview)

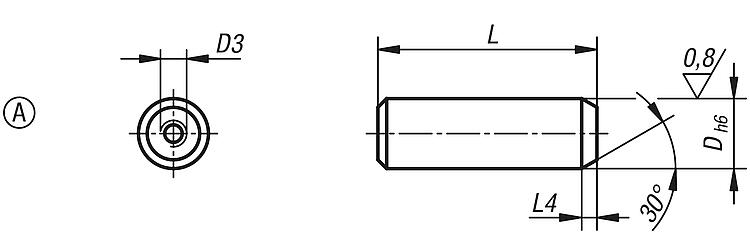

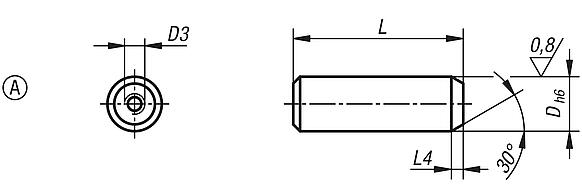

Locating pins, removable, Form A

More information

Drawings

Item selection/filter

	A	8 10 12 16 20 25	M3 M5	25 30 34 42 47 49	3 4 5				Reset
Order No.	Form	D	D3	L	L4	CAD	Acc.	Price	Order
03105-08	A	8	M3	25	3			on request
03105-10	A	10	M3	30	3			on request
03105-12	A	12	M5	34	4			on request
03105-16	A	16	M5	42	4			on request
03105-20	A	20	M5	47	5			on request
03105-25	A	25	M5	49	5			on request

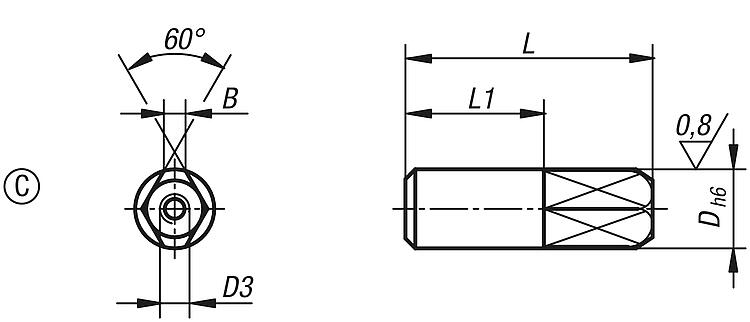

Locating pins, removable, Form C

More information

Drawings

Item selection/filter

	C	8 10 12 16 20 25	M3 M5	25 30 34 42 47 49	14 17 20 26 30	2,2 3 3,5 5 6 8				Reset
Order No.	Form	D	D3	L	L1	B	CAD	Acc.	Price	Order
03105-082	C	8	M3	25	14	2,2			on request
03105-102	C	10	M3	30	17	3			on request
03105-122	C	12	M5	34	20	3,5			on request
03105-162	C	16	M5	42	26	5			on request
03105-202	C	20	M5	47	30	6			on request
03105-252	C	25	M5	49	30	8			on request
