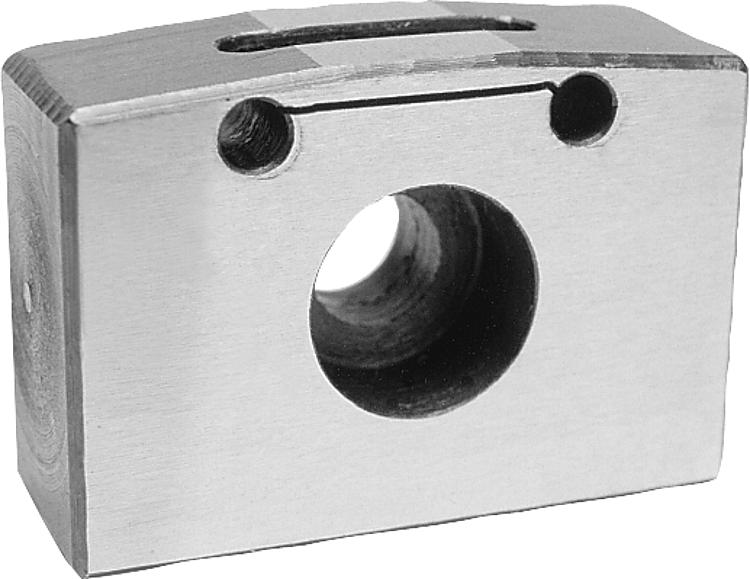

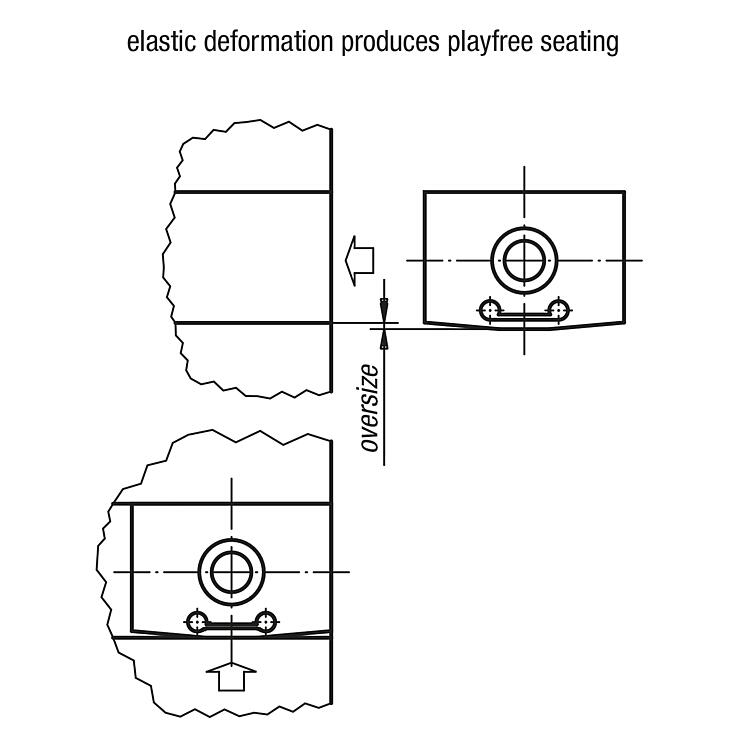

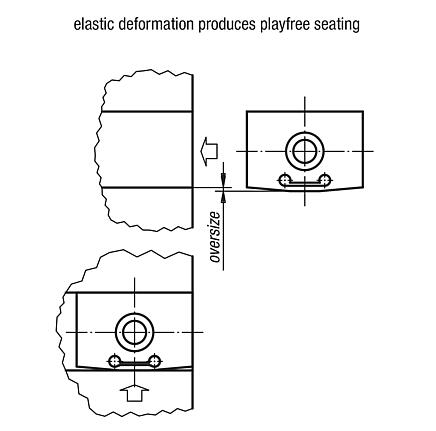

DescriptionMaterial:Steel.Version:Case-hardened, black oxidised and ground.Note:Elastic slot keys are used to align fixtures and clamps play-free on machine tables with DIN 650 T-slots.Advantages:- Play-free seating through elastic deformation. - The two-part sprung face allows the tolerance play of the guide slots in the machine table and fixture/clamp to be independently equalised. - Repeat accuracies within 0.005 mm are possible.Drawing reference:

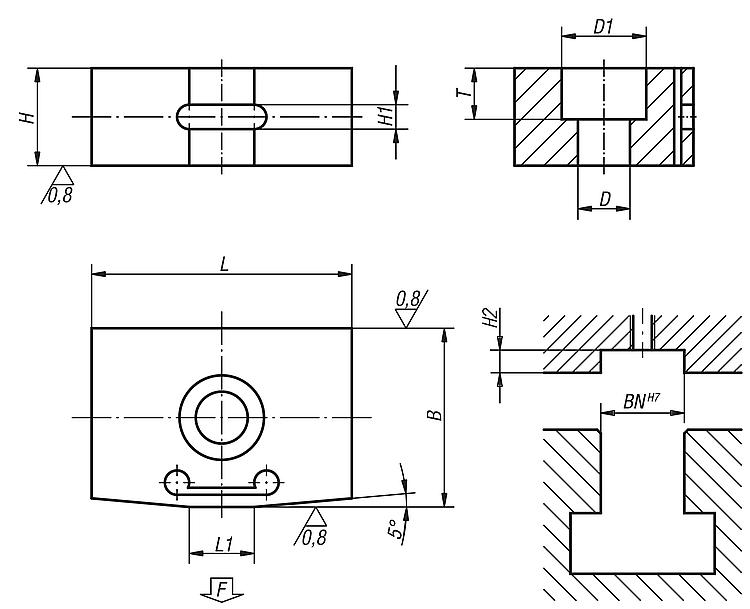

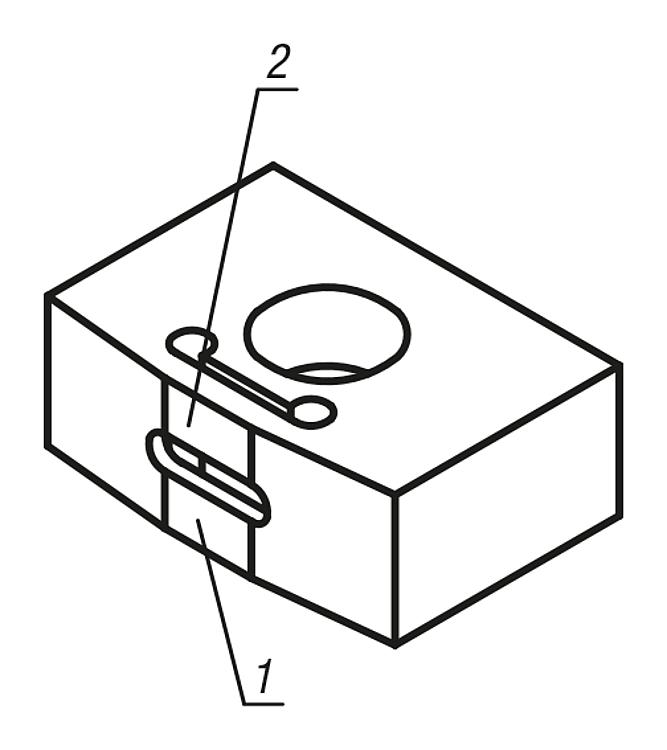

Independent compensation of two different slot dimensions
Spring surface 1: Adjusted to the guide slot of the add-on part (fixture/chucking tool).
Spring surface 2: Adjusted to the guide slot of the supporting table.
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
