Woodruff keys DIN 6888
 03289

Woodruff keys DIN 6888

 go back

Item description/product images
DescriptionMaterial:Steel 1.1192Version:Bright.On request:

Stainless steel 1.4571 woodruff keys.

Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 03289 Woodruff keys DIN 6888 111 kB
Overview of standards for fasteners 687 kB

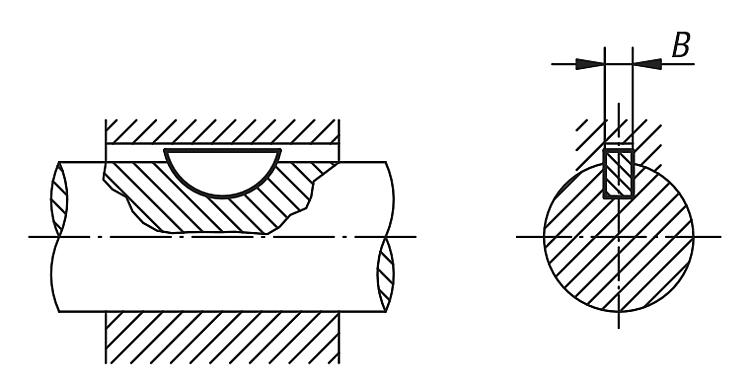

Drawings

Woodruff keys DIN 6888

Item selection/filter


  •
  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 10

  •
  • 5
  • 6,5
  • 7,5
  • 9
  • 10
  • 11
  • 13
  • 16

  •
  • 12,6
  • 15,7
  • 18,6
  • 21,6
  • 24,5
  • 27,3
  • 31,4
  • 43,1

  •
  • 13
  • 16
  • 19
  • 22
  • 25
  • 28
  • 32
  • 45

Reset
Order No.

BHLD2CADAcc.PriceOrder
03289-02X52512,613  on request
03289-03X53512,613  on request
03289-03X6536,515,716  on request
03289-04X54512,613  on request
03289-04X6546,515,716  on request
03289-04X7547,518,619  on request
03289-05X6556,515,716  on request
03289-05X7557,518,619  on request
03289-05X95921,622  on request
03289-06X96921,622  on request
03289-06X1061024,525  on request
03289-06X1161127,328  on request
03289-08X1181127,328  on request
03289-08X1381331,432  on request
03289-10X13101331,432  on request
03289-10X16101643,145  on request
