DescriptionMaterial:Steel.Version:Case-hardened, black oxidised and ground.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

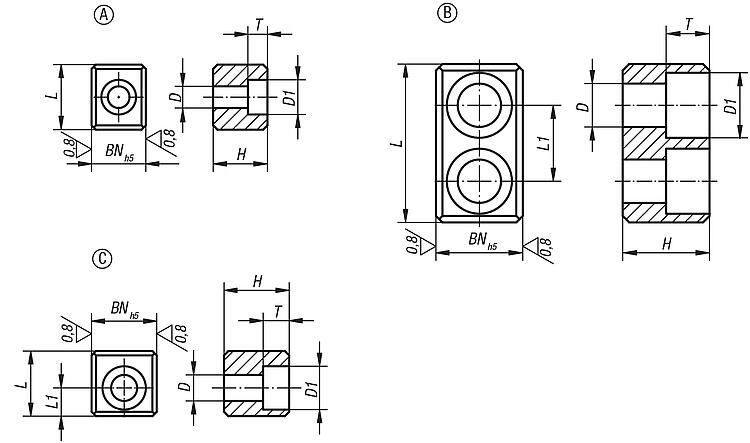

Drawings (total overview) |
| Order No. | Form | for
spindle head
No. | BN=Slot width | D | D1 | H | L | T | CAD | Acc. | Price | Order |
|---|

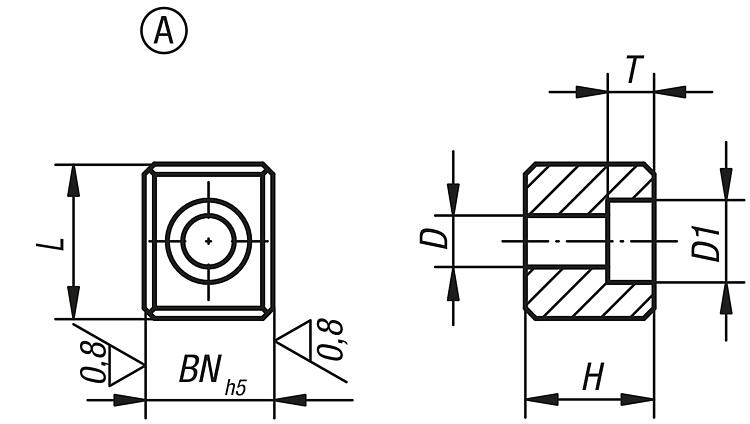

| 03290-01 | A | 30 | 15,9 | 6,4 | 10,4 | 16 | 16,5 | 6,2 |  | | on request | | | 03290-02 | A | 40 | 15,9 | 6,4 | 10,4 | 16 | 19,5 | 6,2 | | | on request | | | 03290-03 | A | 45 | 19 | 8,4 | 13,5 | 19 | 19,5 | 8,3 | | | on request | | | 03290-04 | A | 50-55 | 25,4 | 13 | 19 | 25 | 26,5 | 12,3 | | | on request | | | 03290-05 | A | 60 | 25,4 | 13 | 19 | 25 | 45,5 | 12,3 | | | on request | |
|
| Order No. | Form | for
spindle head
No. | BN=Slot width | D | D1 | H | L | L1 | T | CAD | Acc. | Price | Order |
|---|

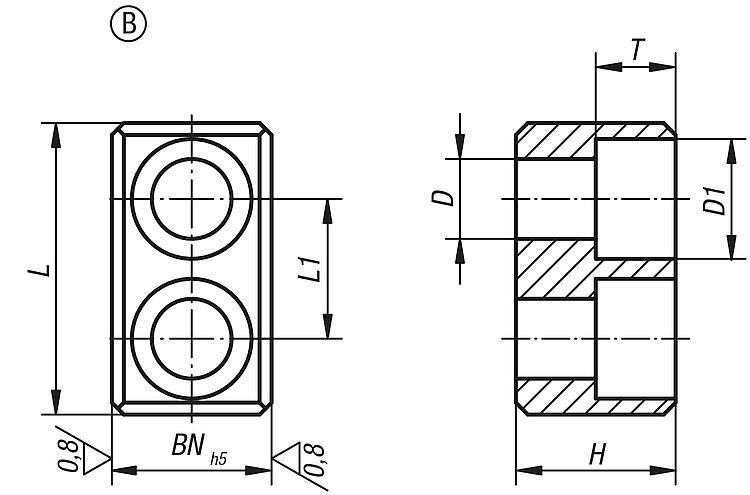

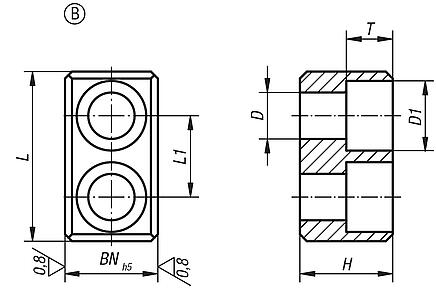

| 03290-06 | B | 60 | 25,4 | 13 | 19 | 25 | 45,5 | 22 | 12,3 | | | on request | |
|
| Order No. | Form | for
spindle head
No. | BN=Slot width | D | D1 | H | L | L1 | T | CAD | Acc. | Price | Order |
|---|

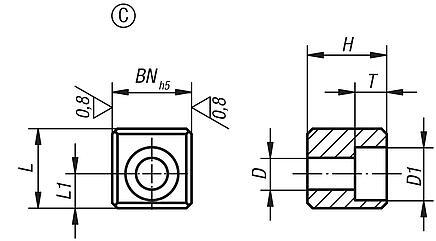

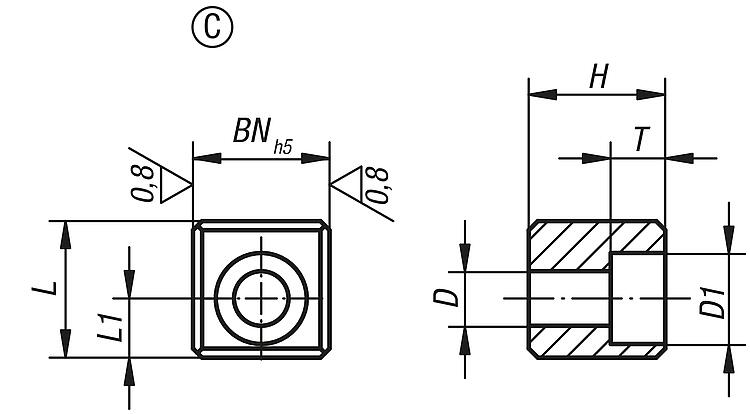

| 03290-013 | C | 30 | 15,9 | 6,4 | 10,4 | 24,5 | 13,5 | 5,5 | 6,2 | | | on request | | | 03290-023 | C | 40 | 15,9 | 6,4 | 10,4 | 24,5 | 16,5 | 7 | 6,2 | | | on request | | | 03290-033 | C | 45 | 19 | 8,4 | 13,5 | 26 | 17,5 | 7,5 | 8,3 | | | on request | | | 03290-043 | C | 50-55 | 25,4 | 13 | 19 | 29 | 24 | 11 | 12,3 | | | on request | |
|
