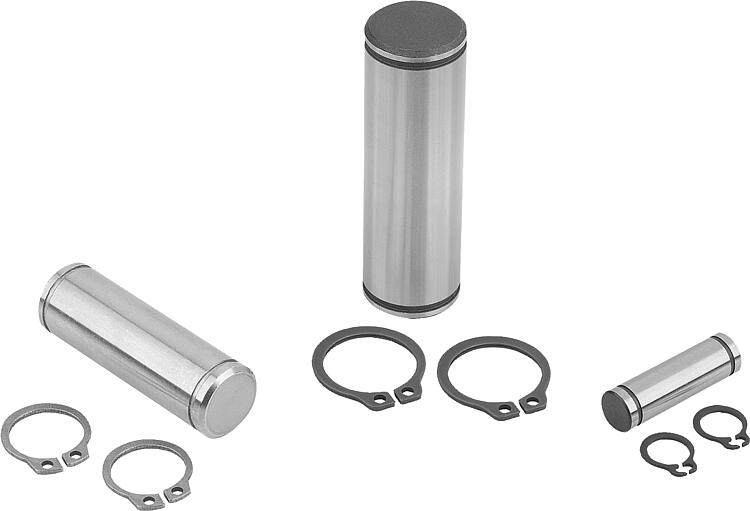

Hinge pins steel or stainless steel
 04250

Hinge pins steel or stainless steel

 go back

Item description/product images
DescriptionMaterial:Steel or stainless steel.Version:Steel version:
tempered to 1000 - 1200 N/mm², black oxidised.
Stainless steel version:

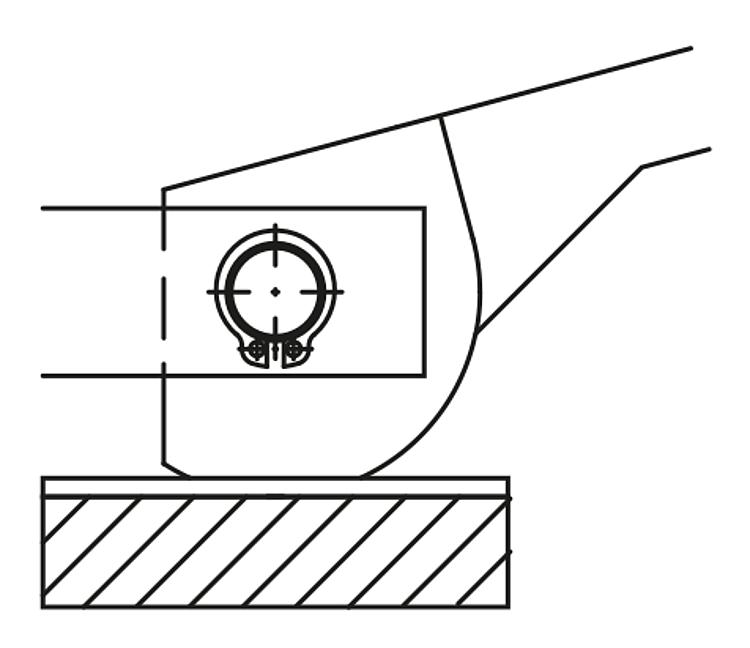

tempered to 900 - 1050 N/mm², bright.Note:For use with:
Single cam levers 04290 and 04310.
Eye bolts 07180 and 07181.
Clevis 07620.Advantages:Ground OD.
High dimensional accuracy.
Suitable for use as spare part.
Matching circlips included.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 04250 Hinge pins steel or stainless steel 151 kB

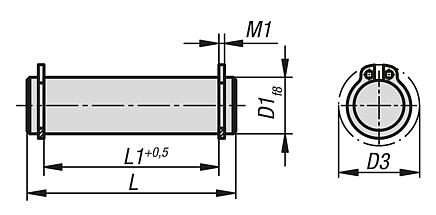

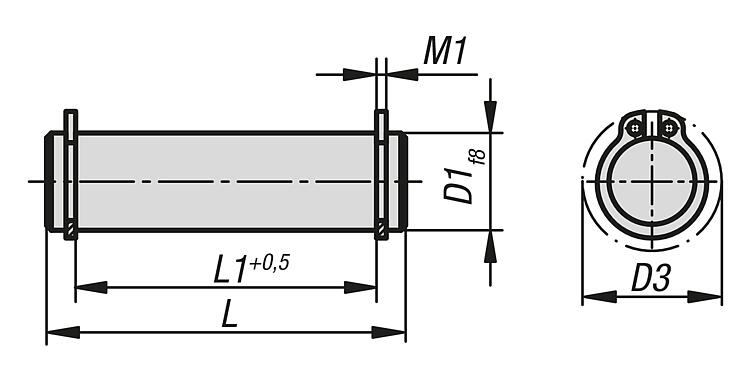

Drawings

Hinge pins steel or stainless steel

Item selection/filter
Order No.

Main
material		D1LL1M1D3CADAcc.PriceOrder
04250-05steel518130,710,7 on request
04250-06steel622170,812,2 on request
04250-08steel830250,915,2 on request
04250-081steel820160,915,2 on request
04250-082steel827210,915,2 on request
04250-10steel1037321,117,6 on request
04250-101steel1025201,117,6 on request
04250-102steel1035291,117,6 on request
04250-12steel1246401,119,6 on request
04250-121steel1231251,119,6 on request
04250-122steel1237311,119,6 on request
04250-14steel1444371,122 on request
04250-16steel1648411,124,4 on request
04250-18steel1858511,326,8 on request
04250-105stainless steel518130,710,7 on request
04250-106stainless steel622170,812,2 on request
04250-108stainless steel820160,915,2 on request
04250-1081stainless steel827210,915,2 on request
04250-1082stainless steel830250,915,2 on request
04250-110stainless steel1025201,117,6 on request
04250-1101stainless steel1035291,117,6 on request
04250-1102stainless steel1037321,117,6 on request
04250-112stainless steel1231251,119,6 on request
04250-1121stainless steel1237311,119,6 on request
04250-1122stainless steel1246401,119,6 on request
04250-114stainless steel1444371,122 on request
04250-116stainless steel1648411,124,4 on request
04250-118stainless steel1858511,326,8 on request
