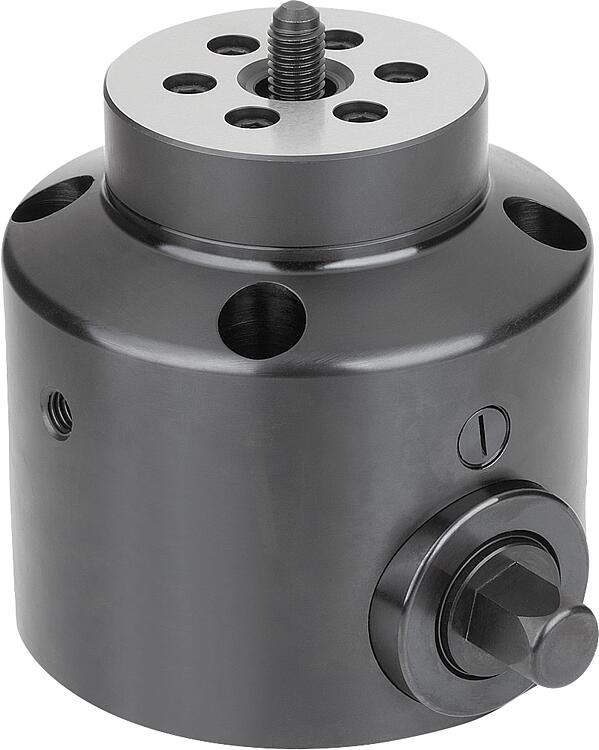

        Pull clamp with integrated clamping screw automation capable

Item description/product images

DescriptionMaterial:Carbon steel.Version:Body black oxidised.
Workpiece support tempered (HRC 39-45) and ground

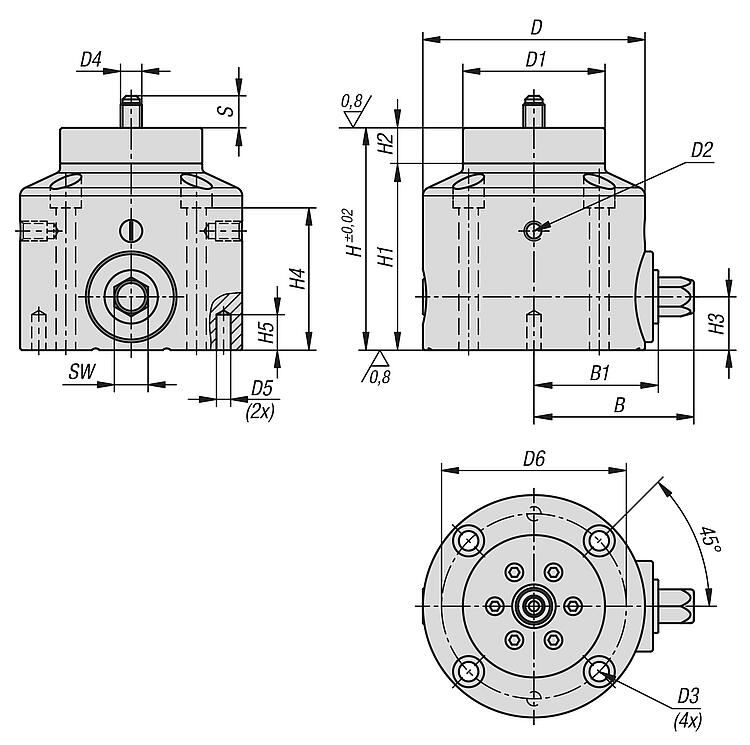

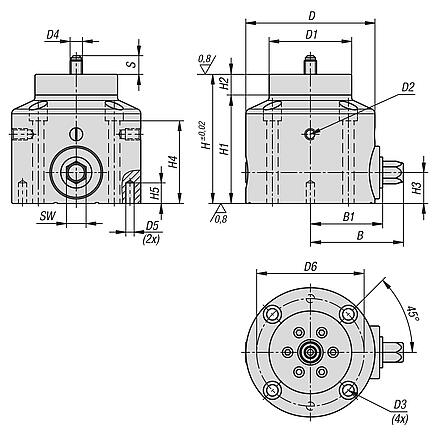

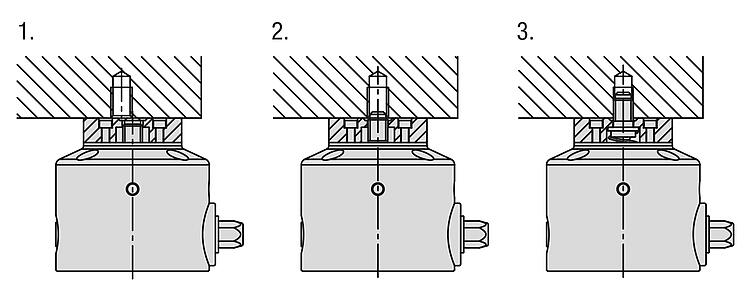

Clamping screw hardened and black oxidised.Note:1. First, place the workpiece on the workpiece support or the clamping screw of the pull clamp. This will compress the internal spring and retract the clamping screw into the main body.

2. Position the tapped hole in the workpiece above the clamping screw.
The tip of the clamping screw is pressed lightly into the tapped hole by the spring pressure.

3. When the drive element is actuated, the clamping screw rotates into the tapped hole of the workpiece and clamps it.Advantages:Automation capable
High clamping forces
Rapid clamping
Integrated clamping screwAccessory:04401-20 Extension unit.Supplied with2x locating pins Ø 8 (h7) x 40.
1x protection plug.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
