04400Pull clamps (high force) |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing, clamping ring and handles, carbon steel.
Grip thermoset PF 31.Version:Housing and clamping ring hardened and black oxidised.
Handles black oxidised.

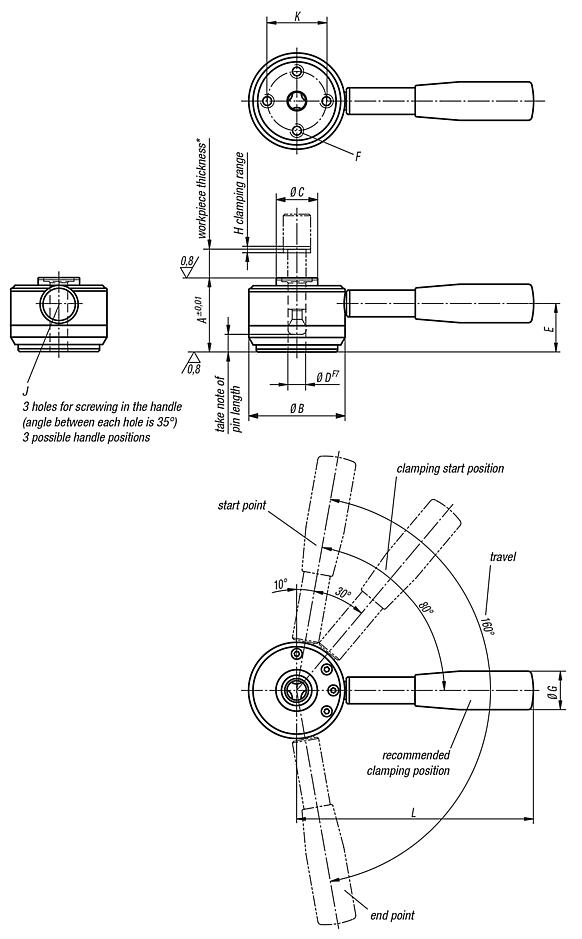

Grip black.Note:When clamping with a high force clamping pin the recommended workpiece tolerances must be maintained. The grip lever must be lay between the recommended clamping position and end point for safe clamping.
* Max. workpiece thickness see clamping pin 04400 (dimension C).
** Permitted manual force for handle.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
