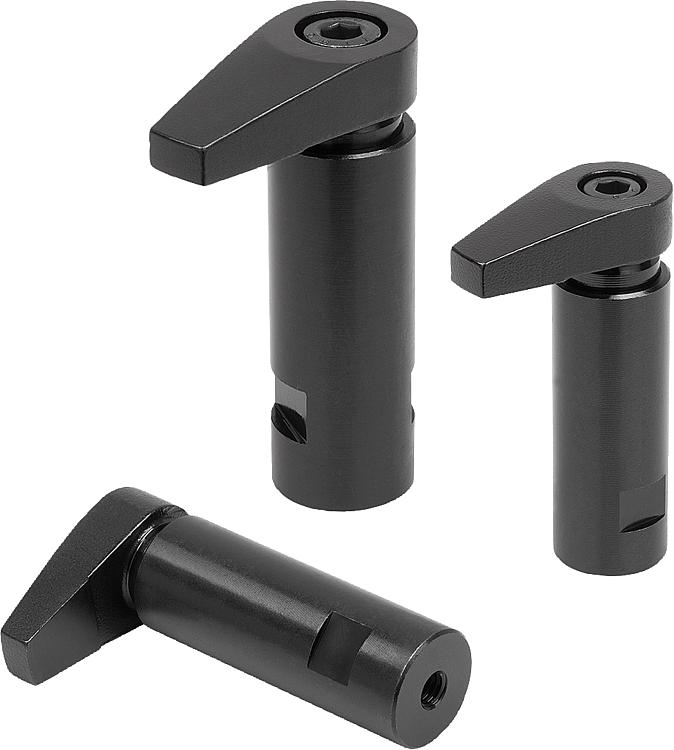

Hook clamp with collar with long clamping claw
04371

Hook clamp with collar with long clamping claw

go back

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 04371 Hook clamp with collar with long clamping claw 178 kB

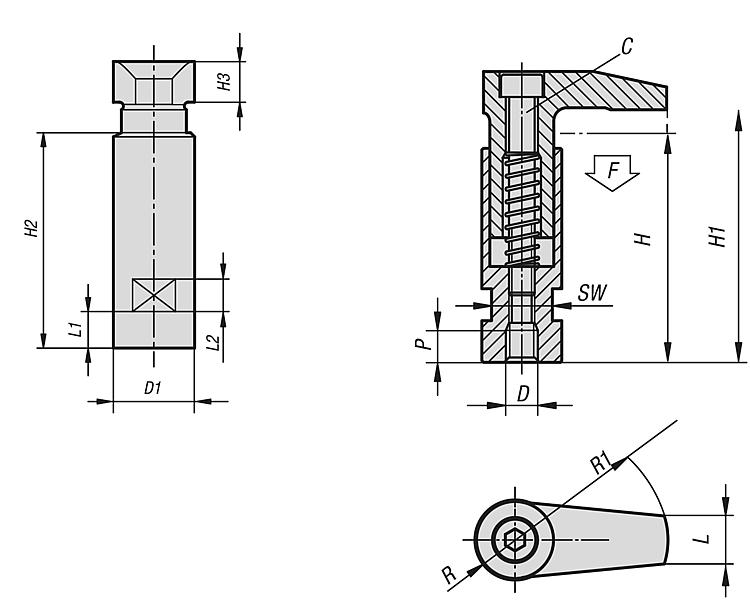

Drawings

Hook clamp with collar with long clamping claw

Item selection/filter

Order No.CD

D1HH1H2H3LL1L2PRR1SWClamping
force
kN
CADAcc.PriceOrder
04371-506M6M62056605310,5911881030174,5 on request
04371-508M6M82056605310,5911881030174,5 on request
04371-510M8M102572796712,51215101012,540196,5 on request
04371-512M10M123288968216,51817121216,5502711,8 on request
