04370Hook clamp with long clamp strap |
go back |
|
|
DescriptionMaterial:Carbon steel, tempered.Version:Black oxidised.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

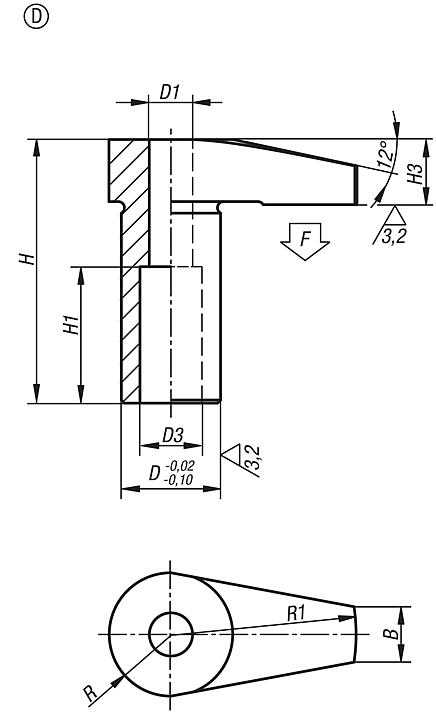

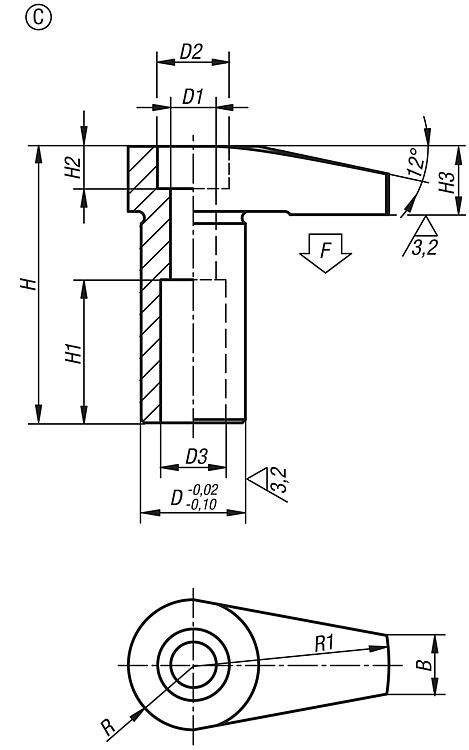

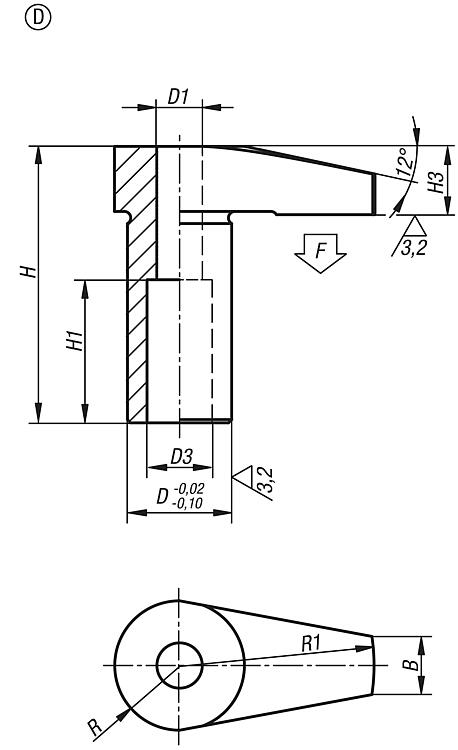

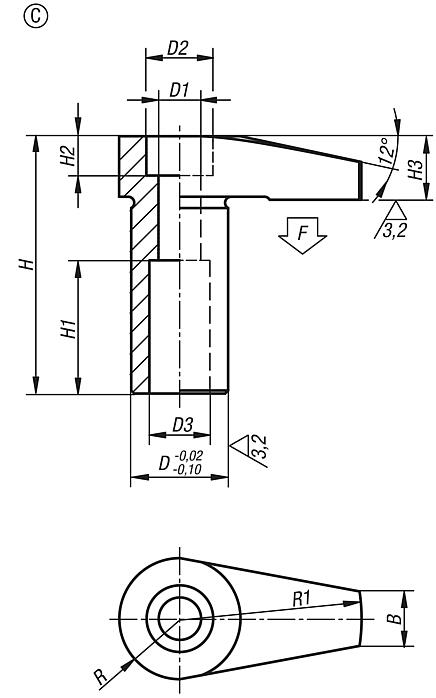

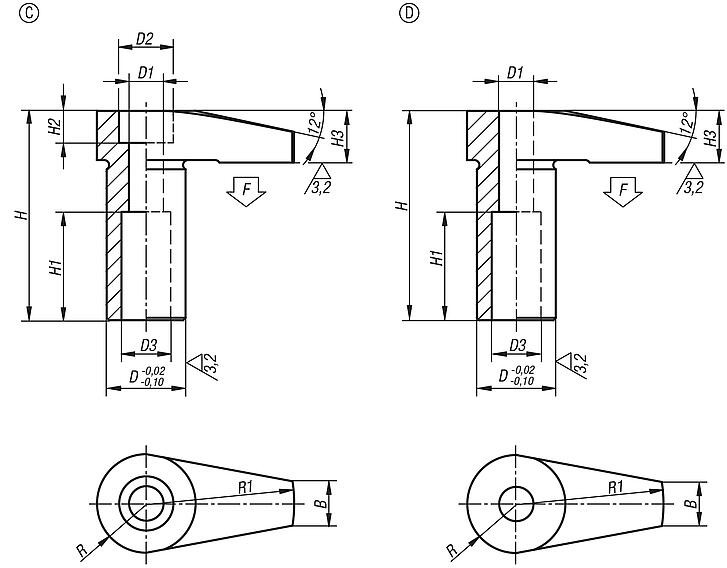

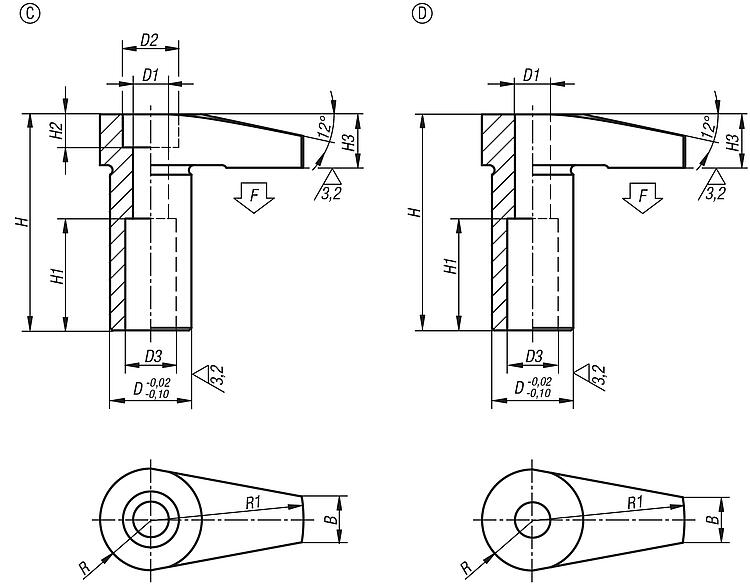

Drawings (total overview) |
| Order No. | Form | B | D | D1 | D2 | D3 | H | H1 | H2 | H3 | R | R1 | F
max. kN
| CAD | Acc. | Price | Order |
|---|
| 04370-406 | C | 9 | 16 | 7 | 11 | 10 | 42,5 | 22 | 6 | 10,5 | 10 | 30 | 4,5 |  | | on request | | | 04370-408 | C | 12 | 20 | 8,6 | 15 | 12 | 52,5 | 25 | 8 | 12,5 | 12,5 | 40 | 6,5 | | | on request | | | 04370-410 | C | 18 | 25 | 10,6 | 18 | 14 | 66,5 | 32 | 10 | 16,5 | 16 | 50 | 11,8 | | | on request | |
|
| Order No. | Form | B | D | D1 | D3 | H | H1 | H3 | R | R1 | F
max. kN
| CAD | Acc. | Price | Order |
|---|
| 04370-506 | D | 9 | 16 | 7 | 10 | 42,5 | 22 | 10,5 | 10 | 30 | 4,5 | | | on request | | | 04370-508 | D | 12 | 20 | 8,6 | 12 | 52,5 | 25 | 12,5 | 12,5 | 40 | 6,5 | | | on request | | | 04370-510 | D | 18 | 25 | 10,6 | 14 | 66,5 | 32 | 16,5 | 16 | 50 | 11,8 | | | on request | |
|
