        Swing clamps, heavy duty automation compatible

Item description/product images

DescriptionProduct description:Heavy duty toggle clamps are especially suitable for manual clamping processes with short clamping times.

The clamping arm swivels 90° at the rotation speed of the impact driver and enables rapid clamping. When this movement is completed, the linear down clamping travel is carried out.Material:Carbon steel.Version:Black oxidised.Type of operation:Impact driver with adjustable torque.Advantages:- Automation-compatible
- High clamping forces
- Rapid clampingDrawing reference:

1) swing travel
2) clamp travel

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04364-10 Swing clamps, heavy duty automation compatible

Technical Information for heavy-duty swing clamps

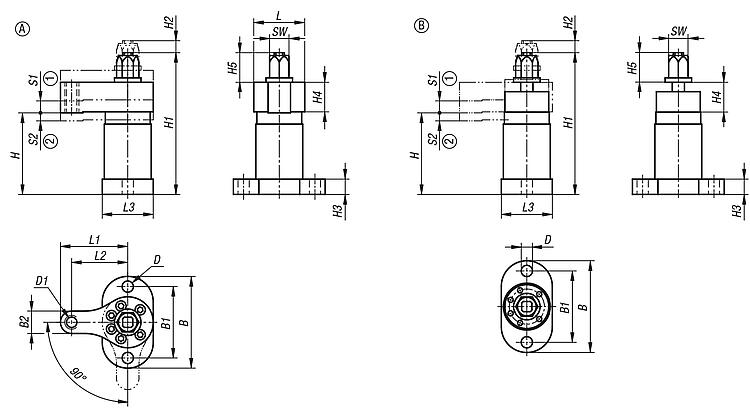

Drawings (total overview)

Swing clamps, heavy duty automation compatible

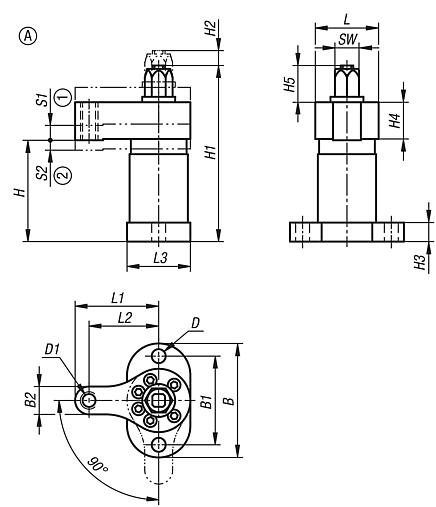

Swing clamps, heavy duty, automation compatible, Form A, with clamping arm

More information

Drawings

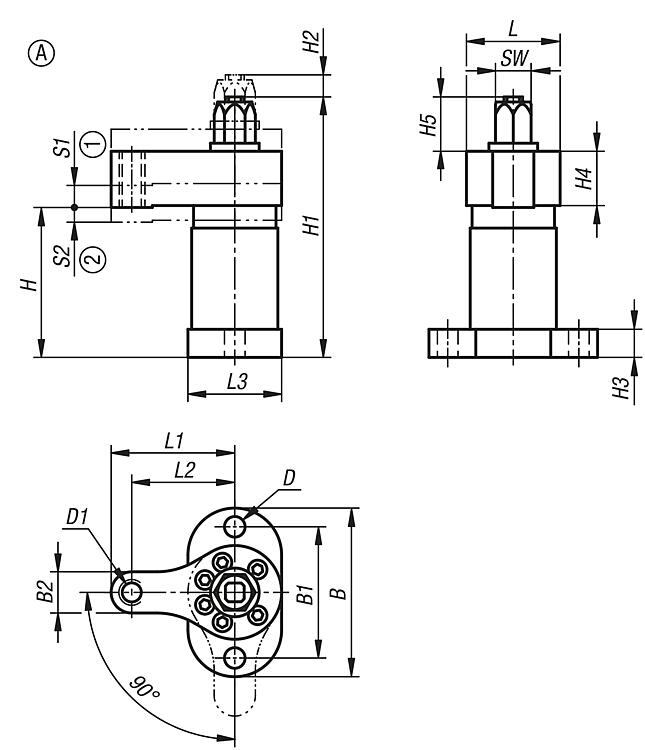

Swing clamps, heavy duty, automation compatible, Form A, with clamping arm

Item selection/filter

Order No.	Version 1	Form	Form definition	B	B1	B2	D	D1	H	H1	H2	H3	H4	H5	L	L1	L2	L3	S1	S2	SW	Tightening torque max. Nm	Clamping force kN	CAD	Acc.	Price	Order
04364-10-1061	swivel to the right	A	with clamping arm	90	70	22	11	M12	80	139	11	15	30	29	50	66	55	50	11	10	19	28	6			on request

Swing clamps, heavy duty, automation compatible, Form B, without clamping arm

More information

Drawings

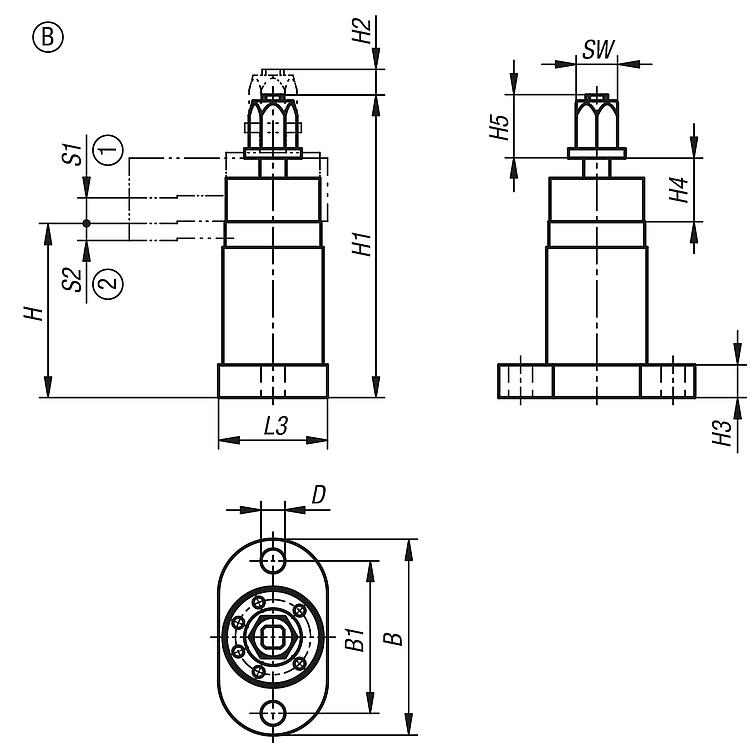

Swing clamps, heavy duty, automation compatible, Form B, without clamping arm

Item selection/filter

Order No.	Version 1	Form	Form definition	B	B1	D	H	H1	H2	H3	H4	H5	L3	S1	S2	SW	CAD	Acc.	Price	Order
04364-10-1060	swivel to the right	B	without clamping arm	90	70	11	80	139	11	15	30	29	50	11	10	19			on request
