        Swing clamps, mini, with cam lever

Item description/product images

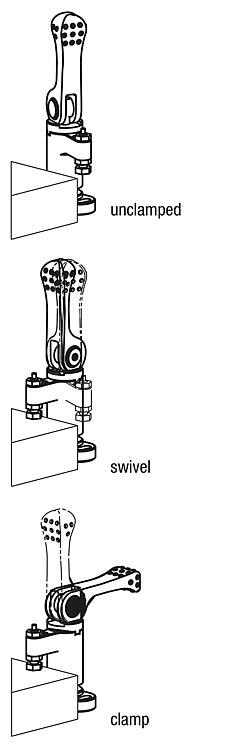

DescriptionMaterial:Carbon steel.Version:hardened and tempered and black oxidised or nickel-plated.Note:Swing clamps are used where the clamping points must be free when the workpiece is loaded or removed.

* Admissible hand force for the handle.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04363 Swing clampsmini, with cam lever

209 kB

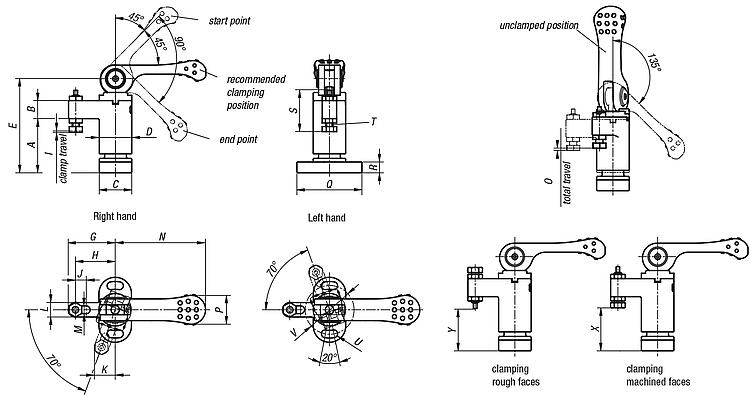

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Version 1	Surface finish body	A	B	C	D	E	G	H	I	J	K	L	M	N	O	P	Q	R	Price
04363-0100	left	black oxidised	30	10	18	18	52	26	22	0,8	6	11,5	8	4,3	50	1,2	16	36	6	on request
04363-01001	left	nickel-plated	30	10	18	18	52	26	22	0,8	6	11,5	8	4,3	50	1,2	16	36	6	on request
04363-0150	left	black oxidised	40	14	23	23	68	35	30	1	8	15,3	10	5,3	63	1,5	19	45	8	on request
04363-01501	left	nickel-plated	40	14	23	23	68	35	30	1	8	15,3	10	5,3	63	1,5	19	45	8	on request
04363-0200	left	black oxidised	50	18	30	30	87	45	37	1,2	8	20,7	16	8,4	80	1,8	24	65	12	on request
04363-02001	left	nickel-plated	50	18	30	30	87	45	37	1,2	8	20,7	16	8,4	80	1,8	24	65	12	on request
04363-0300	left	black oxidised	60	22	40	40	107	55	45	1,5	8	25,4	20	10,4	100	2,3	30	85	15	on request
04363-03001	left	nickel-plated	60	22	40	40	107	55	45	1,5	8	25,4	20	10,4	100	2,3	30	85	15	on request
04363-1100	right	black oxidised	30	10	18	18	52	26	22	0,8	6	11,5	8	4,3	50	1,2	16	36	6	on request
04363-11001	right	nickel-plated	30	10	18	18	52	26	22	0,8	6	11,5	8	4,3	50	1,2	16	36	6	on request
04363-1150	right	black oxidised	40	14	23	23	68	35	30	1	8	15,3	10	5,3	63	1,5	19	45	8	on request
04363-11501	right	nickel-plated	40	14	23	23	68	35	30	1	8	15,3	10	5,3	63	1,5	19	45	8	on request
04363-1200	right	black oxidised	50	18	30	30	87	45	37	1,2	8	20,7	16	8,4	80	1,8	24	65	12	on request
04363-12001	right	nickel-plated	50	18	30	30	87	45	37	1,2	8	20,7	16	8,4	80	1,8	24	65	12	on request
04363-1300	right	black oxidised	60	22	40	40	107	55	45	1,5	8	25,4	20	10,4	100	2,3	30	85	15	on request
04363-13001	right	nickel-plated	60	22	40	40	107	55	45	1,5	8	25,4	20	10,4	100	2,3	30	85	15	on request

Order No.	Version 1	Surface finish body	S	T	U	V	X min.	X max.	Y min.	Y max.	F N	Hand force FH N	Price
04363-0100	left	black oxidised	22,8	M4	4,3	27	22,4	25,2	22	24,8	800	100*	on request
04363-01001	left	nickel-plated	22,8	M4	4,3	27	22,4	25,2	22	24,8	800	100	on request
04363-0150	left	black oxidised	28,5	M5	5,3	34	30,8	33,8	31,7	34,7	1500	150*	on request
04363-01501	left	nickel-plated	28,5	M5	5,3	34	30,8	33,8	31,7	34,7	1500	150	on request
04363-0200	left	black oxidised	45,5	M8	8,4	48	31,9	39,6	32,9	40,6	2100	200*	on request
04363-02001	left	nickel-plated	45,5	M8	8,4	48	31,9	39,6	32,9	40,6	2100	200	on request
04363-0300	left	black oxidised	57	M10	10,5	64	35,7	46,7	38,2	49,2	2800	300*	on request
04363-03001	left	nickel-plated	57	M10	10,5	64	35,7	46,7	38,2	49,2	2800	300	on request
04363-1100	right	black oxidised	22,8	M4	4,3	27	22,4	25,2	22	24,8	800	100*	on request
04363-11001	right	nickel-plated	22,8	M4	4,3	27	22,4	25,2	22	24,8	800	100	on request
04363-1150	right	black oxidised	28,5	M5	5,3	34	30,8	33,8	31,7	34,7	1500	150*	on request
04363-11501	right	nickel-plated	28,5	M5	5,3	34	30,8	33,8	31,7	34,7	1500	150	on request
04363-1200	right	black oxidised	45,5	M8	8,4	48	31,9	39,6	32,9	40,6	2100	200*	on request
04363-12001	right	nickel-plated	45,5	M8	8,4	48	31,9	39,6	32,9	40,6	2100	200	on request
04363-1300	right	black oxidised	57	M10	10,5	64	35,7	46,7	38,2	49,2	2800	300*	on request
04363-13001	right	nickel-plated	57	M10	10,5	64	35,7	46,7	38,2	49,2	2800	300	on request
