        Swing clamps, heavy duty, extended clamping travel automation compatible

Item description/product images

DescriptionProduct description:Heavy-duty swing clamps with extended clamping travel are highly suitable for automated clamping processes.

At the start of the clamping process, the clamping arm performs a 90° swing movement along the integrated control cam. When this movement is completed, the linear down clamping travel is carried out.Material:Carbon steel.Version:Black oxidised.Type of operation:Impact driver with adjustable torque.Advantages:- Automation-compatible
- High clamping forces
- Rapid clampingSupplied withSwing clamp with positioning bush.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04364-05 Swing clamps, heavy duty, extended clamping travel automation compatible

218 kB

Technical Information for heavy-duty swing clamps with extended clamping travel

175 kB

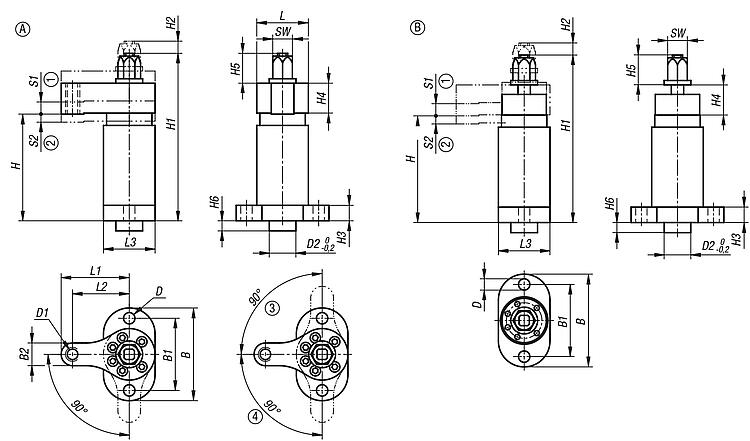

Drawings (total overview)

Swing clamps, heavy duty, extended clamping travel, automation compatible, Form A, with clamping arm

More information

Drawings

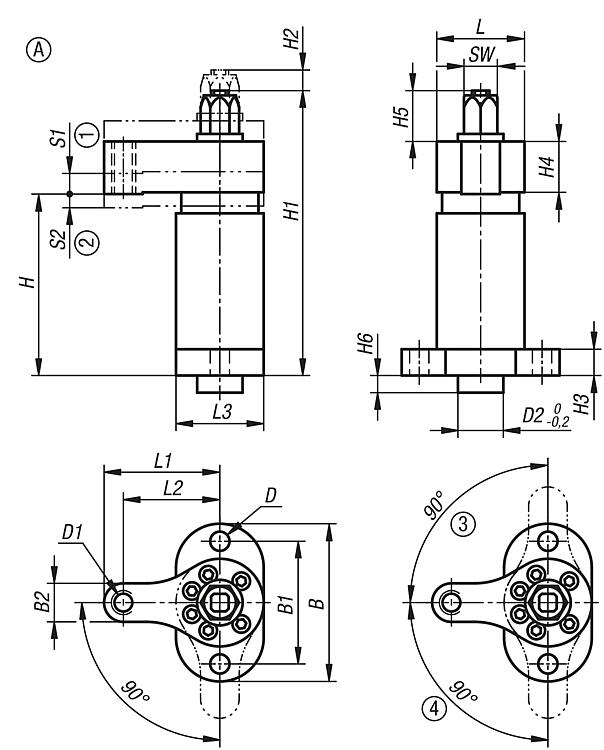

Swing clamps, heavy duty, extended clamping travel, automation compatible, Form A, with clamping arm

Item selection/filter

Order No.	Version 1	Form	Form definition	B	B1	B2	D	D1	D2	H	H1	H2	H3	H4	H5	H6	L	L1	L2	L3	S1	S2	SW	Tightening torque max. Nm	Clamping force kN	CAD	Acc.	Price	Order
04364-05-1061	swivel to the right	A	with clamping arm	90	70	22	11	M12	26	105	164	31	15	30	29	10	50	66	55	50	31	10	19	28	6			on request
04364-05-0061	swivel to the left	A	with clamping arm	90	70	22	11	M12	26	105	164	31	15	30	29	10	50	66	55	50	31	10	19	28	6			on request

Swing clamps, heavy duty, extended clamping travel, automation compatible, Form B, without clamping arm

More information

Drawings

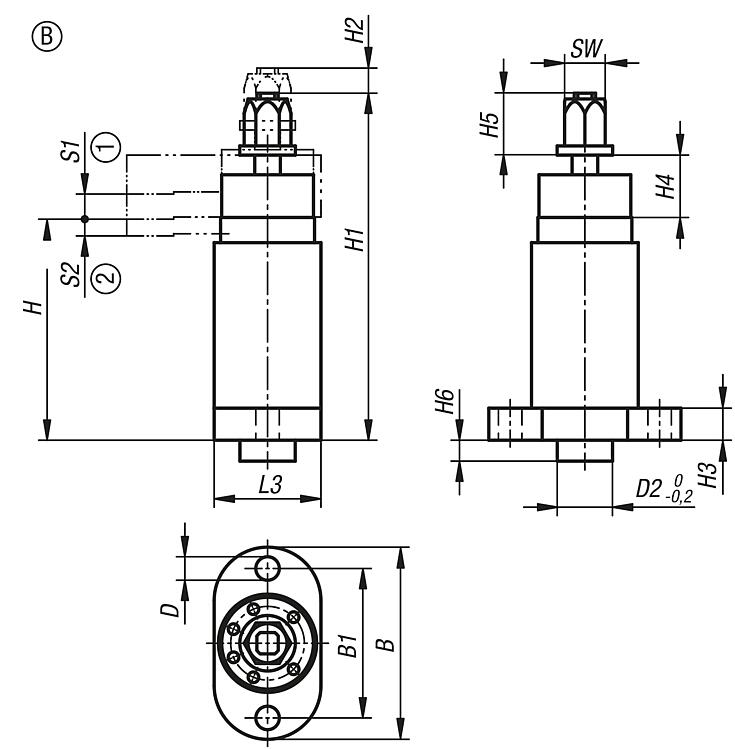

Swing clamps, heavy duty, extended clamping travel, automation compatible, Form B, without clamping arm

Item selection/filter

Order No.	Version 1	Form	Form definition	B	B1	D	D2	H	H1	H2	H3	H4	H5	H6	L3	S1	S2	SW	CAD	Acc.	Price	Order
04364-05-1060	swivel to the right	B	without clamping arm	90	70	11	26	105	164	31	15	30	29	10	50	31	10	19			on request
04364-05-0060	swivel to the left	B	without clamping arm	90	70	11	26	105	164	31	15	30	29	10	50	31	10	19			on request
