Toe clamps

04570

Toe clamps

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Side clamp
        Toe clamps

Item description/product images

Show/filter all items

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04570 Toe clamps

Drawings (total overview)

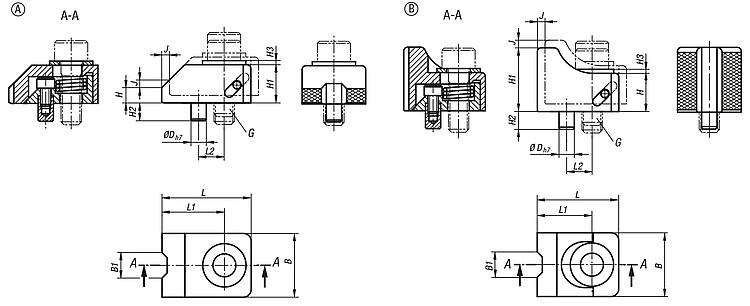

Toe clamps

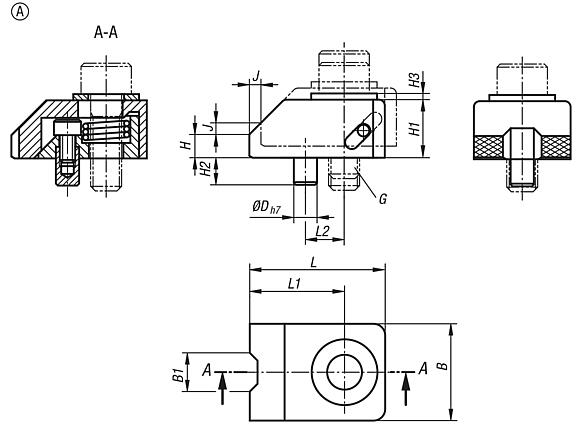

Toe clamps, Form A

More information

Drawings

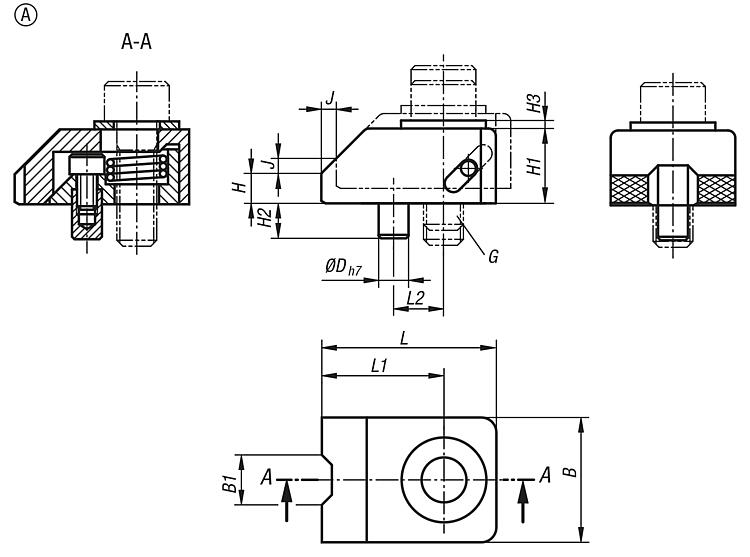

Toe clamps, Form A

Item selection/filter

Order No.	B	B1	D	G	H	H1	H2	H3	J	L	L1	L2	Clamping force N	Tightening torque Nm	CAD	Acc.	Price	Order
04570-0806	25	10	6	M8	6	15	7	1,6	3	35	24,5	10	7000	25			on request
04570-1008	30	11	6	M10	8	19	7	2	4	43	29	12	8500	50			on request
04570-1209	35	12	8	M12	9	23	10	2,3	5	54	37	16	20000	90			on request
04570-1610	40	14	10	M16	10	25	10	3,2	6	65	45	20	40000	200			on request

Toe clamps, Form B

More information

Drawings

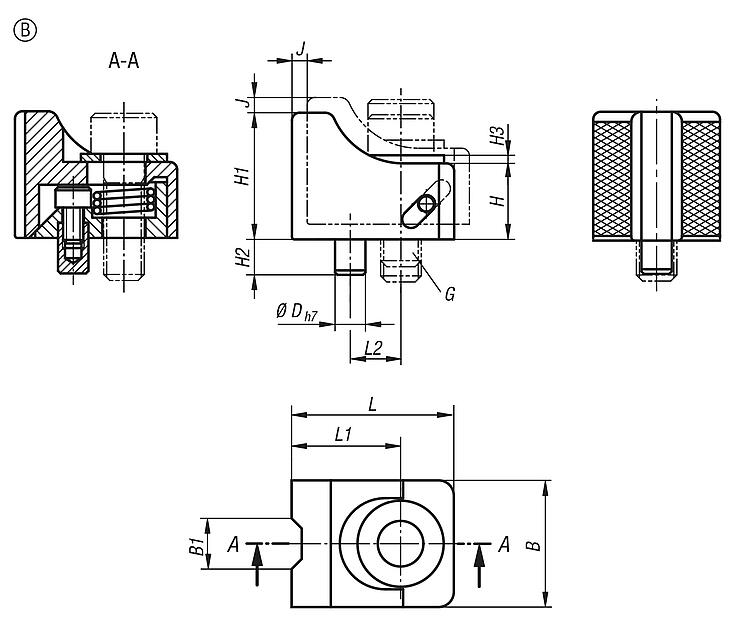

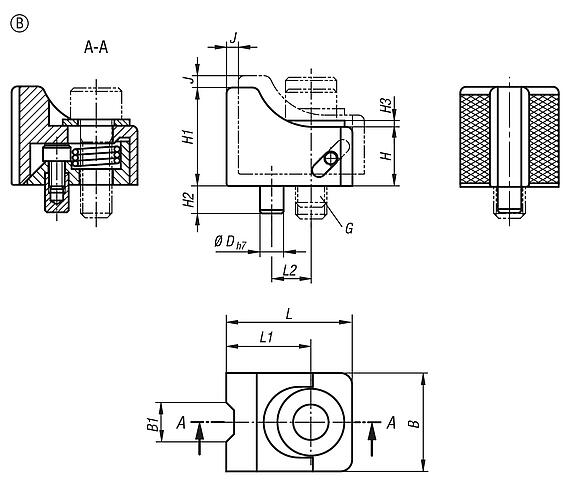

Toe clamps, Form B

Item selection/filter

Order No.	B	B1	D	G	H	H1	H2	H3	J	L	L1	L2	Clamping force N	Tightening torque Nm	CAD	Acc.	Price	Order
04570-0825	25	10	6	M8	15	25	7	1,6	3	32	21,5	10	7000	25			on request
04570-1032	30	11	6	M10	19	32	7	2	4	40	26	12	8500	50			on request
04570-1238	35	12	8	M12	23	38	10	2,3	5	50	33	16	20000	90			on request
04570-1645	40	14	10	M16	25	45	10	3,2	6	60	40	20	40000	200			on request
