        Side clamps with support

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Tightening the ball-end thrust screw moves the jaw plates forwards. The workpiece is pushed against the fixed stop and simultaneously forced down onto the seating face. This side clamp has a ground seating face and tapped hole for adjustable support elements.Drawing reference:

Form A: with flat jaw
Form B: with prism jaw

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04461 Side clamps with support

210 kB

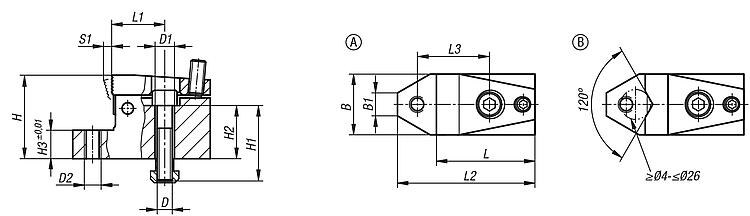

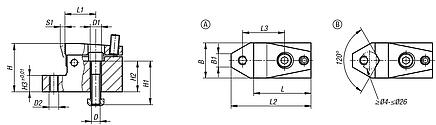

Drawings (total overview)

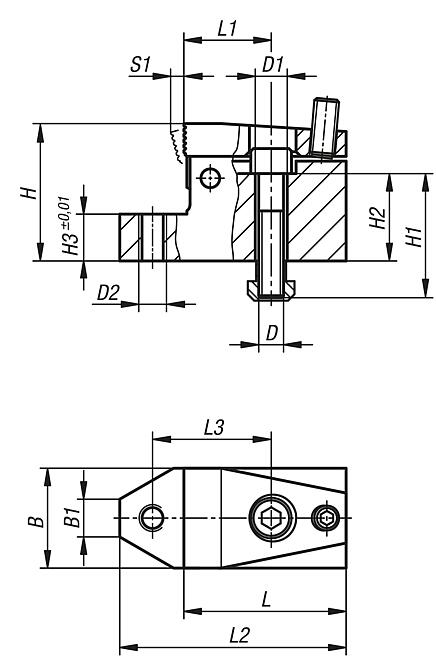

Side clamps with support, Form A, with flat jaw

More information

Drawings

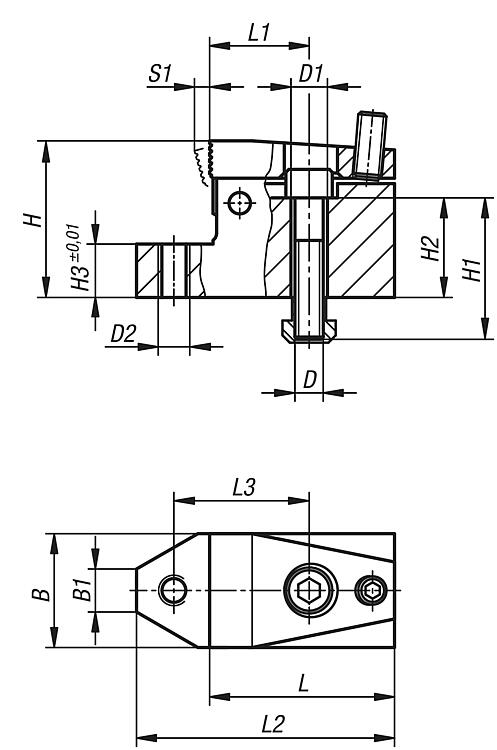

Side clamps with support, Form A, with flat jaw

Item selection/filter

Order No.	Form	Slot width	B	B1	D	D1	D2	H	H1	H2	H3	L	L1	L2	L3	S1 (travel)	Clamping force N	Tightening torque max. Nm	Price
04461-110	A	10	32	12,1	M8	8,4	M8	44	40	28	15	52	28	72,5	38	3	7000	3	on request
04461-114	A	14	48	16	M12	13	M12	53	45	27	15	72	40	100	55	4	15000	9	on request
04461-118	A	18	68	18,8	M16	17	M16	72	60	38	20	86	41	126	63	7	21500	20	on request

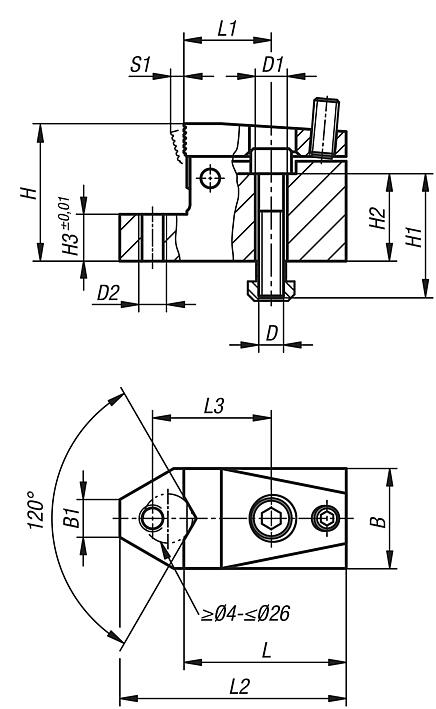

Side clamps with support, Form B, with prism jaw

More information

Drawings

Side clamps with support, Form B, with prism jaw

Item selection/filter

Order No.	Form	Slot width	B	B1	D	D1	D2	H	H1	H2	H3	L	L1	L2	L3	S1 (travel)	Clamping force N	Tightening torque max. Nm	Price
04461-210	B	10	32	12,1	M8	8,4	M8	44	40	28	15	52	28	72,5	38	3	7000	3	on request
04461-214	B	14	48	16	M12	13	M12	53	45	27	15	72	40	100	55	4	15000	9	on request
04461-218	B	18	68	18,8	M16	17	M16	72	60	38	20	86	41	126	63	7	21500	20	on request
