05220Thrust spindles spring mounted |
go back |
|
Item description/product images |
|
|

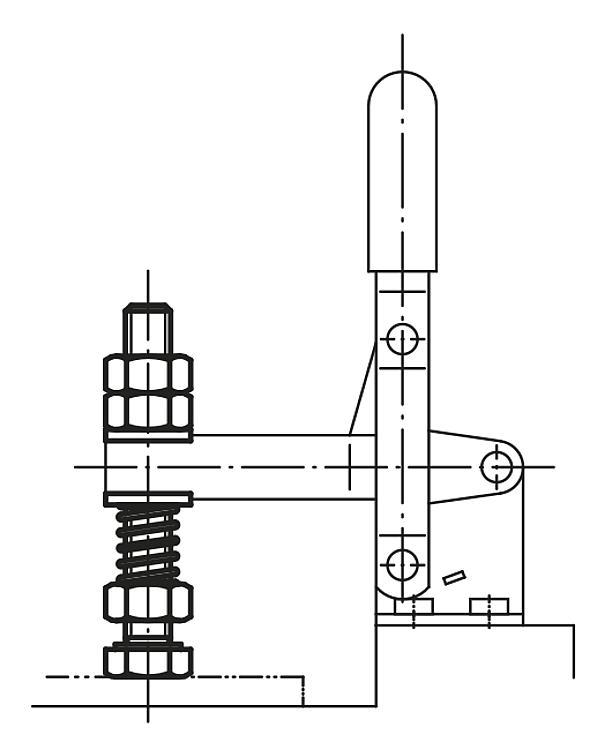

DescriptionMaterial:Screw and clamping plates steel. Nut steel. Spring class C spring wire.Version:Screw and clamping plates electro zinc-plated. Nut black oxidised.Note:For use with 05020, 05040, 05060, 05120 and 05130.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | L | L1 | D | A | C min. | C max. | F max. N | CAD | Acc. | Price | Order |
---|
05220-08 | 65,5 | 16 | M8x60 | 12 | 9 | 30 | 25 | | | on request | | 05220-10 | 87,5 | 20,5 | M10x80 | 15 | 14 | 35 | 35 | | | on request | |
