Item description/product images |
|
|
DescriptionMaterial:Neoprene or Polyamide.Version:Neoprene black, oil resistant, Shore hardness 75A.
Polyamide white.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

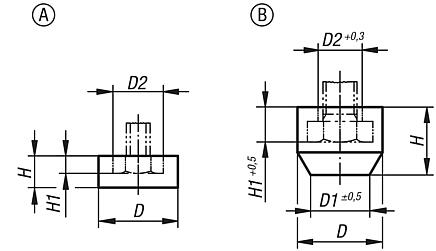

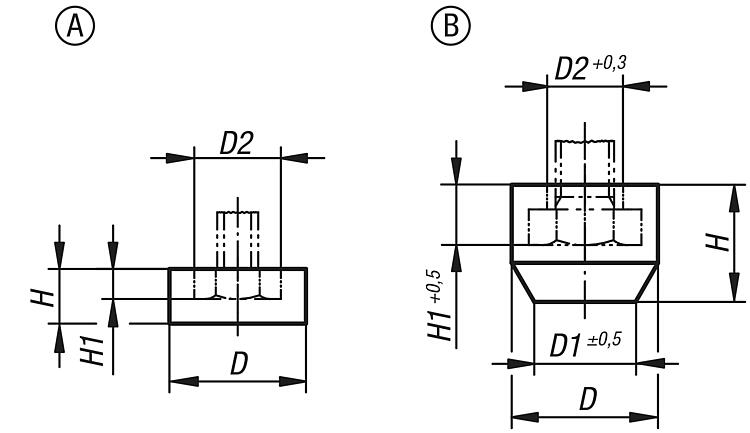

| Order No. | Form | Main
material | D
| D1 | D2 | H | H1 | for
screws
| CAD | Acc. | Price | Order |
|---|
| 05280-06 | A | polyamide | 9 | - | 6,6 | 4 | 2,3 | M3 |  | | on request | | | 05280-01 | B | neoprene | 11 | 6,6 | 5,5 | 8,5 | 4 | M4 | | | on request | | | 05280-02 | B | neoprene | 12,5 | 7,3 | 6,5 | 10 | 4,7 | M5 | | | on request | | | 05280-03 | B | neoprene | 15 | 9,9 | 8,5 | 12 | 5,8 | M6 | | | on request | | | 05280-04 | B | neoprene | 19 | 12,7 | 11 | 15 | 7,1 | M8 | | | on request | | | 05280-07 | B | neoprene | 23 | 15 | 14,5 | 18 | 9 | M10 | | | on request | | | 05280-05 | B | neoprene | 26 | 19 | 16,5 | 20 | 10 | M12 | | | on request | |
