Latcheswith draw bail
 05536

Latches with draw bail

 go back

Item description/product images
DescriptionMaterial:

Steel or stainless steel 1.4301.

Version:Electro zinc-plated, thick-film passivated and top coat sealed.
Stainless steel, bright.Note:Latches with draw bail for securing and locking hatches, container lids, machine cladding etc. By exceeding the dead centre they resist vibration.
The locking force is applied by drawing on the bail.

The latches can be screwed down or riveted. We recommend using countersunk screws for fastening the components.

Order catch plates separately.On request:Lockable version with padlock bracket.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 05536 Latcheswith draw bail 174 kB

Drawings (total overview)

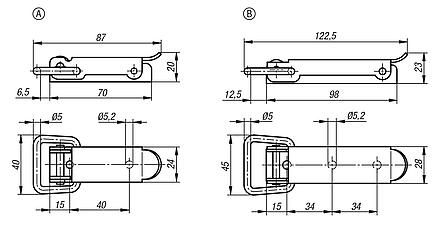

Latcheswith draw bail

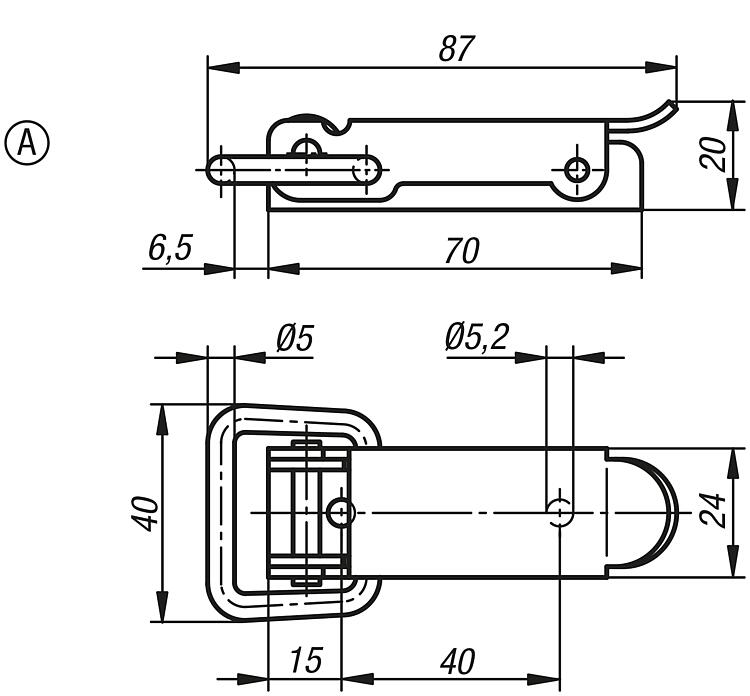

Latches with draw bail, Form A

 More information

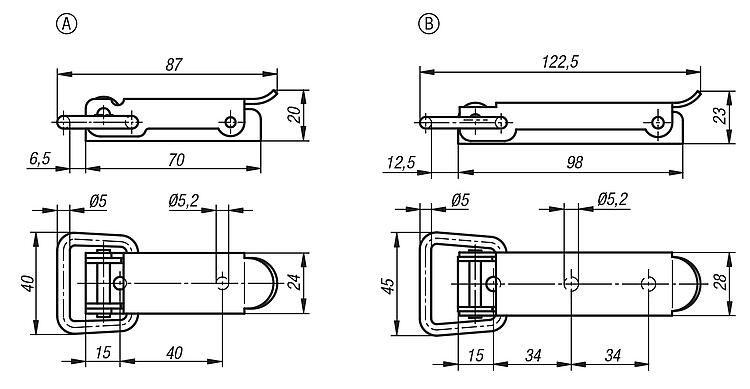

Drawings
Latches with draw bail, Form A

Item selection/filter


  •
  • steel
  • stainless steel

  •
  • A

Reset
Order No.Main
material		Form

CADAcc.PriceOrder
05536-1520871steelA  on request
05536-1520872stainless steelA  on request

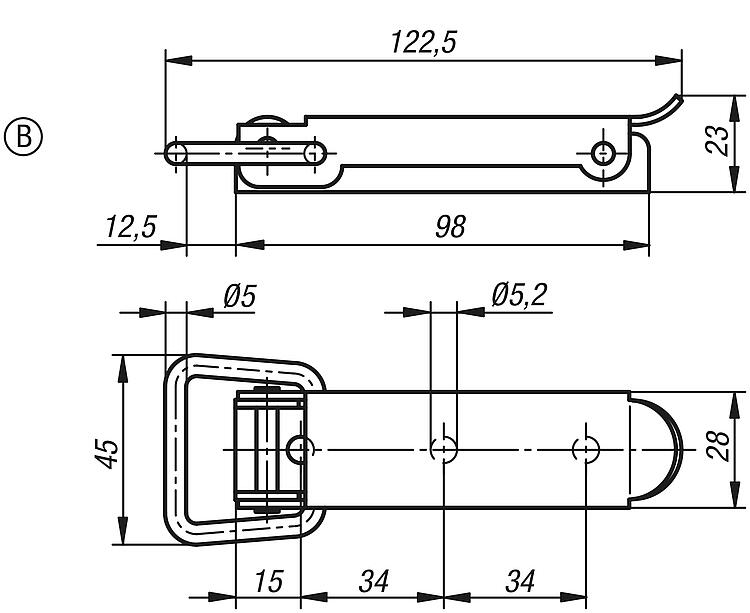

Latches with draw bail, Form B
