        Quarter-turn locks, stainless steel 1.4404, small version, housing diameter 28 mm

Item description/product images

DescriptionMaterial:

Housing, stainless steel 1.4404.
Actuation and fastening nut, stainless steel 1.4404.

Version:Bright.Note:The quarter turn lock can be installed pre-assembled. For right or left use. Water and dust protected acc. to IP65 from DIN EN 60529.

Please order required tongue version separately. Every tongue can be combined with every housing.

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Key 05586.

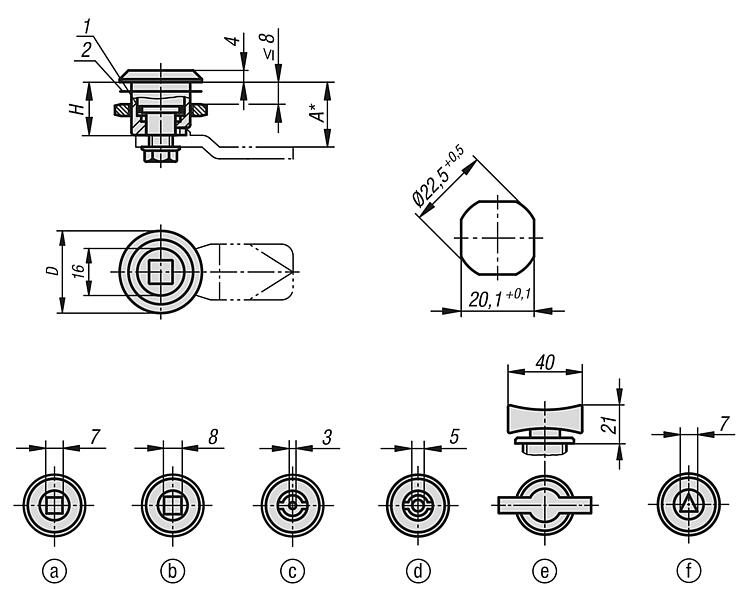

Tongue for stainless steel quarter-turn lock 05566-07.Drawing reference:

Actuation:
a) square 7 mm
b) square 8 mm
c) double lug 3 mm
d) double lug 5 mm
e) T-grip
f) triangle 7 mm

1) O-ring
2) flat seal

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05566-03 Quarter-turn locks, stainless steel small version

198 kB

Drawings

Item selection/filter

	square 7 mm square 8 mm double lug 3 mm double lug 5 mm wing grip Triangle 7 mm	28	18	8				Reset
Order No.	Actuation	D	H	S max.	CAD	Acc.	Price	Order
05566-03-1718	square 7 mm	28	18	8			on request
05566-03-1818	square 8 mm	28	18	8			on request
05566-03-4318	double lug 3 mm	28	18	8			on request
05566-03-4518	double lug 5 mm	28	18	8			on request
05566-03-0018	wing grip	28	18	8			on request
05566-03-8718	Triangle 7 mm	28	18	8			on request
