05562Quarter-turn locks compact with wing grip |
go back |
|

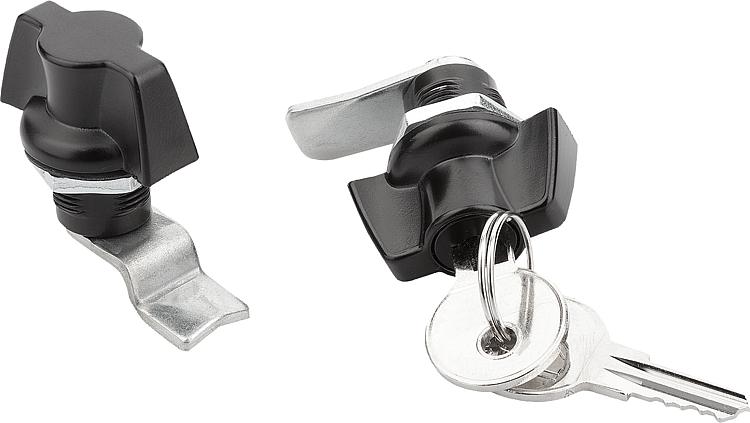

Item description/product images |
|
|
DescriptionMaterial:Housing and actuator die-cast zinc.
Nut brass.
O-ring NBR, flat seal CR.
Tongue steel.Version:Housing trivalent passivated.
Actuator black powder-coated.
Nut and tongue electro zinc-plated.Note:This quarter-turn lock is vibration-resistant through a detent mechanism in the end position. Right or left mounting with 90° closing and internal rotation limit. The quarter-turn lock can be installed pre-assembled (limitations by small A-dimensions and thick doors).
Water and dust proof as per IP65 through O-ring and flat seal.
The lockable quarter-turn locks are supplied with 2 keys. The key can be removed in both positions (opened and closed). The cylinder locks have a single key system i.e. the same key works in all locks (cylinder lock 2233).
Order the required tongue version separately. Every tongue can be combined with every housing.Accessory:Key 05586.
Tongue for steel compact quarter-turn lock 05563.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

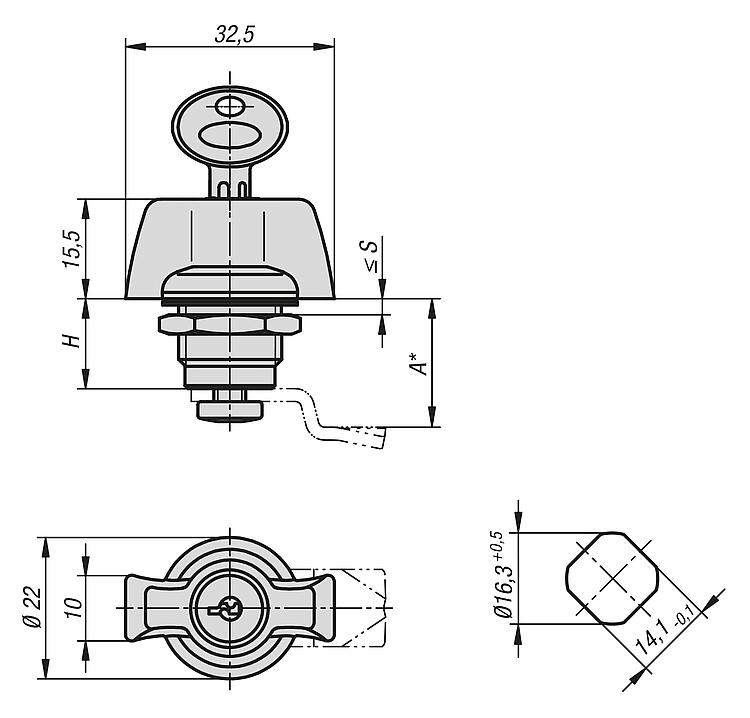

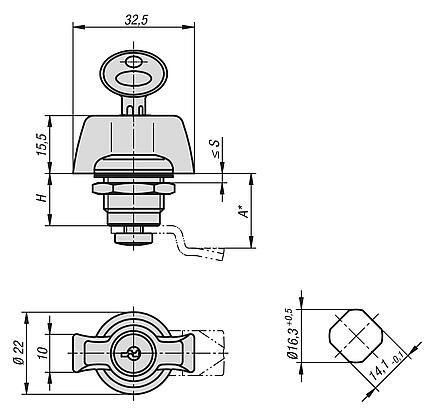

Drawings (total overview) |
Order No.
| Actuation
| CAD | Acc. | Price | Order |
|---|
| 05562-30132 | wing grip |  | | on request | | | 05562-31132 | lockable grip | | | on request | |
|
