        Quarter turn latches, with knurled head

Item description/product images

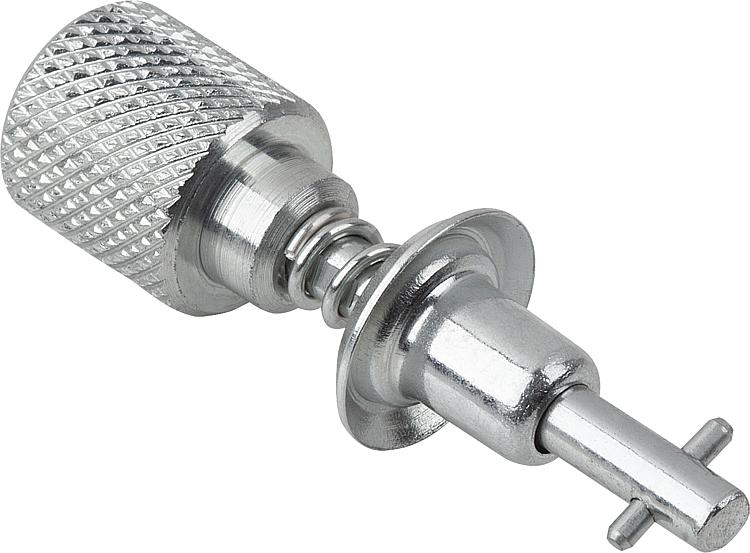

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Quarter-turn latches for securely holding and locking hatches, container lids, machine covers and similar. The lock is closed or opened by turning it through 90°. This moves the cross pin in the locking bolt through a curve in the bottom part of the lock, thus tensioning the spring. At the end point of the curve there is a little recess in which the cross pin engages. The pretensioning force generated in the lock by the spring ensures that the connection is held securely despite any vibrations.

All components in the locking system (locking bolt, retaining washer and bottom part) are captive components which are joined to the cover of the frame.

They are operated toollessly using a knurled handle.

The quarter turn latch always consists of a 1/4 turn lock, retaining washer and lock bottom part.Technical data:Maximum tractive force 1300 N.Assembly:A hole of 8 mm is drilled through the cover, the bolt with cross pin are pushed through and secured to the retaining washer from the rear. A 13 mm centre hole is drilled in the frame, with two mounting holes which depend on the hole pattern in the bottom part.Accessory:Retaining washers 05592-51.
Lock bottom part 05592-52.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05592-50_RK Quarter turn latches, with knurled head

246 kB

Drawings

Item selection/filter

Order No.	A	L	L1	Price
05592-50-311315	0,75 - 1,50	18,15	13,15	on request
05592-50-311390	1,50 - 2,25	18,15	13,9	on request
05592-50-311465	2,25 - 3,00	18,15	14,65	on request
05592-50-311540	3,00 - 3,75	20,4	15,4	on request
05592-50-311615	3,75 - 4,50	20,4	16,15	on request
05592-50-311690	4,50 - 5,25	20,4	16,9	on request
05592-50-311765	5,25 - 6,00	22,65	17,65	on request
05592-50-311840	6,00 - 6,75	22,65	18,4	on request
05592-50-311915	6,75 - 7,50	22,65	19,15	on request
05592-50-311990	7,50 - 8,25	24,9	19,9	on request
05592-50-312065	8,25 - 9,00	24,9	20,65	on request
05592-50-312140	9,00 - 9,75	24,9	21,4	on request
05592-50-312215	9,75 - 10,50	27,15	22,15	on request
05592-50-312290	10,50 - 11,25	27,15	22,9	on request
05592-50-312365	11,25 - 12,00	27,15	23,65	on request
05592-50-312440	12,00 - 12,75	29,4	24,4	on request
05592-50-312515	12,75 - 13,50	29,4	25,15	on request
05592-50-312590	13,50 - 14,25	29,4	25,9	on request
05592-50-312665	14,25 - 15,00	31,65	26,65	on request
05592-50-312740	15.00 - 15,75	31,65	27,4	on request
05592-50-312815	15,75 - 16,50	31,65	28,15	on request
05592-50-312890	16,50 - 17,25	33,9	28,9	on request
05592-50-312965	17,25 - 18,00	33,9	29,65	on request
05592-50-313040	18,00 - 18,75	33,9	30,4	on request
05592-50-313115	18,75 - 19,50	36,15	31,15	on request
05592-50-313190	19,50 - 20,25	36,15	31,9	on request
05592-50-313265	20,25 - 21	36,15	32,65	on request
