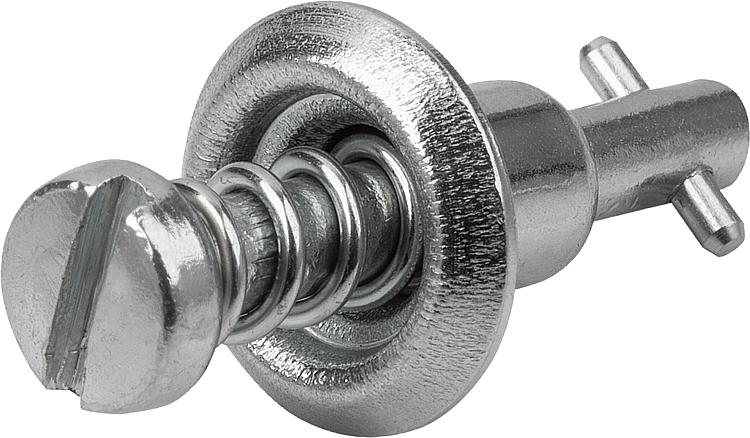

        Quarter turn latches, with slot head

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Quarter-turn latches for securely holding and locking hatches, container lids, machine covers and similar. The lock is closed or opened by turning it through 90°. This moves the cross pin in the locking bolt through a curve in the bottom part of the lock, thus tensioning the spring. At the end point of the curve there is a little recess in which the cross pin engages. The pretensioning force generated in the lock by the spring ensures that the connection is held securely despite any vibrations.

All components in the locking system (locking bolt, retaining washer and bottom part) are captive components which are joined to the cover of the frame.

They are operated through a slot.

The quarter turn latch is always made up of a 1/4 turn lock, retaining washer and lock bottom part.Technical data:Maximum tractive force 1300 N.Assembly:A hole of 8 mm is drilled through the cover, the bolt with cross pin are pushed through and secured to the retaining washer from the rear. A 13 mm centre hole is drilled in the frame, with two mounting holes which depend on the hole pattern in the bottom part.Accessory:Retaining washers 05592-51.
Lock bottom part 05592-52.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05592-50_SK Quarter turn latches, with slot head

256 kB

Drawings

Item selection/filter

Order No.	A	L	L1	Price
05592-50-211015	0,75 - 1,50	14,95	10,15	on request
05592-50-211090	1,50 - 2,25	14,95	10,9	on request
05592-50-211165	2,25 - 3,00	14,95	11,65	on request
05592-50-211240	3,00 - 3,75	17,2	12,4	on request
05592-50-211315	3,75 - 4,50	17,2	13,15	on request
05592-50-211390	4,50 - 5,25	17,2	13,9	on request
05592-50-211465	5,25 - 6,00	19,45	14,65	on request
05592-50-211540	6,00 - 6,75	19,45	15,4	on request
05592-50-211615	6,75 - 7,50	19,45	16,15	on request
05592-50-211690	7,50 - 8,25	21,7	16,9	on request
05592-50-211765	8,25 - 9,00	21,7	17,65	on request
05592-50-211840	9,00 - 9,75	21,7	18,4	on request
05592-50-211915	9,75 - 10,50	23,95	19,15	on request
05592-50-211990	10,50 - 11,25	23,95	19,9	on request
05592-50-212065	11,25 - 12,00	23,95	20,65	on request
05592-50-212140	12,00 - 12,75	26,2	21,4	on request
05592-50-212215	12,75 - 13,50	26,2	22,15	on request
05592-50-212290	13,50 - 14,25	26,2	22,9	on request
05592-50-212365	14,25 - 15,00	28,45	23,65	on request
05592-50-212440	15.00 - 15,75	28,45	24,4	on request
05592-50-212515	15,75 - 16,50	28,45	25,15	on request
05592-50-212590	16,50 - 17,25	30,7	25,9	on request
05592-50-212665	17,25 - 18,00	30,7	26,65	on request
05592-50-212740	18,00 - 18,75	30,7	27,4	on request
05592-50-212815	18,75 - 19,50	32,95	28,15	on request
05592-50-212890	19,50 - 20,25	32,95	28,9	on request
05592-50-212965	20,25 - 21	32,95	29,65	on request
