        Clamping plates for quarter-turn clamp locks

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel or stainless steel.
Nut stainless steel.Version:Housing nickel-plated or bright.
Nut bright.Note:M2 or M3 mounting screws are supplied.
Form A mounting option for plate thickness 6 to 10 mm.
Form B mounting option for plate thickness over 10 mm.Accessory:Quarter-turn clamp lock 05591 or 05591-05.
Drawing reference:

1) plate
2) quarter-turn clamp lock
3) locating pin
4) nut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05592 Clamping plates for quarter-turn clamp locks

188 kB

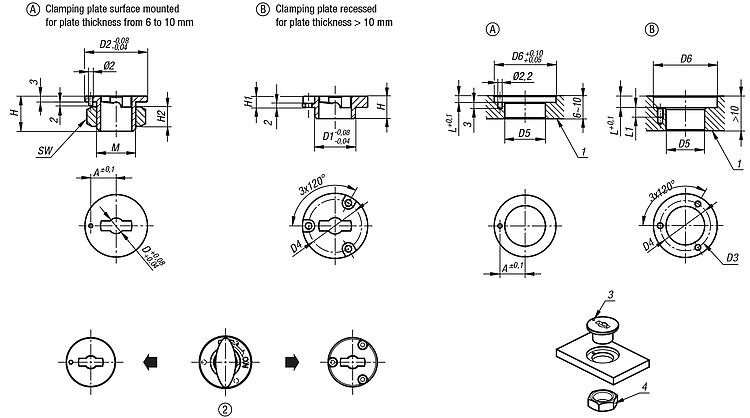

Drawings (total overview)

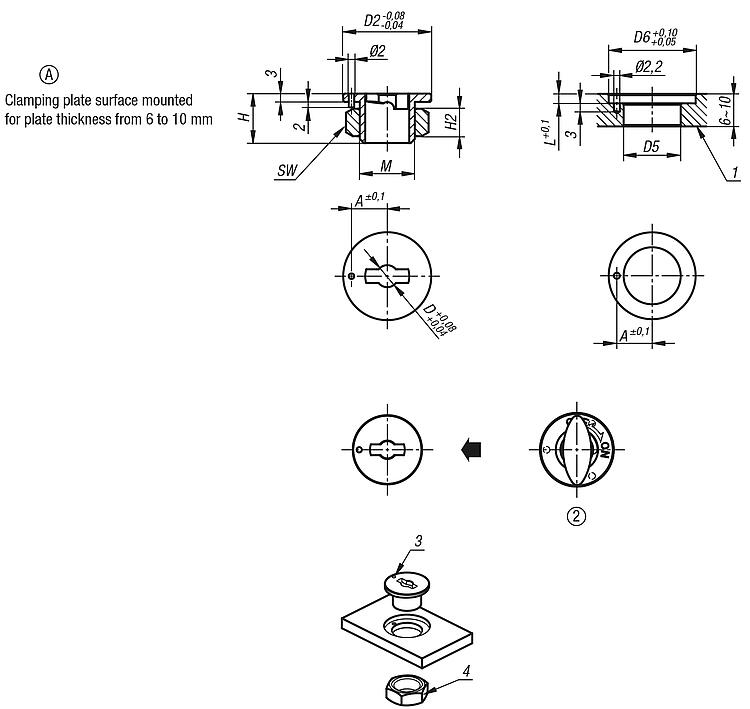

Clamping plates surface mounted for quarter-turn clamp locks

More information

Drawings

Clamping plates surface mounted for quarter-turn clamp locks

Item selection/filter

Order No.	Form	Main material	Version 2	D	D2	A	M	H2	SW	H	D5	D6	L	Price
05592-50	A	steel	superimposed	5	25	10,5	M14X1,5	8	22	16	15	25	3,5	on request
05592-80	A	steel	superimposed	8	32	13	M20X1,5	10	30	18	21	32	3,5	on request
05592-150	A	stainless steel	superimposed	5	25	10,5	M14X1,5	8	22	16	15	25	3,5	on request
05592-180	A	stainless steel	superimposed	8	32	13	M20X1,5	10	30	18	21	32	3,5	on request

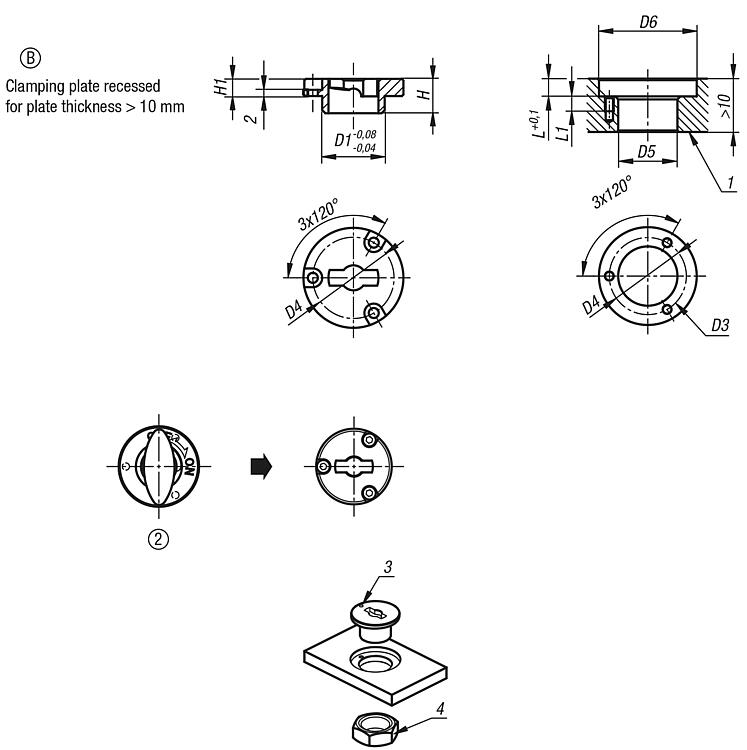

Clamping plates recessed for quarter-turn clamp locks

More information

Drawings

Clamping plates recessed for quarter-turn clamp locks

Item selection/filter

Order No.	Form	Main material	Version 2	D	D1	D2	D4	H	H1	D3 for screw to DIN 912	D5	D6	L	L1	Price
05592-501	B	steel	countersunk	5	14	25	21	9	4,5	M2	14	26	5	4	on request
05592-801	B	steel	countersunk	8	20	32	26	11	5,5	M3	20	33	6	5	on request
05592-1501	B	stainless steel	countersunk	5	14	25	21	9	4,5	M2	14	26	5	4	on request
05592-1801	B	stainless steel	countersunk	8	20	32	26	11	5,5	M3	20	33	6	5	on request
