05596-06Snap locks stainless steel with Bowden cable connection and... |
go back |
|
|
DescriptionMaterial:Stainless steel 1.4401. Version:Ground and polished or matt abrasive blasted.Note:With their countersunk grip, these snap locks are designed for flush installation in doors, hatches and covers.
They are used where inaccessible assembly spaces make it difficult to operate, or where remote actuation is required for ergonomic or safety reasons.
Available in two different sizes for different door leaf thicknesses. Additional security with lockable variants. The locks have a single key system, all locks can be opened with the same key.
The pre-tensioned grip prevents rattling.
The Bowden cable is not supplied.
Max. torque to tighten the screws: 2.4 Nm.
Form A: lockable
Form B: not lockableType of operation:When the grip is actuated, hatches, lids, covers or doors are opened remotely and invisibly with a Bowden cable.
The lock can also be actuated from the rear.Application:- Automotive industries
- Machine construction
- Boat and ship building
- Aviation and aerospace
- Motorhomes and caravans
- Medical technologyAssembly:1. Produce a mounting cutout as shown in the drawing.
2. Secure from the rear using the mounting parts supplied.
3. Connect the Bowden cable.Advantages:Actuation possible in inaccessible assembly spaces.
Ergonomically optimised actuating position possible.
Actuation possible even when safety distances are required.Accessory:Bowden cable 05596-01.Supplied withMounting bracket with M4 screws and Bowden cable holder are supplied.

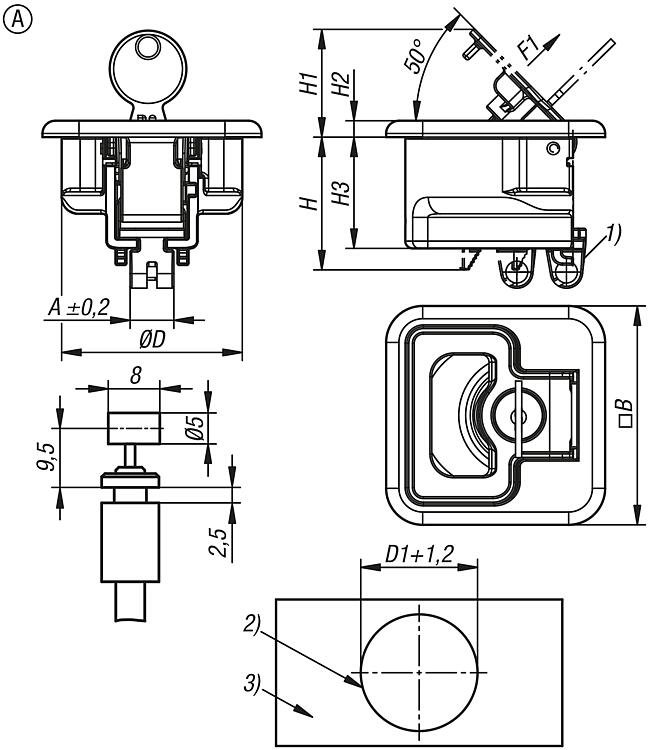

The lockable snap locks are each supplied with 2 keys.Drawing reference:1) Bowden cable connection
2) Mounting cutout
3) Door leaf
4) Mounting bracket thickness (see H4 in table)
5) Grip
6) Bowden cable DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

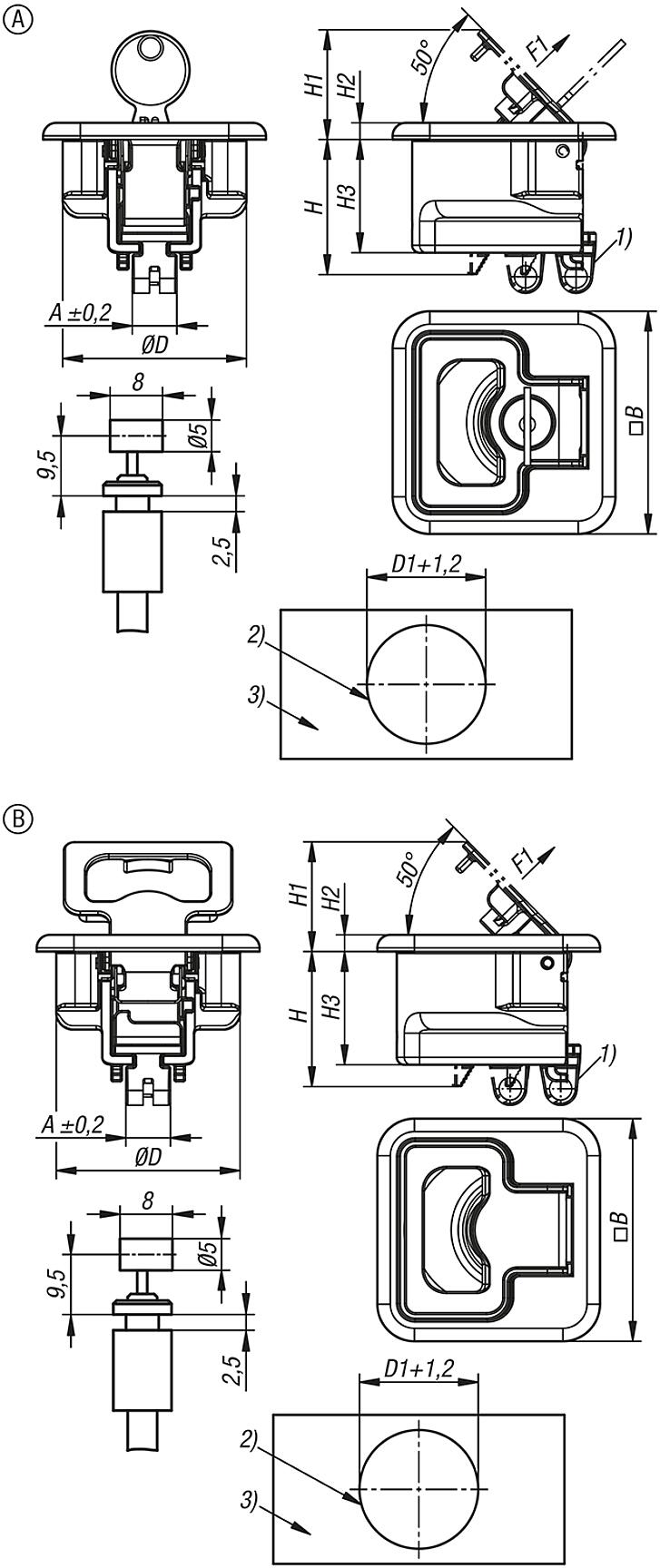

Drawings (total overview) |

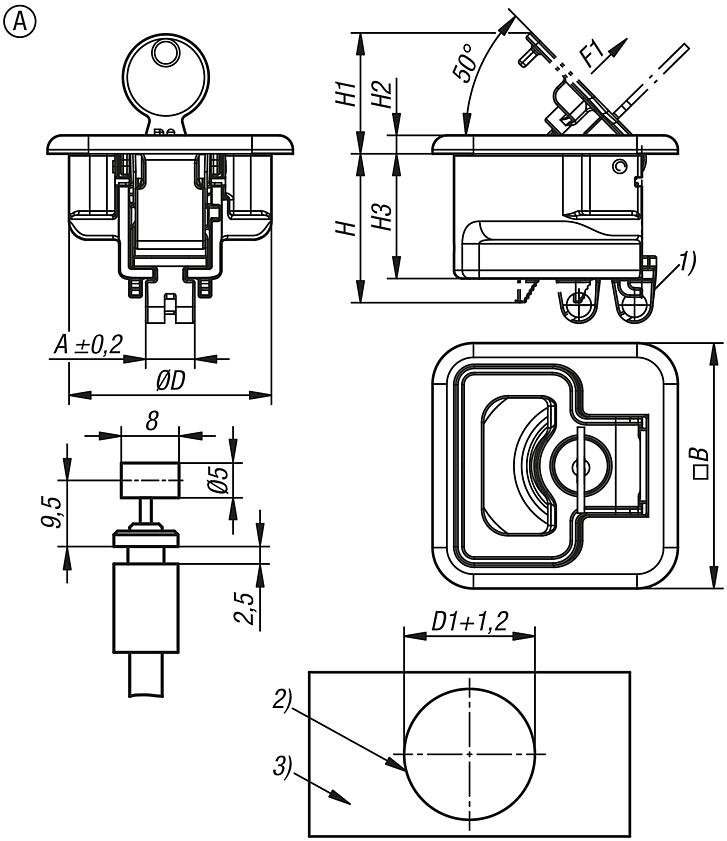

Snap locks stainless steel with Bowden cable connection and grip, fold-down, Form A |
More information |
| Order No. | Form | Form definition | Surface finish
body | A
| B | D | D1 | H | H1 | H2 | H3 | H4 | Traction
force
F1 N | Temperature range
°C
| S = Door thickness
in mm | Screws | CAD | Acc. | Price | Order |
|---|
| 05596-06-1102356044 | A | lockable | polished | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 23 | 100 | - | 2-12 | M4x6 |  | | on request | | | 05596-06-1112356044 | A | lockable | polished | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 12,5 | 100 | - | 12-22 | M4x20 | | | on request | | | 05596-06-1102356055 | A | lockable | matt blasted | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 23 | 100 | - | 2-12 | M4x6 | | | on request | | | 05596-06-1112356055 | A | lockable | matt blasted | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 12,5 | 100 | - | 12-22 | M4x20 | | | on request | |
|

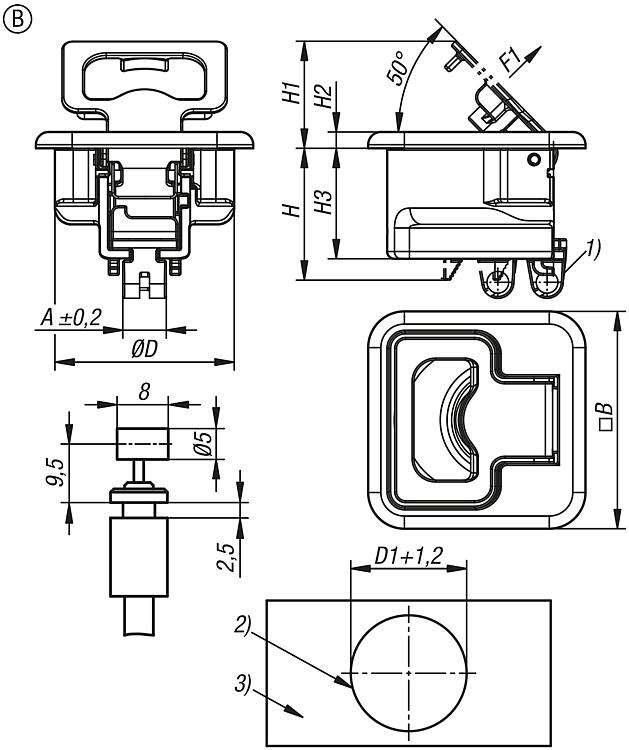

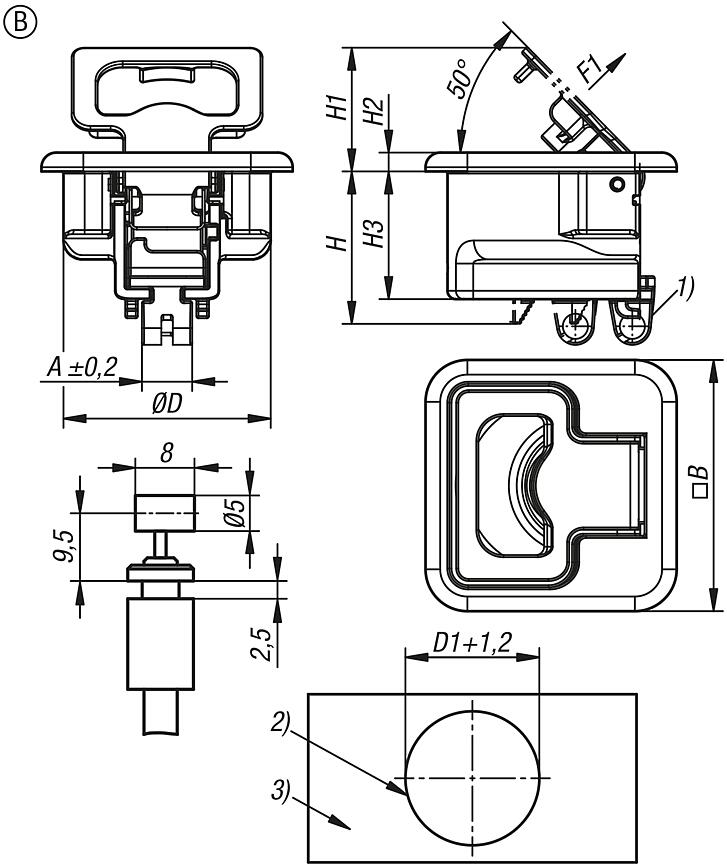

Snap locks stainless steel with Bowden cable connection and grip, fold-down, Form B |
More information |
| Order No. | Form | Form definition | Surface finish
body | A
| B | D | D1 | H | H1 | H2 | H3 | H4 | Traction
force
F1 N | Temperature range
°C
| S = Door thickness
in mm | Screws | CAD | Acc. | Price | Order |
|---|
| 05596-06-1002356044 | B | not lockable | polished | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 23 | 100 | - | 2-12 | M4x6 | | | on request | | | 05596-06-1012356044 | B | not lockable | polished | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 12,5 | 100 | - | 12-22 | M4x20 | | | on request | | | 05596-06-1002356055 | B | not lockable | matt blasted | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 23 | 100 | - | 2-12 | M4x6 | | | on request | | | 05596-06-1012356055 | B | not lockable | matt blasted | 10 | 60 | 49,5 | 50 | 35,9 | 26,6 | 4,5 | 30,5 | 12,5 | 100 | - | 12-22 | M4x20 | | | on request | |
|
