        Snap locks, plastic with knob

Item description/product images

DescriptionMaterial:PC/ABS.Version:Black, chromed, white or beige.Note:The push-in knob enables these snap locks to be installed flush into doors, hatches and panels.

Flammability: listed UL94-HB

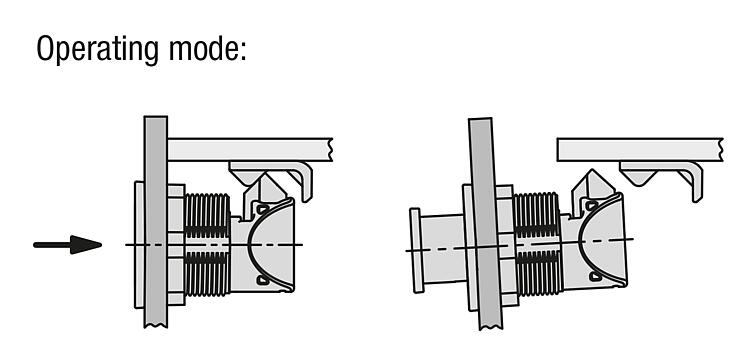

Max. torque to tighten the nut: 4.2 Nm.Type of operation:When not actuated, the knob is flush with the housing. When the knob is pressed, it springs out and can be used to pull the door open. The door latches automatically when pushed shut. Press the knob in again to make it flush with the housing.Application:- Automobile industry
- Medical technology
- Machine construction
- Boat and ship building
- Aviation and aerospace
- Furniture industryAssembly:1. Produce a mounting cutout as shown in the drawing.
2. Attach the catch plate.
3. Secure from the rear using the mounting nut.Supplied withMounting nut and catch plate.
M5 screws for the catch plate are not supplied. Drawing reference:

1) Knob
2) Guide pin to prevent twisting
3) Door leaf
4) Frame
5) Mounting nut
6) Housing
7) Catch plate
8) For guide pin (optional)
9) Cutout to prevent twisting (optional)
10) Mounting cutout

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05596-50 Snap locks, plastic with knob

218 kB

Drawings

Item selection/filter

Order No.	Main colour	A	B	B1	B2	B3	B4	D	D1	D2	H	H1	H2	Price
05596-50-247400	black	28	40	26,5	12	40	5,2	M32x1,5	32	7	47	36,6	17	on request
05596-50-247401	chromed	28	40	26,5	12	40	5,2	M32x1,5	32	7	47	36,6	17	on request
05596-50-247402	white	28	40	26,5	12	40	5,2	M32x1,5	32	7	47	36,6	17	on request
05596-50-247403	beige	28	40	26,5	12	40	5,2	M32x1,5	32	7	47	36,6	17	on request

Order No.	Main colour	H3	H4	H5	H6	L	L1	L2	L3	L4	Max. operating load in N	Temperature range °C	S = Door thickness in mm	Price
05596-50-247400	black	3,2	26	10	30,2	37,55	26,5	7,2	15	18,5	310	-30 to 60	1,2-19	on request
05596-50-247401	chromed	3,2	26	10	30,2	37,55	26,5	7,2	15	18,5	310	-30 to 60	1,2-19	on request
05596-50-247402	white	3,2	26	10	30,2	37,55	26,5	7,2	15	18,5	310	-30 to 60	1,2-19	on request
05596-50-247403	beige	3,2	26	10	30,2	37,55	26,5	7,2	15	18,5	310	-30 to 60	1,2-19	on request
