        Toggle clamps heavy duty vertical

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidised.
Thrust spindle and nuts phosphated.
Hinge pins and hinge bushes case-hardened.
Plastic grip oil-resistant.Note:Oil all joints regularly.Drawing reference:

1) adjustable clamp arm guide

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05400 Toggle clamps heavy duty vertical

161 kB

Technical Information for Toggle clamps

127 kB

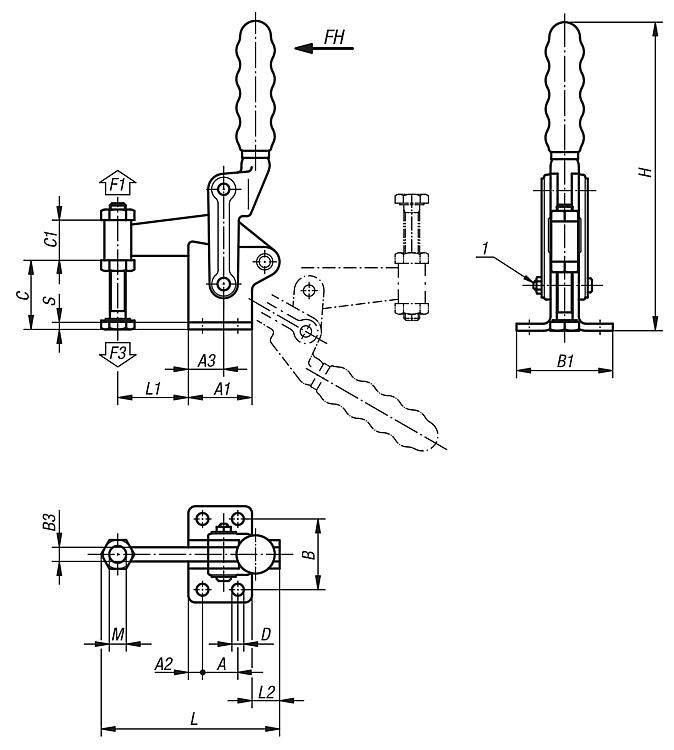

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Clamping force F3 N	Matching plastic grip	Price
05400-02	180°	120°	340	6000	1400	05520-02	on request
05400-04	180°	125°	500	8000	1400	05520-04	on request
05400-06	195°	130°	500	15000	1850	05520-06	on request

Order No.	A	A1	A2	A3	B	B1	B3	C	C1	D	H	L	L1	L2	M	S	Price
05400-02	25	45	10	25	50	68	10	45	30	8,3	215	124	50	20	M12x100	5	on request
05400-04	30	51	10	25	60	86,5	12	58	30	8,3	250	144	60	23	M12x100	6	on request
05400-06	40	64	12	40	75	104	16	70	38	10,3	295	188	75	37	M16x150	8	on request
