Palm grips similar to DIN 6335 metal parts stainless-steel
 06181

Palm grips similar to DIN 6335 metal parts stainless-steel

 go back

Item description/product images
DescriptionMaterial:

Thermoset PF 31, black.
Metal parts stainless steel 1.4301.

Version:High-gloss polished, black.Drawing reference:
Form K: tapped bush
Form L: external thread
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06181 Palm grips similar to DIN 6335 meatl parts stainless-steel 289 kB

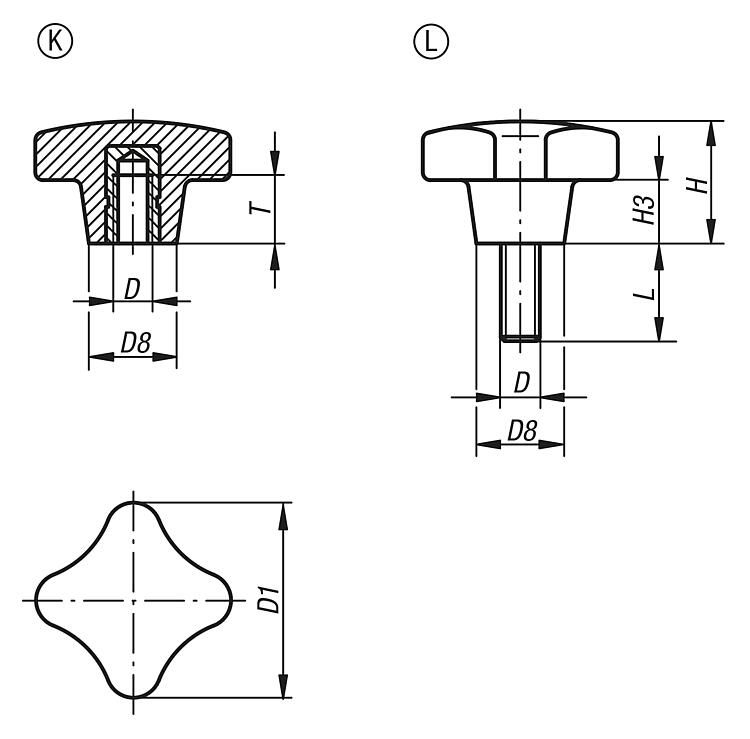

Drawings (total overview)

Palm grips similar to DIN 6335 metal parts stainless-steel

Palm grips metal parts stainless steel Form K with tapped bush

 More information

Drawings
Palm grips metal parts stainless steel Form K with tapped bush

Item selection/filter


  •
  • K

  •
  • stainless steel

  •
  • M5
  • M6
  • M8
  • M10
  • M12

  •
  • 25
  • 32
  • 40
  • 50
  • 63

  •
  • 12
  • 14
  • 18
  • 22
  • 26

  •
  • 16
  • 20
  • 25
  • 32
  • 40

  •
  • 8
  • 10
  • 13
  • 20
  • 25

  •
  • 9,5
  • 12
  • 14
  • 18
  • 22

Reset
Order No.Form

Component
material		DD1D8HH3TCADAcc.PriceOrder
06181-22505Kstainless steelM525121689,5  on request
06181-23206Kstainless steelM63214201012  on request
06181-24008Kstainless steelM84018251314  on request
06181-25010Kstainless steelM105022322018  on request
06181-26312Kstainless steelM126326402522  on request

Palm grips metal parts stainless-steel Form L with external thread

 More information

Drawings
Palm grips metal parts stainless-steel Form L with external thread

Item selection/filter


  •
  • L

  •
  • stainless steel

  •
  • M5
  • M6
  • M8

  •
  • 25
  • 32
  • 40

  •
  • 12
  • 14
  • 18

  •
  • 16
  • 20
  • 25

  •
  • 8
  • 10
  • 13

  •
  • 15
  • 20
  • 25
  • 30
  • 40
  • 50

Reset
Order No.Form

Component
material		DD1D8HH3LCADAcc.PriceOrder
06181-52505X15Lstainless steelM5251216815  on request
06181-52505X20Lstainless steelM5251216820  on request
06181-53206X15Lstainless steelM63214201015  on request
06181-53206X20Lstainless steelM63214201020  on request
06181-53206X25Lstainless steelM63214201025  on request
06181-53206X30Lstainless steelM63214201030  on request
06181-53206X40Lstainless steelM63214201040  on request
06181-53206X50Lstainless steelM63214201050  on request
06181-54008X20Lstainless steelM84018251320  on request
06181-54008X25Lstainless steelM84018251325  on request
06181-54008X30Lstainless steelM84018251330  on request
06181-54008X40Lstainless steelM84018251340  on request
06181-54008X50Lstainless steelM84018251350  on request
