Palm grips metal parts stainless-steel Form L with external thread
06181_L

Palm grips metal parts stainless-steel Form L with external...

go back

Item description/product images

DescriptionMaterial:

Thermoset PF 31, black.
Metal parts stainless steel 1.4301.

Version:High-gloss polished, black.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 06181_L Palm grips metal parts stainless-steel Form L with external thread 130 kB

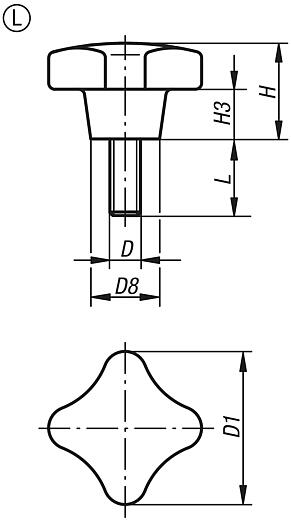

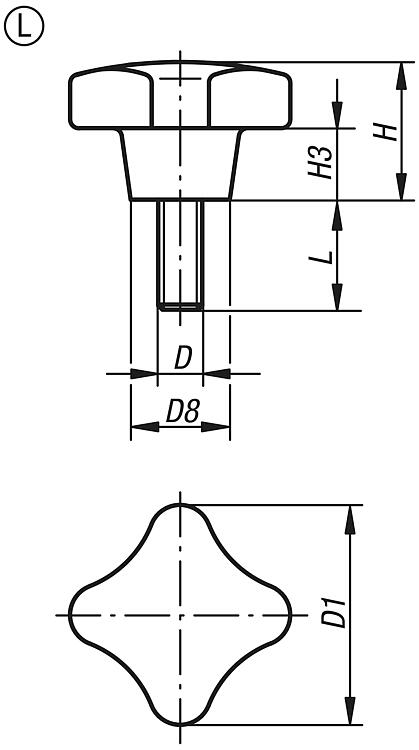

Drawings

Palm grips metal parts stainless-steel Form L with external thread

Item selection/filter

Order No.Form

Component
material
DD1D8HH3LCADAcc.PriceOrder
06181-52505X15Lstainless steelM5251216815 on request
06181-52505X20Lstainless steelM5251216820 on request
06181-53206X15Lstainless steelM63214201015 on request
06181-53206X20Lstainless steelM63214201020 on request
06181-53206X25Lstainless steelM63214201025 on request
06181-53206X30Lstainless steelM63214201030 on request
06181-53206X40Lstainless steelM63214201040 on request
06181-53206X50Lstainless steelM63214201050 on request
06181-54008X20Lstainless steelM84018251320 on request
06181-54008X25Lstainless steelM84018251325 on request
06181-54008X30Lstainless steelM84018251330 on request
06181-54008X40Lstainless steelM84018251340 on request
06181-54008X50Lstainless steelM84018251350 on request
