Wing grips "Miniwing" with internal thread
 06652_IG

Wing grips "Miniwing" with internal thread

 go back

Item description/product images
DescriptionMaterial:

Thermoplastic.
Bushes brass, steel 5.8 or stainless steel 1.4305.

Version:Grip black grey.
Steel trivalent blue passivated.
Stainless steel bright.Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06652_IG Wing grips "Miniwing" with internal thread 221 kB

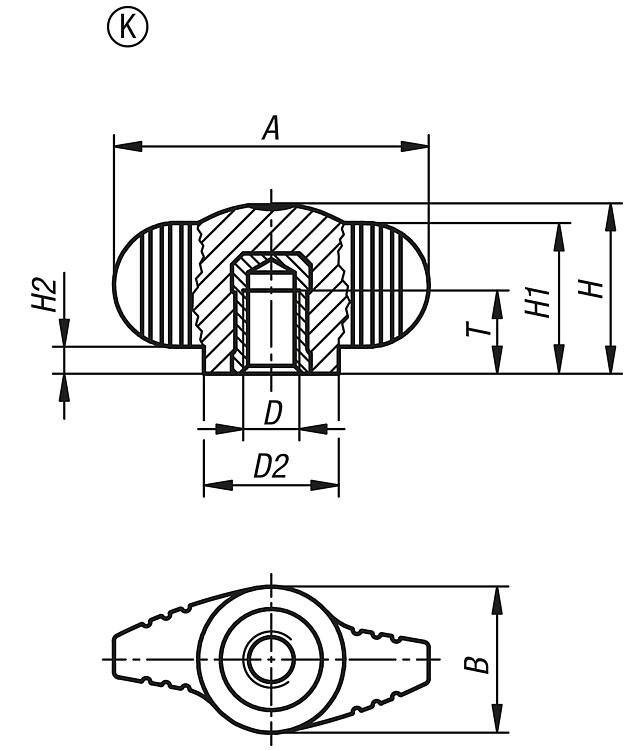

Drawings

Wing grips "Miniwing" with internal thread

Item selection/filter
Order No.

FormComponent
material		ABDD2HH1H2TCADAcc.PriceOrder
06652-004Kbrass2813M4121513,32,36 on request
06652-005Kbrass2813M5121513,32,38 on request
06652-006Kbrass2813M6121513,32,38 on request
06652-806Ksteel4016M614,62119412 on request
06652-808Ksteel4016M814,62119412 on request
06652-0004Kstainless steel2813M4121513,32,36 on request
06652-0005Kstainless steel2813M5121513,32,38 on request
06652-0006Kstainless steel2813M6121513,32,38 on request
06652-0806Kstainless steel4016M614,62119412 on request
06652-0808Kstainless steel4016M814,62119412 on request
